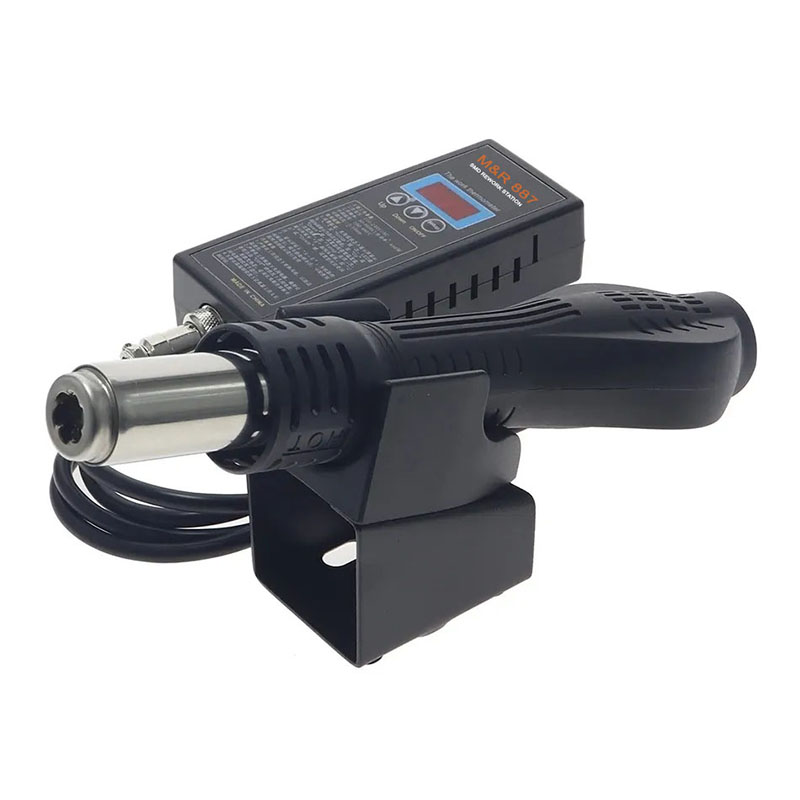

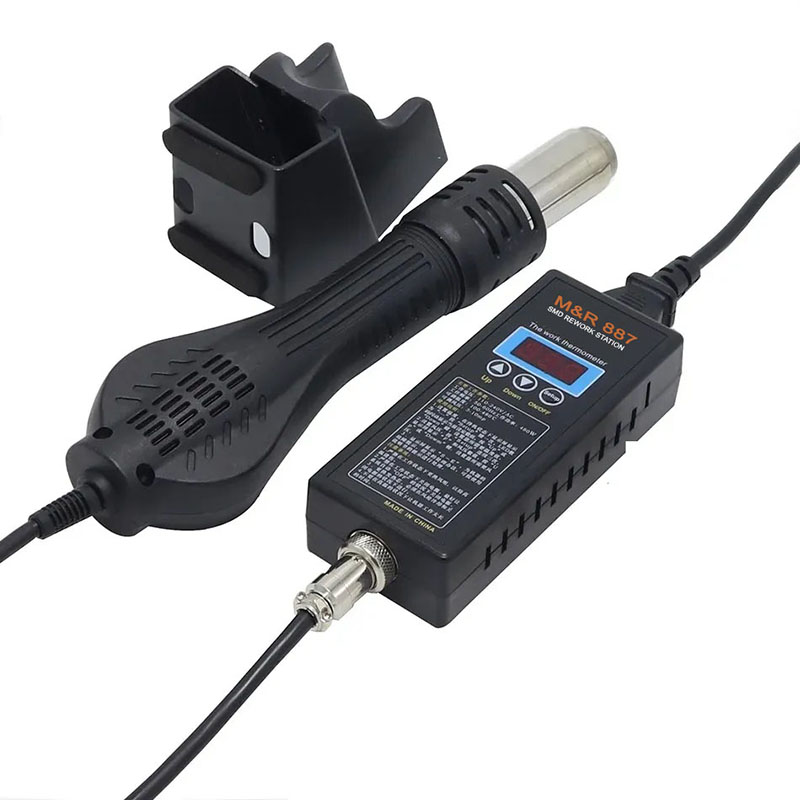

M&R 887 Digital Hot Air Gun SMD Rework Station

M&R 887 Digital Hot Air Gun SMD Rework Station

The M&R 887 Digital Hot Air Gun SMD Rework Station is a high-performance tool designed for precision soldering and desoldering of surface-mount devices (SMDs). Equipped with a digital LED display, it offers accurate temperature control within a range of 100°C to 480°C. The station features a turbine dryer delivering up to 120 liters per minute of airflow for efficient heat distribution. With microcomputer control, it ensures quick warming and stable operation, making it an excellent choice for professional electronics repair and hobbyist projects.

Features:

• Comfortable portable handheld and the Digital LED display.
• Microcomputer control, warming up quickly.
• Adjust the airflow and temperature control keypad.
• Refer to the instructions included with three kinds of nozzles ( big, medium, and small ) replacement parts.
• When the temperature is less than 70°C, can stop rotation automatically.
• High-quality resistance good for long service life.
• Safe solder QFP , PLCC , BGA and other temperature-sensitive components.
• Intelligent detection and cool airflow features.
• High-quality silicone body heat good for extend life and save power.

Specifications:

• Input voltage:
  • 220VAC ± 10% 50Hz
  • 110VAC ± 10% 60Hz
• Power: 480W
• Display availability: yes
• Temperature and airflow settings: 100°C ∼ 500°C / Air Volume F01-F10
• Temperature stability: ± 5%
• Air flow type: Brushless fan soft air
• Airflow rate: max. 120 liters / minute

Application:

• SMD Component Rework: Safe soldering/desoldering of SOIC, CHIP, QFP, PLCC, BGA packages.
• Heat-Shrink Tubing: Precise, uniform shrink of insulation tubing.
• Surface-Mount Adhesive Curing: Localized heating for UV/thermoset adhesives.
• Paint/Coating Drying: Gentle, controlled heat for quick drying of conformal coatings.

Precautions for use:

• When using this product, it is necessary to have a good grounding wire.
• This product is a high-temperature heating platform. Do not touch the heating element with your hands during use to avoid burns.
• If not used for a long time, please be sure to turn off the system power to avoid unnecessary losses.
• It is strictly prohibited to plug or unplug the handle when powered on to prevent damage to the machine and electric shock.
• If there are flammable and explosive materials in the use environment, it is strictly prohibited to use this product. To avoid fire and property damage.

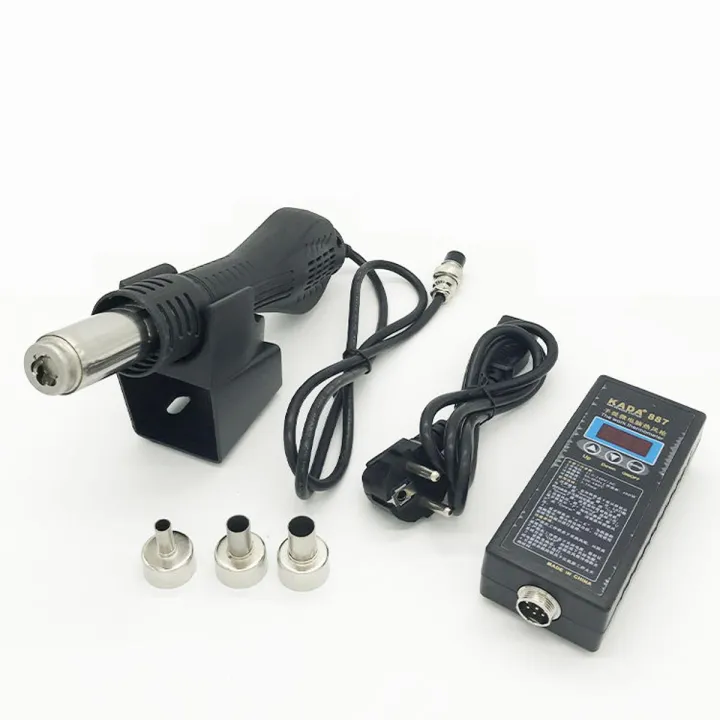

Package Includes:

• 1 Pcs Gun station 887
• 1 Pcs Heat Gun
• 3 Pcs Nozzle
• 1 Pcs Power Cable
• 1 Pcs Station holder
• 1 Pcs Manual Instruction

Data Sheet:

M&R 887 Digital Hot Air Gun
