Features
- This machine has a fast protection speed. It can protect the overcurrent and short circuit of the load in time and cut off the output. After the fault is removed, it will automatically resume normal operation.
- Large-screen LCD display current (four-digit display) The voltage value is more accurate and clearer.
- Turnable 2A pointer display (LCD display and pointer display at the same time), continuous power, pointer meter with LED Light illumination operation is more convenient and clear.
- Independent 5V 2A USB charging with current detection.
- 5V lock function, USB output when 5V lock, voltage can be adjusted and synchronized with display.
- One-button PW boot function: When 5V is locked, the USB voltage is adjusted to about 4.2V, and a one-button boot Line is used (you need to configure it yourself), press the PW button to achieve one-button boot.
- It has mobile phone signal test function and voltage test function.
Specifications:
|
Input Voltage:
|
AC 220V ± 10% 50Hz
|
|
Output Voltage:
|
DC 0-15V, continuously adjustable
|
|
Output Current:
|
DC 0-5A, 2A pointer display conversion
|
|
Display Category:
|
LCD display and pointer swing finger
|
|
Display Accuracy:
|
± 1%
|
|
Voltage Stability:
|
≤ 0.05% +1mV
|
|
Current Stability:
|
≤ 0.1% +10mA
|
|
Cooling Method:
|
Intelligent temperature control fan forced air cooling
|
|
Working Environment:
|
-10℃ ~ 40℃ , Relative humidity ＜ 80%
|
|
Storage Environment:
|
-20℃ ~ 80℃ , Relative humidity ＜ 80%
|
|
Product Size:
|
195 x 170 x 150mm (excluding protruding parts)
|
Package List:
- 1 x Regulated Power Supply

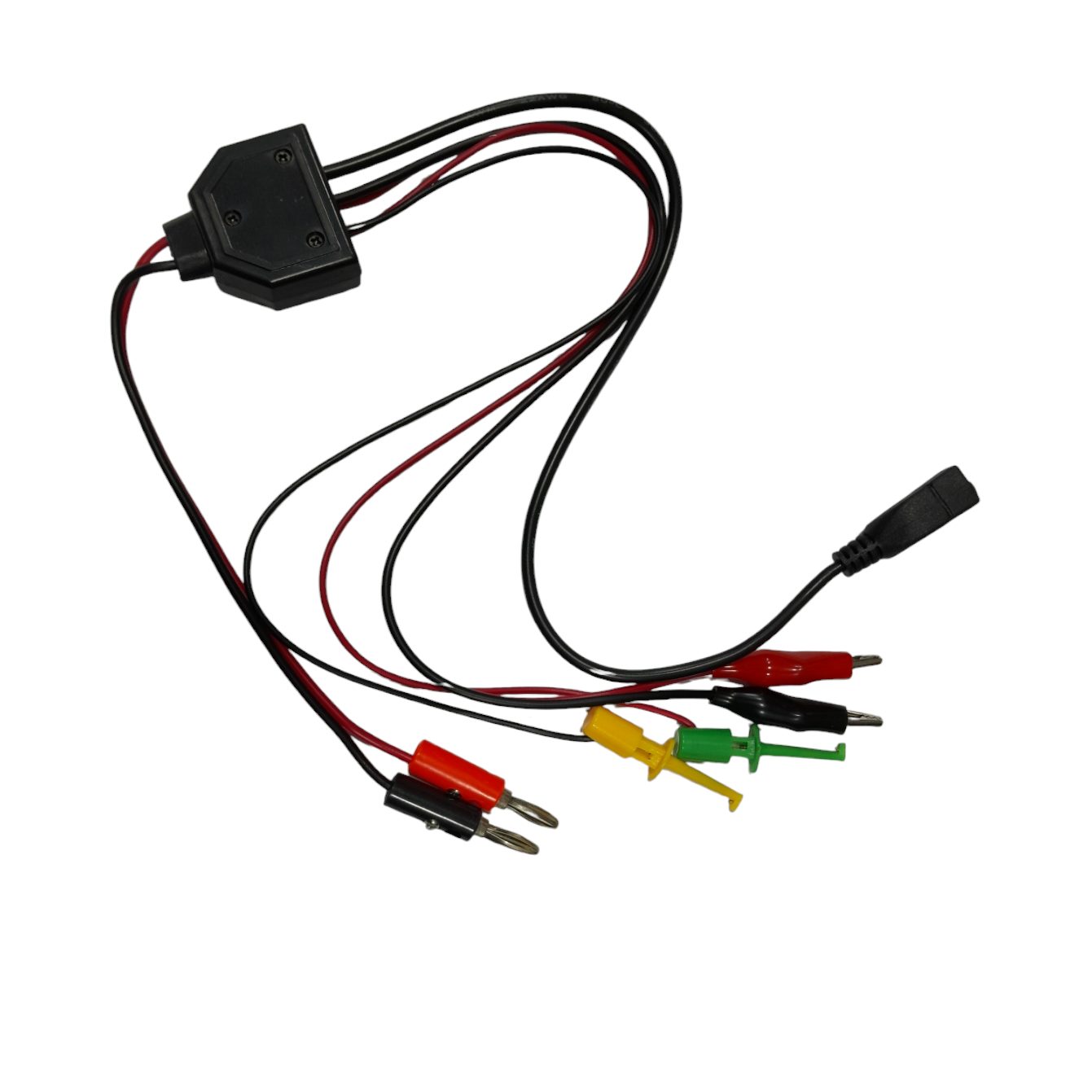

- 1 x Power Test Wire

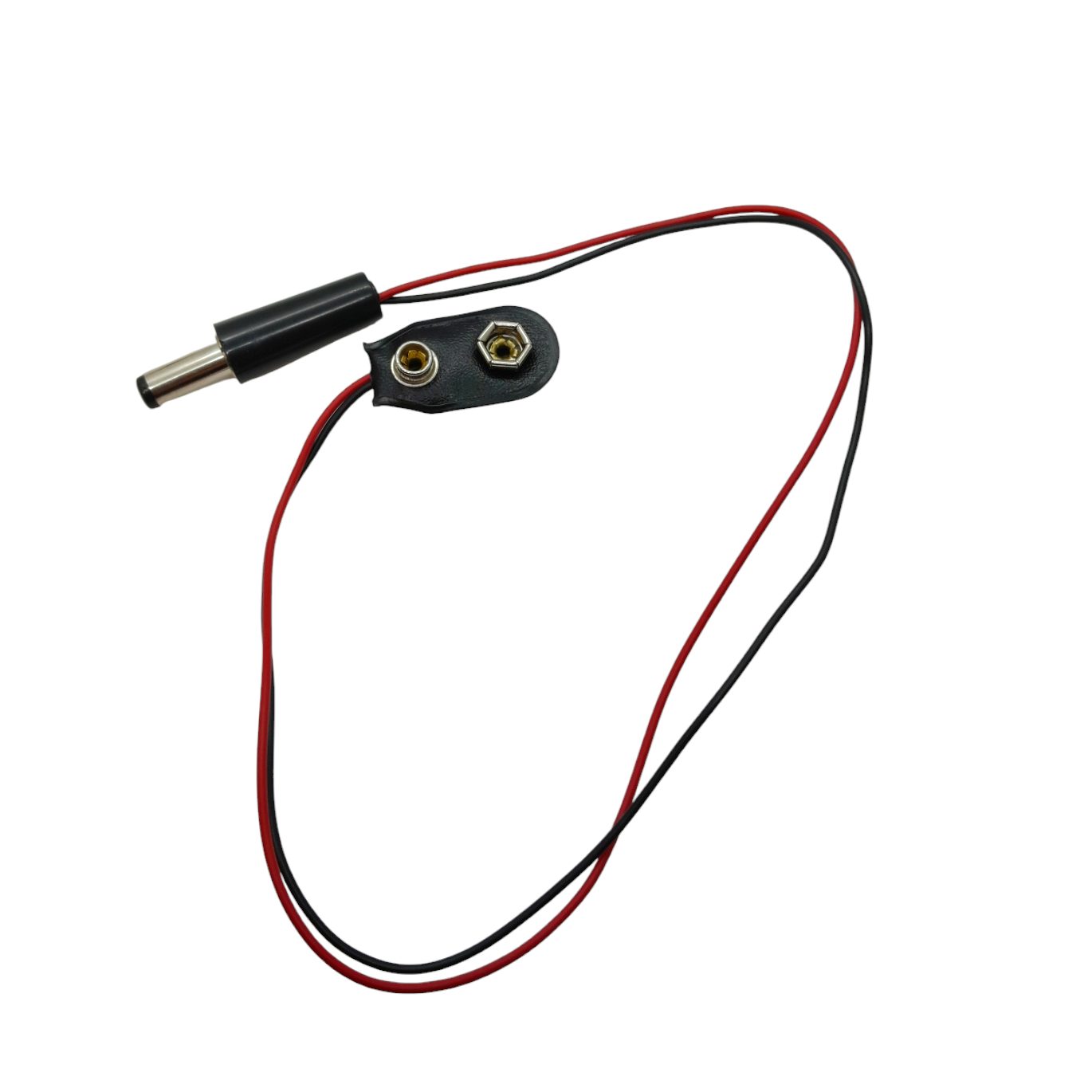

- 1 x Battery Adapter Wire (35cm)

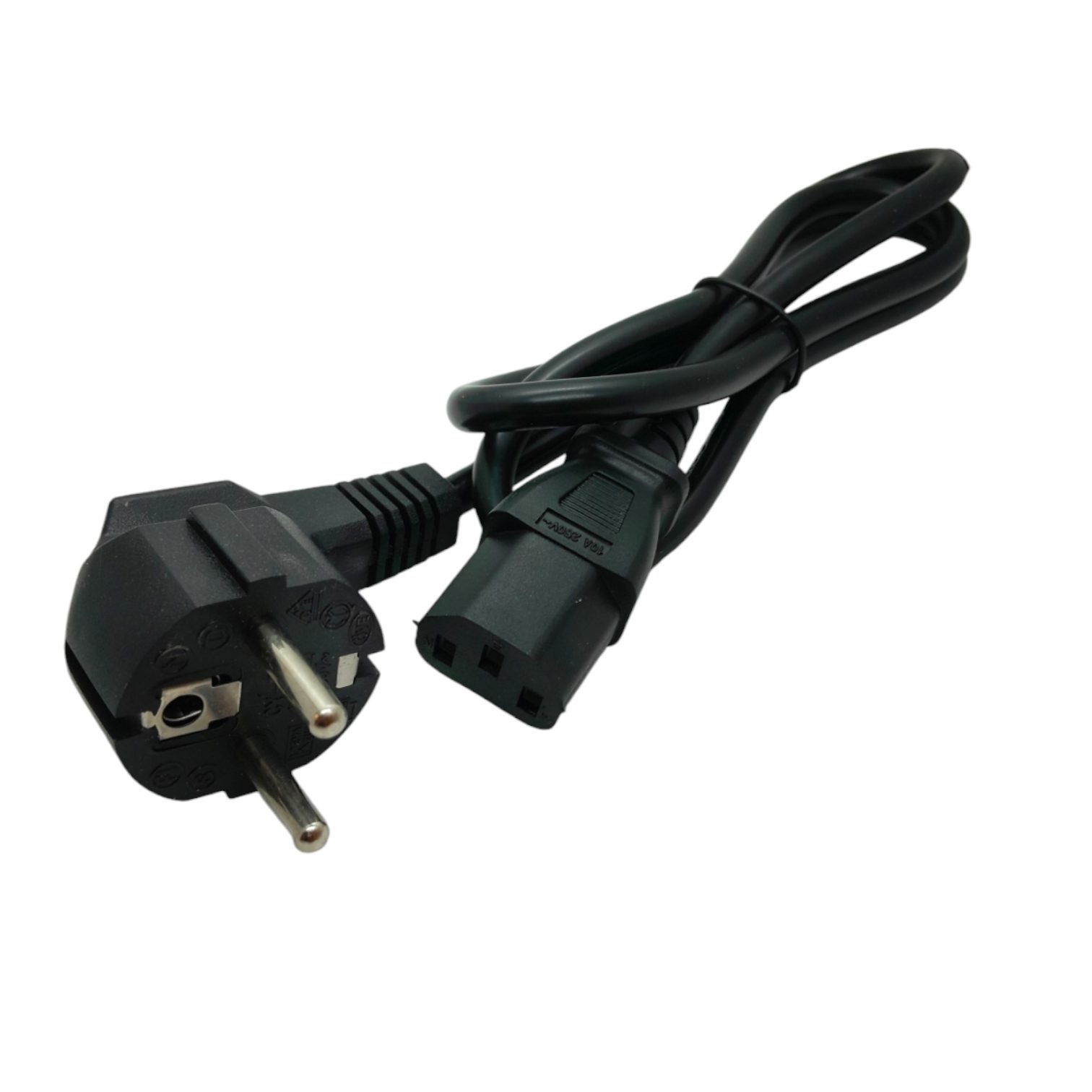

- 1 x Plug Power Cord (90cm)
- 1 x User Manual
