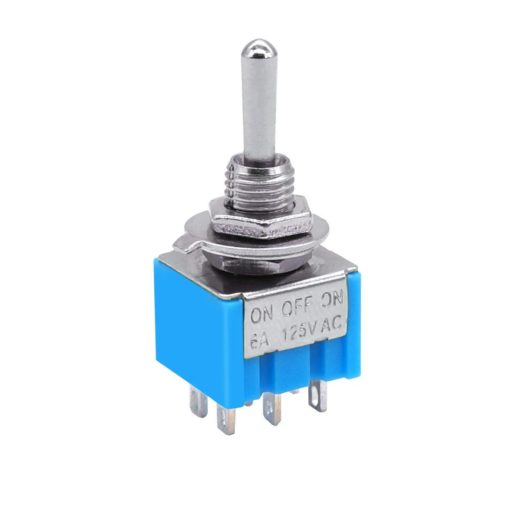

MTS-203 Toggle Switch ON-OFF-ON 6A 125VAC 6 Pin

MTS-203 Toggle Switch ON-OFF-ON 6A 125VAC 6 Pin

The MTS-203 Toggle Switch ON-OFF-ON 6A 125VAC 6 Pin is a durable and versatile switch designed for a wide range of electrical applications. Featuring a three-position operation—ON, OFF, and ON—it allows for control of dual circuits or reversible current flow, making it ideal for motors, power tools, and DIY electronics. With a 6-pin configuration, it offers secure and stable connections for complex wiring setups. Rated at 6A and 125VAC, this toggle switch ensures reliable performance under moderate loads. Its sturdy metal lever and compact body make it easy to mount on panels or enclosures, ensuring long-lasting and dependable use.

Features:

• Three-position functionality: ON-OFF-ON for versatile control.
• 6-pin configuration for dual circuit or DPDT (Double Pole Double Throw) use.
• Rated for 6A at 125VAC, suitable for moderate power loads.
• Durable metal toggle lever for reliable switching.

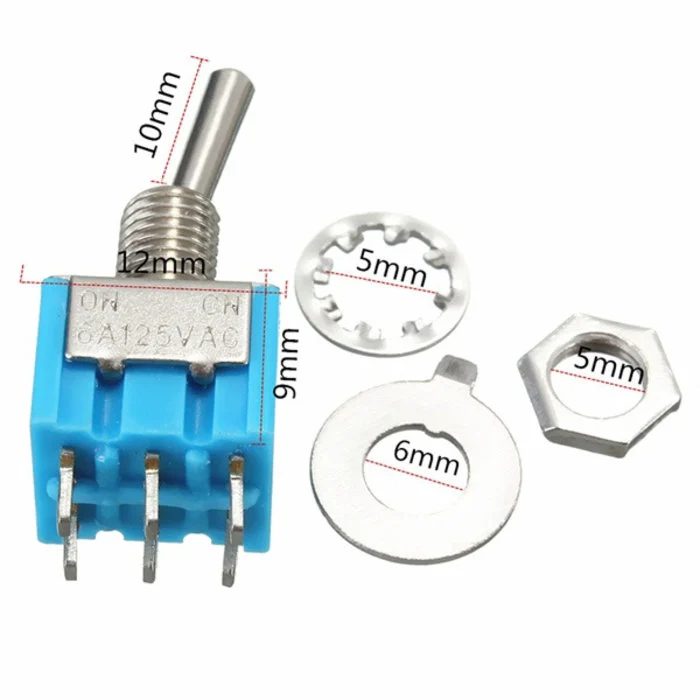

• Panel mount design with secure nut and washer fastening.
• Compact and easy to install in various enclosures.
• Mechanical life rated for thousands of switching cycles.
• Ideal for AC applications, motor direction control, and DIY projects.

Specifications:

• Switch Type: Toggle switch
• Model: MTS-203
• Pin Configuration: Double Pole Double Throw (DPDT)
• Function: ON-OFF-ON  (3 Positions)
• Mounting Type: Panel mount
• Terminal Type: Solder lug

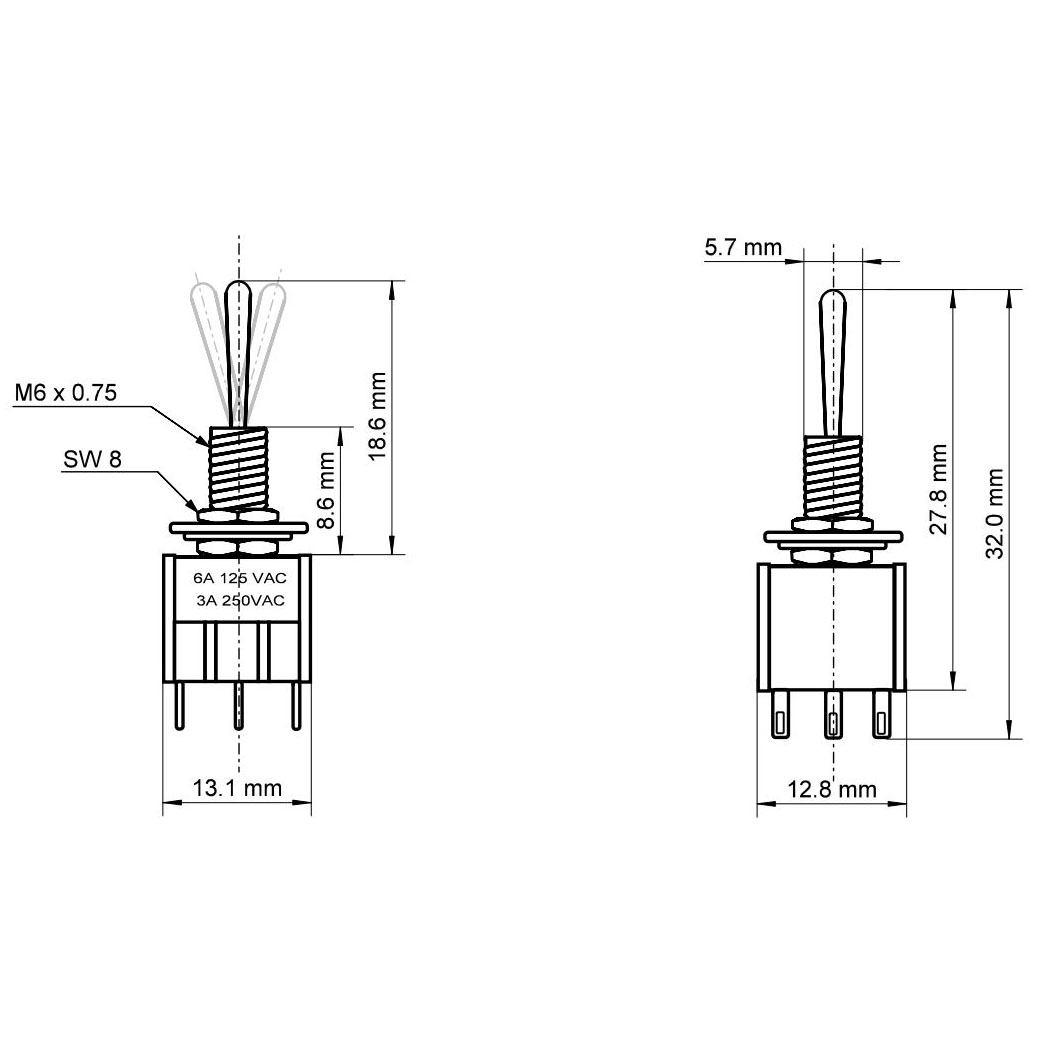

• Mounting Hole Diameter: 6mm
• No. Of Pins: 6 Pin
• Rated Current: 6A At 125VAC
• Contact Resistance: ≤ 20mΩ (initial)
• Insulation Resistance: ≥ 1000MΩ at 500VDC
• Dielectric Strength: 1500VAC for 1 minute
• Mechanical Life: ≥ 10,000 cycles
• Mounting Type: Panel mount with threaded bushing
• Material (Lever): Plastic and Metal
• Operating Temperature: -25°C to +85°C

Pin Configuration:
