0603 Multilayer Ceramic Capacitors MLCC 1uF 16V X5R SMD/SMTSMD Capacitor
The 0603 1µF 16V X5R Multilayer Ceramic Capacitor (MLCC) is a compact surface-mount capacitor designed for a wide range of electronic applications. Utilizing X5R dielectric technology, it provides stable capacitance over a broad temperature range while maintaining excellent reliability and low impedance characteristics. Its small package size makes it ideal for high-density PCB layouts and modern electronic devices.
This capacitor is widely used in power management circuits, microcontroller systems, communication devices, consumer electronics, and industrial equipment. It serves as an effective decoupling and filtering component, helping to reduce noise, stabilize voltage rails, and improve overall circuit performance. The multilayer ceramic construction offers high reliability, long service life, and excellent high-frequency performance.
Features:
- Multilayer ceramic capacitor technology.
- X5R dielectric material.
- Low impedance characteristics.
- Excellent high-frequency performance.
- Suitable for automated SMT assembly.
- Reliable long-term operation.
- Good temperature stability.
- Ideal for space-constrained designs.
- Low leakage current.
- RoHS-compliant construction.
- Suitable for filtering and decoupling applications.
Specifications :
| Parameter | Value |
|---|---|
| Capacitance | 1µF |
| Rated Voltage | 16V |
| Dielectric Type | X5R |

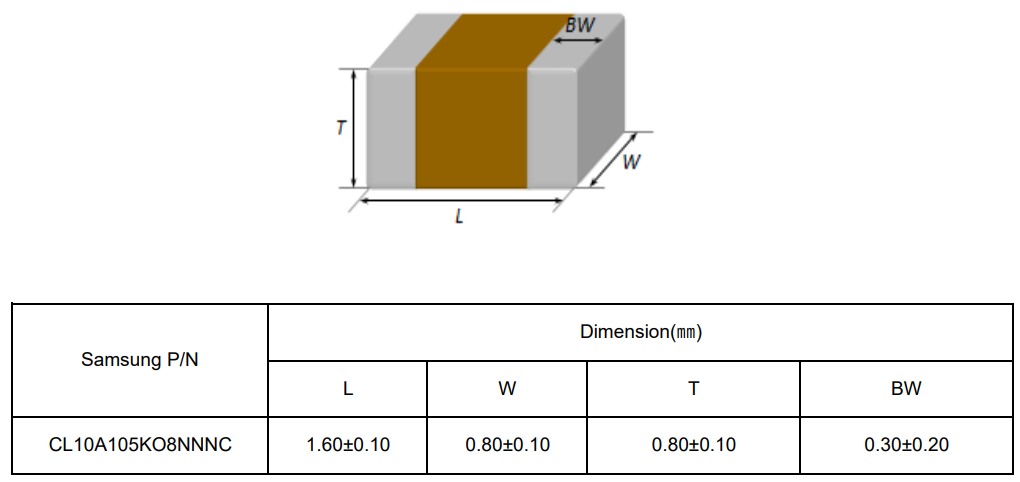

| Package Dimensions | 1.6mm × 0.8mm |
| Mounting Type | Surface Mount (SMD/SMT) |
| Capacitor Type | Multilayer Ceramic Capacitor (MLCC) |
| Temperature Characteristic | X5R |
| Capacitance Tolerance | ±10% |
| Operating Temperature Range | -55°C to +85°C |
| Terminal Material | Nickel Barrier with Tin Plating |
| Polarity | Non-Polarized |
Applications:
- Power supply decoupling.
- Bypass capacitors.
- Voltage rail stabilization.
- DC-DC converter filtering.
- Microcontroller power filtering.
- Communication equipment.
- Consumer electronics.
- Industrial control systems.
- Embedded systems.
- Signal coupling circuits.
- Noise suppression.
- General-purpose electronic designs.
Package Included:
- 0603 Multilayer Ceramic Capacitors MLCC 1uF 16V X5R SMD/SMT.
