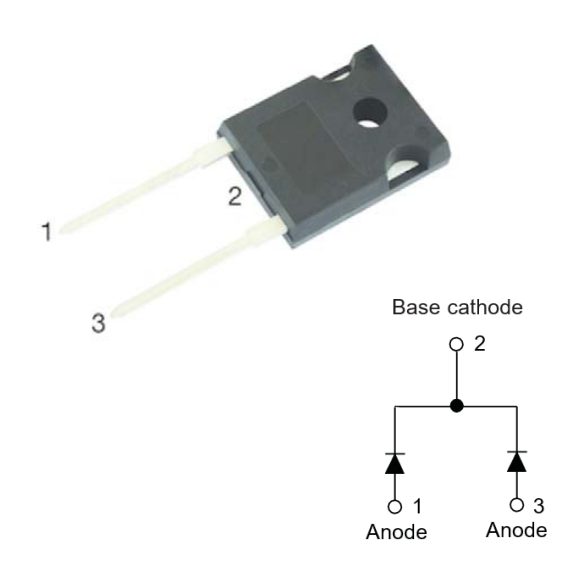

Pin Layout
Pin 2 (Screw Pin) : Common cathode
Specifications
| Product Attribute | Attribute Value |
| Product Category: | Rectifiers |
| Mounting Style: | Through Hole |
| Package/Case: | TO-247 |
| Vr – Reverse Voltage: | 600 V |
| If – Forward Current: | 30 A |
| Type: | Ultra Fast Recovery Rectifiers |
| Configuration: | Dual Common Cathode |
| Vf – Forward Voltage: | 1.5 V |
| Max Surge Current: | 200 A |
| Ir – Reverse Current: | 10 uA |
| Recovery Time: | 60 ns |
| Minimum Operating Temperature: | – 65 C |
| Maximum Operating Temperature: | + 175 C |
| Series: | MUR3060PT |
| Subcategory: | Diodes & Rectifiers |
