MX29F040CQI-70G PLCC-32 NOR FLASH SMD IC 11.4×14
| Description | 4M-BIT [512K x 8] CMOS 5V NOR Flash Memory |
| Datasheet | MX29F040CQI-70G Datasheet |
| Manufacturer | Macronix International |
| Model Number | MX29F040CQI-70G |
250.00 EGP
Buy NowMX29F040CQI-70G PLCC-32 NOR FLASH SMD IC
The MX29F040CQI-70G is part of Macronix’s MX29F series, known for its compatibility with older systems and robust performance. It is a 4M-bit memory device, organized as 512K x 8 bits, meaning it can store 4 megabits of data, accessible in byte-wide format. It operates on a single 5V power supply, which is used for read, erase, and program operations, making it suitable for legacy designs that still utilize 5V logic, less common in modern systems favoring lower voltages like 3V or 1.8V. The IC is housed in a 32-pin Plastic Leaded Chip Carrier (PLCC) package, which is surface-mount compatible, facilitating easy integration into printed circuit boards PCBs. The package dimensions are approximately 11.43mm x 14.05mm, often rounded to 11.4mm x 14mm in documentation, which is critical for PCB design to ensure proper fit and alignment during assembly.
Features:
- Single Power Supply Operation 4.5 to 5.5 volt for read, erase, and program operations
- 524288 x 8 only
- Sector Structure 64K-Byte x 8
- Latch-up protected to 100mA from -1V to Vcc + 1V
- Compatible with JEDEC standard
- Pinout and software compatible to single power supply Flash

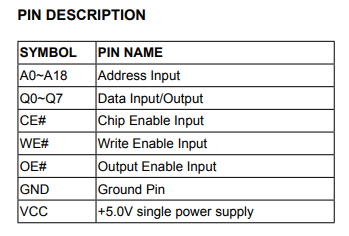

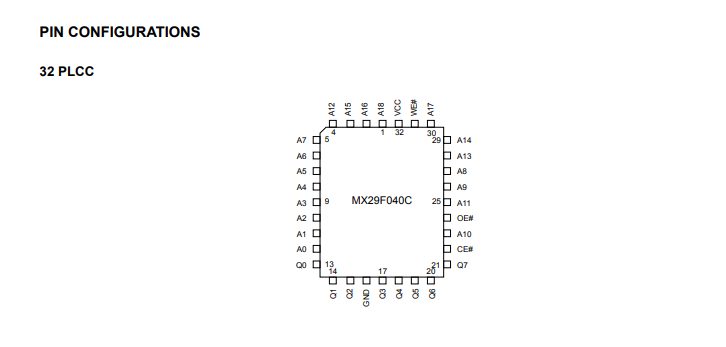

Pin out:
Specifications:
| Specification | Details |
|---|---|
| Part Number | MX29F040CQI-70G |
| Description | 4M-BIT [512K x 8] CMOS SINGLE VOLTAGE 5V ONLY EQUAL SECTOR FLASH MEMORY |
| Manufacturer | Macronix International |
| Memory Type | NOR Flash |
| Memory Size | 4 Mbit (512K x 8) |
| Access Time | 70 ns (maximum access time for data read, with options for 55/90 ns) |
| Power Supply | 5.0V only for read, erase, and program operation |
| Active Current | 30mA maximum (at 5MHz) |
| Standby Current | 1µA typical, ensuring low power consumption in idle states |
| Memory Organization | 524,288 x 8, organized for efficient byte-level access |
| Sector Configuration | 8 equal sectors of 64K-Byte each, facilitating sector-based operations |
| Byte Programming Time | 9µs typical, for quick programming of individual bytes |
| Erase/Program Cycles | 100,000 minimum, indicating robust endurance for repeated use |
| Data Retention | 20 years, ensuring long-term data integrity |
| Package Types | 32-pin PLCC |
| Package Dimensions | 11.43 mm x 14 mm |
| Operating Temperature | Industrial grade: -40°C to +85°C, suitable for harsh environments |
Applications:
It is ideal for storing firmware in devices like
- set-top boxes
- automotive control units
- industrial automation systems especially in legacy 5V systems.
Package Include:
- 1 x MX29F040CQI-70G PLCC-32.
Data Sheet:
