Features:
- N Type Female Crimp Socket for RG-8 , RG-213 or LMR-400 Coaxial Cable.
- Crimp and solder type connector.
- N Type radio antenna socket / inline connector.
- Require crimping tool plus soldering iron to fit.
- Higher Performance.
- Wide range of different configurations.
- Most common interfaces available.
- Accurate transitions.
- Effective and reliable interconnection solutions.
- Appropriate materials.

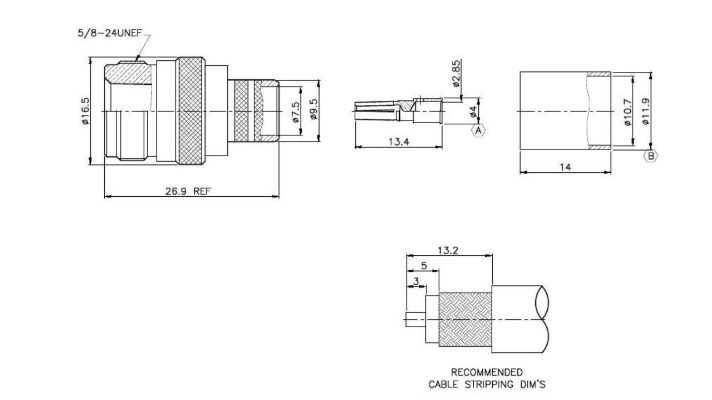

Drawing and Dimensions:
Installation:
Specifications:
- Product: Connector
- RF Series: N Type
- Product Type: RF Connectors / Coaxial Connectors
- Body Material: Brass
- Contact Material: Phosphor Bronze
- Contact Termination: Solder
- Coupling Mechanism: Threaded
- Size Category: Standard
- Gender: Female
- Orientation: Straight
- Panel Mounting Style: Straight Crimp
- Termination Style: Solder Type
- Thread Direction: Standard
- Insulator Material: PTFE
- Frequency Range: DC to 11 GHZ
- Impedance: 50 Ohms
- Withstand Voltage: ≥2500V,50Hz
- Working Voltage: ≤1000V,50Hz (sea level)
- Insulation Resistance: ≥5000mΩ
- Contact Resistance:
- Inner conductor: ≤1.0mΩ
- Outer conductor: ≤0.2mΩ
- RF leakage(2-3GHz)Flexible: ≥90dB
- Operating Temperature: -40°C ~ 85°C
- Interface Cable Type:
- RG58
- RG213
- LMR-400

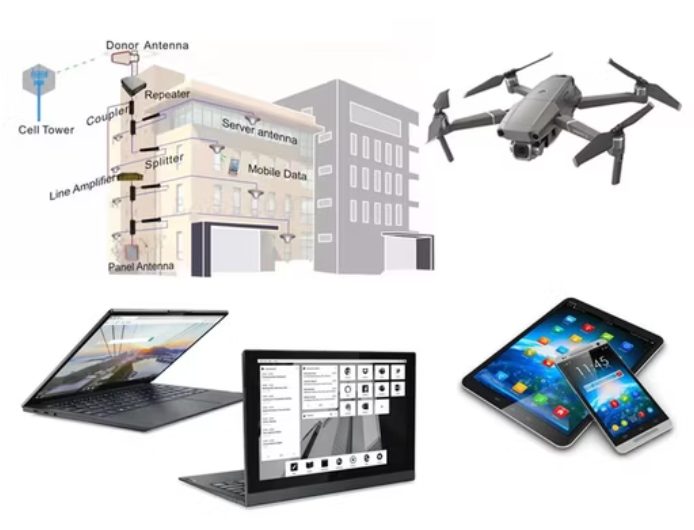

Applications:
- Personal communication services (PCS).
- Satellite communications.
- Include surge protection.
- Wireless LAN (WLAN).
- Aerospace (Mil-Aero).
- Radios and radars.
- Instrumentation.
- Microwave radio.
- Base stations.
- Broadcast.
- Antennas.
- Military.
