N32WB031KEQ6-2 Bluetooth Modules SMD IC QFN-32

N32WB031KEQ6-2 Bluetooth Modules SMD IC QFN-32

The N32WB031KEQ6-2 Bluetooth Module QFN-32 is an advanced Bluetooth Low Energy (BLE) System-on-Chip (SoC) designed for wireless communication in embedded systems. This module integrates a 32-bit Arm® Cortex®-M0 processor core, a BLE 5.1 compliant radio transceiver, and rich peripheral interfaces within a compact QFN-32 package.

Optimized for ultra-low power consumption and high integration, the N32WB031KEQ6-2 supports modern BLE features including 1 Mbps and 2 Mbps PHY modes, enhanced BLE mode, and low data rate remote modes. It is engineered to deliver robust wireless connectivity with excellent receive sensitivity and flexible transmit power options, making it suitable for a wide range of IoT and wireless applications.

Features:

• Bluetooth Low Energy (BLE) 5.1 compliant wireless communication.
• 32-bit Arm® Cortex®-M0 core operating at up to 64 MHz for efficient processing.
• Integrated 512 KB Flash memory and 48 KB SRAM for application storage and execution.
• Supports multiple BLE physical layer modes including 1 Mbps, 2 Mbps, 125 kbps and 500 kbps.
• Ultra-low power consumption with deep sleep and power-down modes.
• Rich peripheral interfaces: UART, SPI, I2C, I2S, ADC, GPIOs.
• Excellent RF performance with receive sensitivity down to approximately –94 dBm and programmable transmit power.

Specifications:

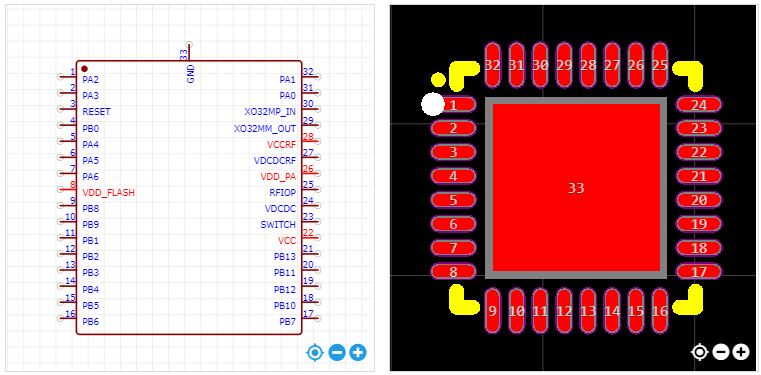

Footprint:

Applications:

• Bluetooth key fobs and access control systems.
• On-board units (OBU) for vehicle telematics.
• Wireless data transmission modules for IoT devices.
• Bluetooth voice remote controllers for consumer electronics.
• Smart home automation and sensor networks.

Package Include:

1x N32WB031KEQ6-2 Bluetooth Modules SMD IC QFN-32

Datasheet:

• Chinese
• English
