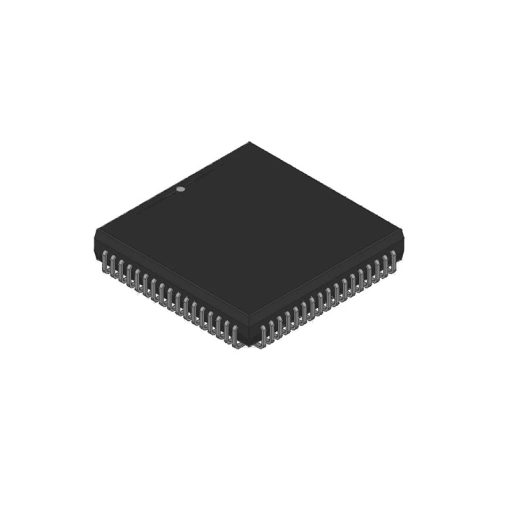

N87C196KD20 Main Processor Integrated IC 68-pin PLCC SMD

N87C196KD20 Main Processor Integrated IC 68-pin PLCC SMD

The N87C196KD20 is a microcontroller unit (MCU) designed by Intel, part of the 8XC196 family, which is based on the MCS-96 architecture. This chip integrates several essential features for microprocessor operations, utilizing a 68-pin PLCC package for efficient connectivity. It’s optimized for high performance, offering low power consumption and a range of integrated peripherals, ideal for embedded system applications.

This processor provides a 16-bit bus and supports a range of instructions with register-to-register architecture. It is available in different configurations, including ROM-less versions, OTP (One-Time Programmable) ROM devices, and standard ROM variants. The chip operates with multiple clock frequencies, with the N87C196KD20 version supporting a maximum of 16 MHz. Its integrated peripherals include an A/D converter, multiple timers, I/O ports, and high-speed I/O subsystems.

The N87C196KD20 delivers enhanced processing capability with its 16-bit data bus, supporting various embedded system applications that require both high performance and efficient power management. The microcontroller also features operational modes that can be optimized for power consumption, with options for idle and power own modes. This flexibility makes the N87C196KD20 suitable for diverse applications, ranging from automotive control systems to industrial automation.

Features:

• 16-bit Microcontroller Architecture: Supports both bit-level and byte-level operations.
• On-chip ROM/EPROM (OTP): Offers versions with built-in ROM and OTP for secure, one-time programming.
• Multiple I/O Ports: Includes five 8-bit I/O ports for versatile interfacing.
• High-Speed I/O Subsystem: Ensures quick data transfers with minimal latency.
• Timers and Counters: Equipped with multiple 16-bit timers and a 16-bit up/down counter.
• Pulse Width Modulation (PWM): For output control applications.
• Full-Duplex Serial Port: Allows for seamless communication with external devices.
• Integrated A/D Converter: A 10-bit A/D converter with sample and hold functionality for precise analog-to-digital conversions.
• Low Power Modes: Power own and idle modes to reduce energy consumption.
• High-Speed Inputs/Outputs: Supports multiple high-speed input/output functions, suitable for real-time applications.
• Programmable Baud Rate Generator: Enables accurate timing and communication speeds.

Specifications:

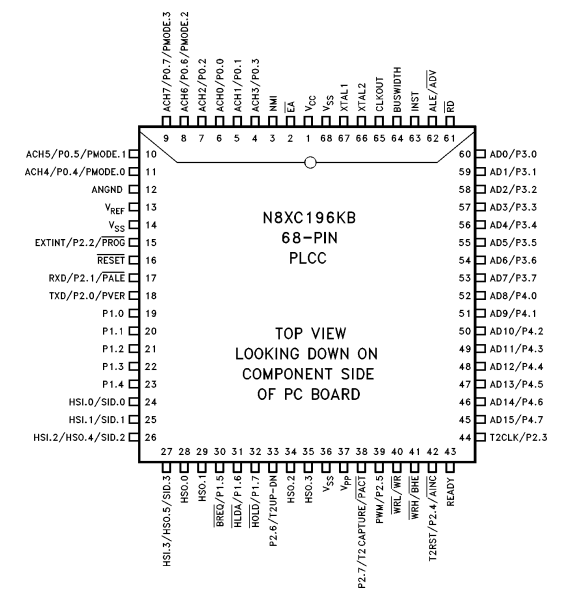

Pinout Diagram:

Applications:

• Automotive Control Systems.
• Industrial Automation.
• Robotics and Machine Control.
• Consumer Electronics.
• Embedded Systems and IoT Devices.
• Communication Systems.
• Power Management Systems.

Package Contents:

• 1x N87C196KD20 Main Processor Integrated IC 68-pin PLCC SMD

Datasheet
