Traffic Flow Radar MR76S
MR76S is the latest one compact type 77GHz frequency channel millimeter wave radar which researched and developed by Nanoradar. MR76S detect the reflection situation of millimeter wave through forward launch millimeter wave, feedback the relative distance, speed and angle information between obstacles and radar, able to real time detect and trace the big, small vehicles, e-bike and other information on road. This product adopt DBF digit wave beam combine, MIMO invented hold diameter, far and near wave beam-forming and other multiply items advanced technology, realize 1.2-300m measure distance, support to detect 128 pieces objects, small and exquisite body, high sensitivity, stable performance, light weight and easy to integrate.
Series：
77GHz MMW radar
Application：
This product able to be applied in the application scenes such as high speed flow monitor, crossing monitor, cross road income vehicle test, around boundary guard and others.
Features：
- It supports two-way multi-lane multi-target trajectory tracking and detection, software real-time online simulation, lateral 4-8lanes, longitudinal 300 meters;
- It supports multi-target real-time speed monitoring, with a maximum of 128 targets and a speed measurement range of -200km/h ~ +250km/h;
- It supports multi-row virtual coil setting, coil size and position software can be adjusted, and real-time output of vehicle presence information;
- It supports multi-section lane-dividing statistical data output, including traffic, speed, occupancy rate, headway, maximum queue length, etc;
- It supports traffic incident detection, including slow congestion, retrograde, abnormal parking, lane change, too close to the car, etc;
- It supports customized data output;
- It supports all-day and all-weather work, including rain, snow, fog, strong wind, ice, dust, etc;
Specifications：
| PARAMETER | CONDITIONS | MIN | TYP | MAX | UNITS |
|---|---|---|---|---|---|
| System performance | |||||
| Transmit frequency | 76 | 77 | GHz | ||
| Transmit power（EIRP） | 30 | dBm | |||
| Update rate | 12.5 | Hz | |||
| Cycle time | 80 | ms | |||
| Power | 2.5 | W | |||
| Communication interface | CAN | ||||
| Distance/speed measurement performance | |||||
| Speed measurement range | -200 | +250 | km/h | ||
| Speed measurement accuracy | -0.36 | +0.36 | meter | ||
| Direction | coming/going direction can be distinguish | ||||
| Distance measurement range | 1.2 300 | meter | |||
| Distance measurement accuracy | ±0.6 | meter | |||
| Antenna performance | |||||
| Beam width/TX | azimuth（-6dB） | 90 | deg | ||
| elevation（-6dB） | 13 | deg | |||
| Other performance | |||||
| Working voltage | 12 | V DC | |||
| Working current | 0.13 | A | |||
| Woking temperature | -40 | 70 | ℃ | ||
| Storage temperature | -40 | 85 | |||
| Outline dimensions | 137x75x20 | mm | |||
| Protection class | IP67 | ||||

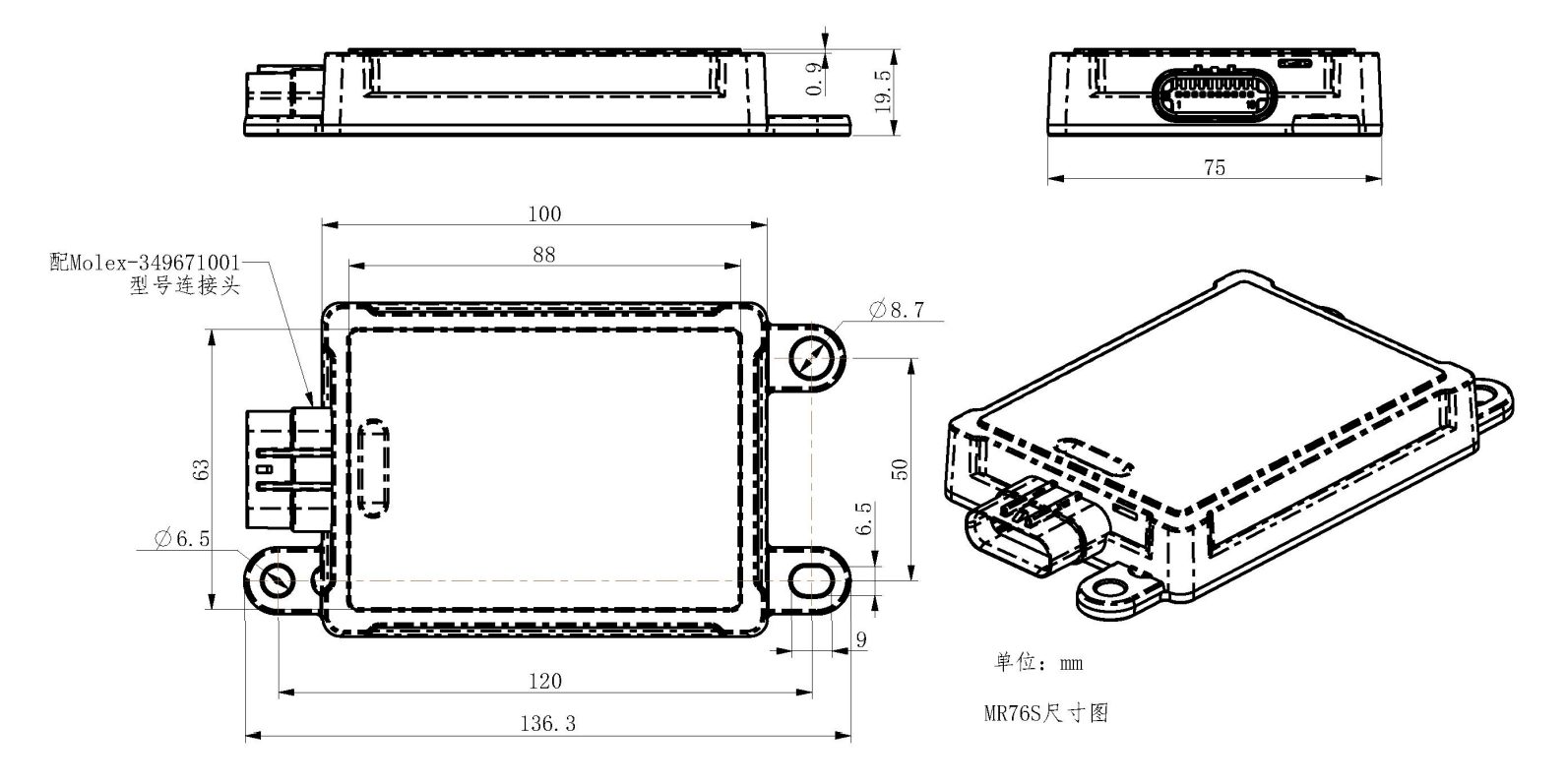

Dimenions:
USBCAN Debugger:
Functional characteristics:
USBCAN debugger with a single CAN interface, the computer can be connected to the standard network through the USB bus, Fieldbus test laboratory building, industrial control, intelligent building, data processing, automotive electronics and other fields in the data acquisition, can form the basic data communication network.
USBCAN debugger can be used as a standard CAN bus, CAN bus is CAN bus bus equipment product development, testing, a powerful data analysis tool; At the same time, USBCAN debugger has the characteristics of small size and convenient installation, but also the best choice for portable system users.
The USBCAN debugger can use the USBCAN tools provided by the store to directly configure the can bus, send and receive it. Users can also refer to our DLL dynamic link library, routines to set up their own applications, and facilitate the development of CAN system application software products.
USBCAN debugger equipment, CAN bus circuit adopts DCDC power supply module, photoelectric isolation, high protection degree has strong anti-jamming ability, greatly improve system reliability for use in harsh environments.
Hardware parameter:
• protocol conversion between USB and CAN bus;
USB interface supports USB2.0 and is backward compatible with USB1.1;
Support CAN2.0A and CAN2.0B protocols to support standard frames and extended frames;
• Supports two-way transmission, transmission, and CAN reception;
support data frame, remote frame format;
The baud rate of the CAN controller can be set between 10Kbps-1Mbps and can be configured by software;
The CAN transceiver uses high-speed optocoupler isolation with an isolation voltage of 1000V;
The CAN controller has 3 transmit buffers, 8 buffers, and the highest receiving capacity is available at 1200fps.
-USB bus direct power supply, but also an external 5V power supply;
Dielectric Voltage: 1000Vrms;
Operating temperature: 0~70°C;
Shell size: 70 * 45 * 18mm, very compact.
Typical applications
CAN bus network transmission and reception through the computer or laptop USB interface;
can fast network data acquisition and data analysis;
The USB interface is transferred to the CAN network interface;
Industrial website can monitor network data.
USBCAN debugger 1.
One USB communication line, and the computer can directly communicate with the USBCAN debugger.
USBCAN debugger, tool software, Visual C can test software, DLL, LIB and other development documents, user manuals, CAN bus, etc.;
Documents:
Package Included:
- NANORADAR MR76S 77GHz
- Connection Cable (5M)
- USB-A to USB-B Cable (1.5M)
- USBCAN Debugger
