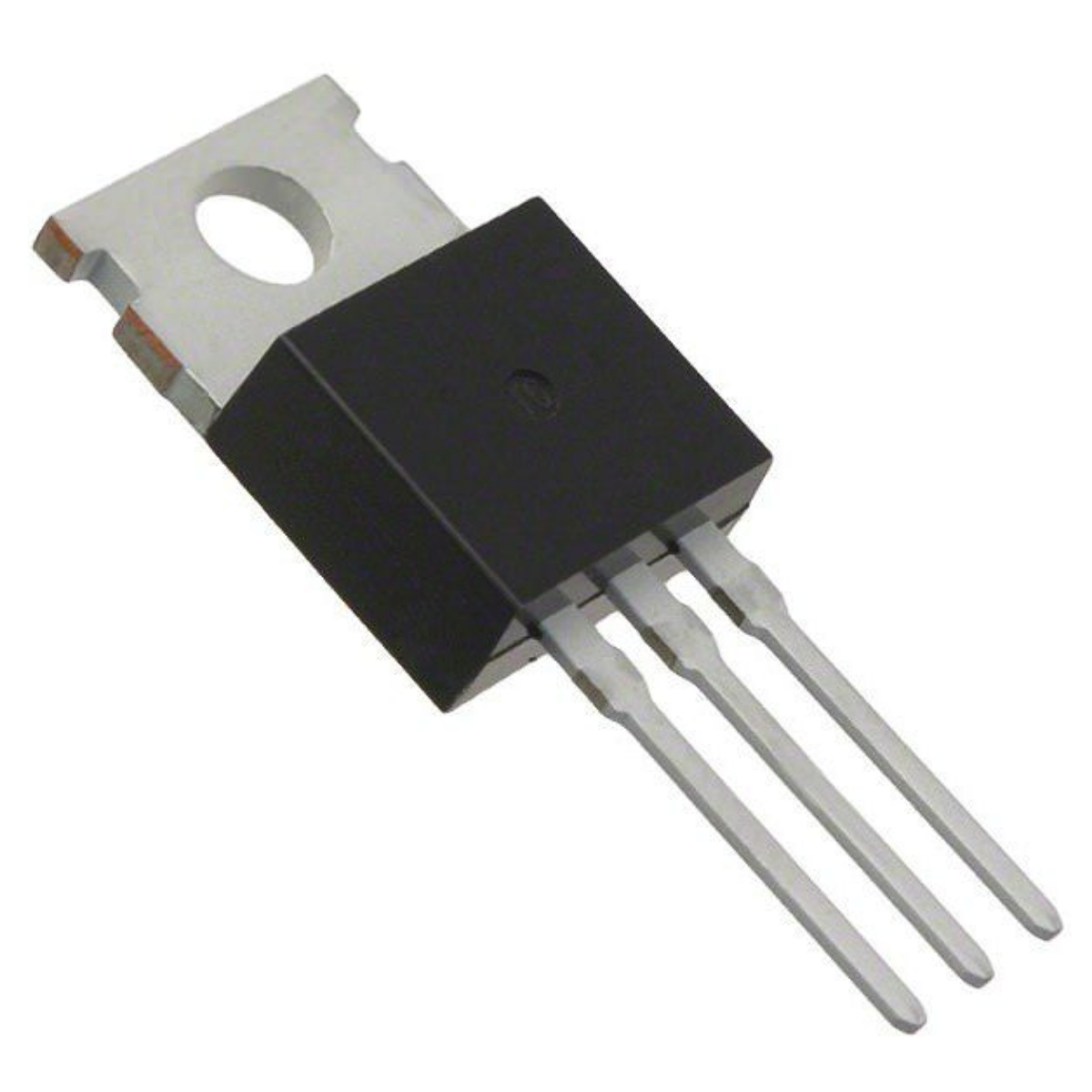

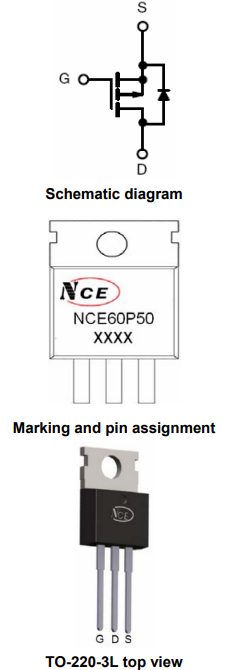

NCE60P50 P-Channel MOSFET Transistor
The NCE60P50 P-Channel MOSFET Transistor is a high-performance power switching device designed for robust load switching and power management applications. This transistor integrates a P-channel enhancement mode MOSFET optimized for handling substantial currents while maintaining low conduction losses. The device utilizes advanced trench technology to achieve a low on-resistance (RDS(on)), contributing to improved efficiency and thermal performance under load conditions. It is rated for a drain-to-source voltage (VDS) up to -60 V and can continuously conduct up to -50 A, making it suitable for medium-to-high power applications that require reliable switching performance.
Features:
- High-side switching capability with P-channel operation.
- Low on-resistance for efficient power handling.
- Quick switching performance suitable for DC-DC and load switching.
- Compact package suitable for space-constrained designs.
- Compatible with standard gate-drive logic relative to source voltage.
Specifications:
| Parameter | Value |
|---|---|
| Drain-Source Voltage (VDS) | -60V |
| Gate-Source Voltage (VGS) | ±20V |
| Continuous Drain Current (ID, TC=25°C) | -50A |
| Continuous Drain Current (ID, TC=100°C) | -35A |
| Pulsed Drain Current (IDM) | -150A |
| Maximum Power Dissipation (PD) | 95W |
| RDS(on) (max, VGS=-10V, ID=-20A) | 28mΩ |
| RDS(on) (typ, VGS=-10V, ID=-20A) | 23mΩ |
| Gate Threshold Voltage (VGS(th)) | -1.2V to -2.5V |
| Total Gate Charge (Qg) | 75nC |
| Input Capacitance (Ciss) | 6460pF |
| Thermal Resistance, Junction-to-Case (RθJC) | 1.31°C/W |
| Single Pulse Avalanche Energy (EAS) | 722mJ |
| Operating Junction Temperature (TJ) | -55°C to 150°C |
Applications:
- High-side power switching in DC power systems.
- Load switch circuits in industrial electronics.
- Power management in automotive and battery systems.
- Motor control and driver circuits requiring P-channel devices.
- Renewable energy and power conversion modules.
Package Include:
1x NCE60P50 P-Channel MOSFET Transistor.
