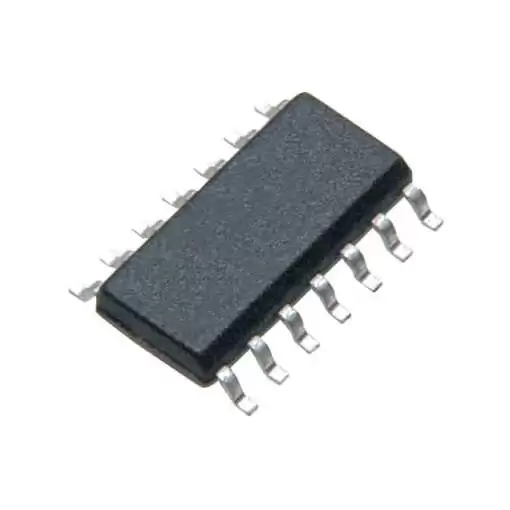

NE556 SMD Dual Timer IC SOIC-14

12.00 EGP

Buy Now
Availability: In Stock
SKU:3496300066568
Description

The NE556, SA556 and SE556 dual monolithic timing circuits are highly stable controllers capable of producing accurate time delays or oscillation. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as
an oscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. The circuits may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200 mA.

Features
  • Low turn-off time
  • Maximum operating frequency greater than 500 kHz
  • Timing from microseconds to hours
  • Operates in both astable and monostable modes
  • Output can source or sink up to 200 mA
  • Adjustable duty cycle
  • TTL compatible
  • Temperature stability of 0.005% per °C

NE556 Pinout Configuration
Pin Number Pin Name Description
1,13 Discharge Open collector output which discharges a capacitor between intervals (in phase with output). 7 I It toggles the output from high to low when voltage reaches 2/3 of the supply voltage
2,12 Threshold Compares the voltage applied to the terminal with a reference voltage of 2/3 Vcc. The 6 I amplitude of voltage applied to this terminal is responsible for the set state of the flip-flop
3,11 Control Voltage Controls the threshold and trigger levels. It determines the pulse width of the output 5 Voltage I waveform. An external voltage applied to this pin can also be used to modulate the output waveform
4,10 Reset Negative pulse applied to this pin to disable or reset the timer. When not used for reset 4 I purposes, it should be connected to VCC to avoid false triggering
5,9 Out This pin is normally connected to load as it is the only pin with output driven waveform
6,8 Trigger Responsible for transition of the flip-flop from set to reset. The output of the timer depends 2 I on the amplitude of the external trigger pulse applied to this pin
7 Ground Ground Reference Voltage 0V
14 Vcc Supply Voltage (Typical = 5V, Maximum = 18V)
Features and Specifications
  • Two precision Timers in one single package
  • Typical operating voltage is +5V, can withstand a maximum of +18V.
  • The source/sink current of the output pin is 220mA
  • Minimum Threshold voltage is 2.4 @ Vcc=5V
  • Operating Temperature is 70 degree Celsius.
  • Available in 14-pin SO package
Technical Specifications
Physical
Case/Package SOIC
Mount Surface Mount, Through Hole
Number of Pins 14
Technical
Current Rating 20 A
Frequency 500 kHz
High Level Output Current -200 mA
Low Level Output Current 200 mA
Max Operating Temperature 70 °C
Max Supply Voltage 16 V
Min Operating Temperature 0 °C
Min Supply Voltage 4.5 V
Nominal Supply Current 20 mA
Number of Channels 2
Number of Timers/Counters 2
Operating Supply Current 20 mA
Output Current 200 mA
Quiescent Current 30 mA
NE556 Datasheet
