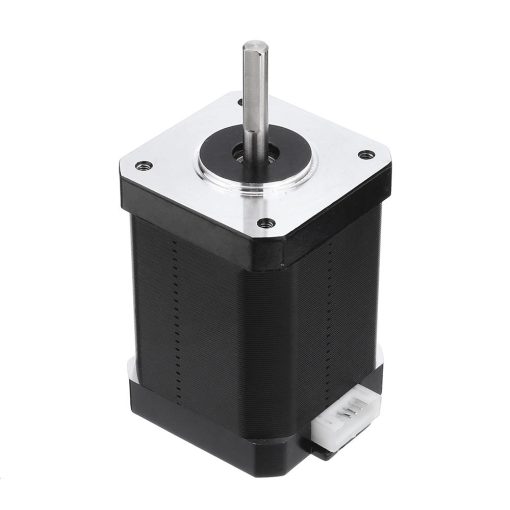

Nema 17 Stepper Motor 17HS6401
The Stepper Motor Nema 17 17HS6401 60mm is a high-performance 2-phase hybrid stepper motor designed for applications requiring precise control and high torque. With a 1.8° step angle and a 60mm body length, this motor delivers a holding torque of up to 0.73Nm, making it suitable for demanding tasks in 3D printers, CNC machines, and automation equipment. Its 4-lead bipolar configuration ensures compatibility with various stepper drivers, and the 5mm D-type shaft facilitates secure coupling with mechanical components.
Features
- High holding torque up to 0.73Nm for demanding applications.
- 1.8° step angle for precise positioning.
- 4-lead bipolar configuration compatible with standard drivers.
- 60mm body length providing enhanced torque output.
- 5mm D-type shaft for secure mechanical coupling.
- Low noise and smooth operation.
- Suitable for various industrial and hobbyist applications.
Specifications
| Parameter | Value |
|---|---|
| Model | 17HS6401 |
| Step Angle | 1.8° (200 steps/rev) |
| Phases | 2 (bipolar, 4‑wire) |
| Rated Current | 1.7 A/Phase |
| Phase Resistance | 1.8 Ω |
| Holding Torque | 0.65 Nm – 0.73 Nm |
| Motor Length | 60 mm |
| Number of Leads | 4 |
| Shaft Diameter | 5 mm D‑shape |
| Insulation Resistance | ≥100 MΩ@500 VDC |
| Dielectric Strength | 500 VAC for 1 min |
| Operating Temp Range | –20 °C – +50 °C |
| Temperature Rise | ≤80 °C |
Applications
- 3D printers.
- CNC milling machines.
- Robotics and automation systems.
- Laser engraving machines.
- Medical equipment.
- Textile machinery.
- Packaging machinery.
- Stage lighting systems.
Package Contents
- 1x Stepper motor Nema 17 17HS6401.
- 1x 50cm 4-wire cable with 2.54mm pitch connector.
