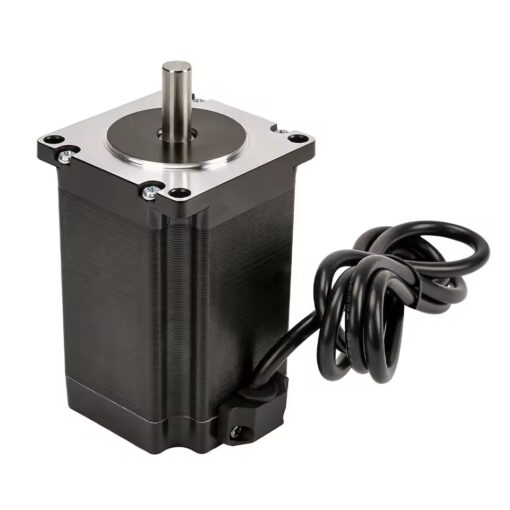

NEMA 23 Stepper Motor 57BYGH82
The NEMA 23 Stepper Motor 57BYGH82 is a hybrid bipolar motor with an 82 mm body, 1.8° (200 steps/rev) resolution, and four-wire configuration. Rated for 5 A per phase and with a phase resistance of 0.6 Ω, it offers strong holding torque while enabling high dynamic response. The motor maintains insulation of ≥ 100 MΩ @ 500 VDC and withstands 500 VAC for 1 min. With a temperature rise limit of 80 °C and operation over –20 °C to +50 °C, this motor is designed for continuous industrial use. Shaft is 8 mm D-shape.
Features
- Precise 1.8° step angle for accurate motion control.
- High holding torque suitable for heavy-load applications.
- Durable 82mm body length for enhanced performance.
- Low phase resistance for efficient power consumption.
- Compatible with most bipolar stepper motor drivers.
- 8mm D-type shaft for secure mechanical coupling.
Specifications
| Parameter | Value |
|---|---|
| Model | 57BYGH82 |
| Step Angle | 1.8° (200 steps/rev) |
| Step Accuracy | ±5 % |
| Phases | 2 (bipolar,4‑wire) |
| Rated Current | 5 A |
| Phase Resistance | 0.6 Ω – 1.0 Ω |
| Resistance Accuracy | ±10 % |
| Phase Inductance | 2.2 mH – 5.0 mH |
| Inductance Accuracy | ±20 % |
| Holding Torque | 1.8Nm – 2.3Nm |
| Detent Torque | ~0.05Nm |
| Rotor Inertia | ~600g·cm² |
| Temperature Rise | ≤80 °C |
| Ambient Temperature Range | –20 °C – +50 °C |
| Storage Temperature Range | –20 °C – +70 °C |
| Insulation Resistance | ≥100MΩ@500VDC |
| Dielectric Strength | 500VAC for 1 min |
| Number of Leads | 4 |
| Motor Length | 82 mm |
| Shaft Diameter | 8 mm D‑shape |
Torque vs Speed
Applications
- Heavy-duty CNC machinery and milling operations.
- Robotic arms, pick‑and‑place systems, and automation platforms.
- High-torque 3D printers and laser cutters.
- Actuators in medical and laboratory instrumentation.
- Conveyor drives and automated material handling.
Package Contents
- 1x NEMA 23 Stepper Motor 57BYGH82.
