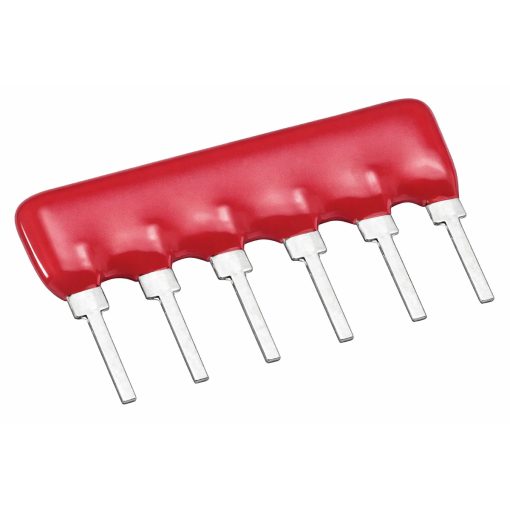

Network Resistor 10K ohm 6 pin
The 10K Ohm 6-Pin Resistor Network is a high-density passive component designed to simplify circuit board layouts. By integrating five 10k resistors into a single SIP package, it reduces component count and saves significant PCB real estate. This “bussed” configuration features one common pin connected to all five internal resistors, making it ideal for pull-up, pull-down, or bus termination tasks.
✅Features
- Space Saving
- Easy Mounting
- High Reliability
📜📚Specifications
| Attribute | Technical Detail |
|---|---|
| Resistance Value | 10k Ohm |
| Circuit Type | Bussed (Common Terminal) |
| Number of Pins | 6 Pins |
| Number of Resistors | 5 Resistors |
| Dimensions | 15 x 8 x 2 mm |
| Temperature Range | -55°C to +125°C |
| Lead Pitch | 2.54 mm (0.1 inch) |
| Mounting Type | Through-Hole |
💻Applications
- Digital Logic
- LED Displays
- Bus Termination
- Voltage Dividers
🎁Package Content
- 1 x Network Resistor 10K ohm 6 pin
