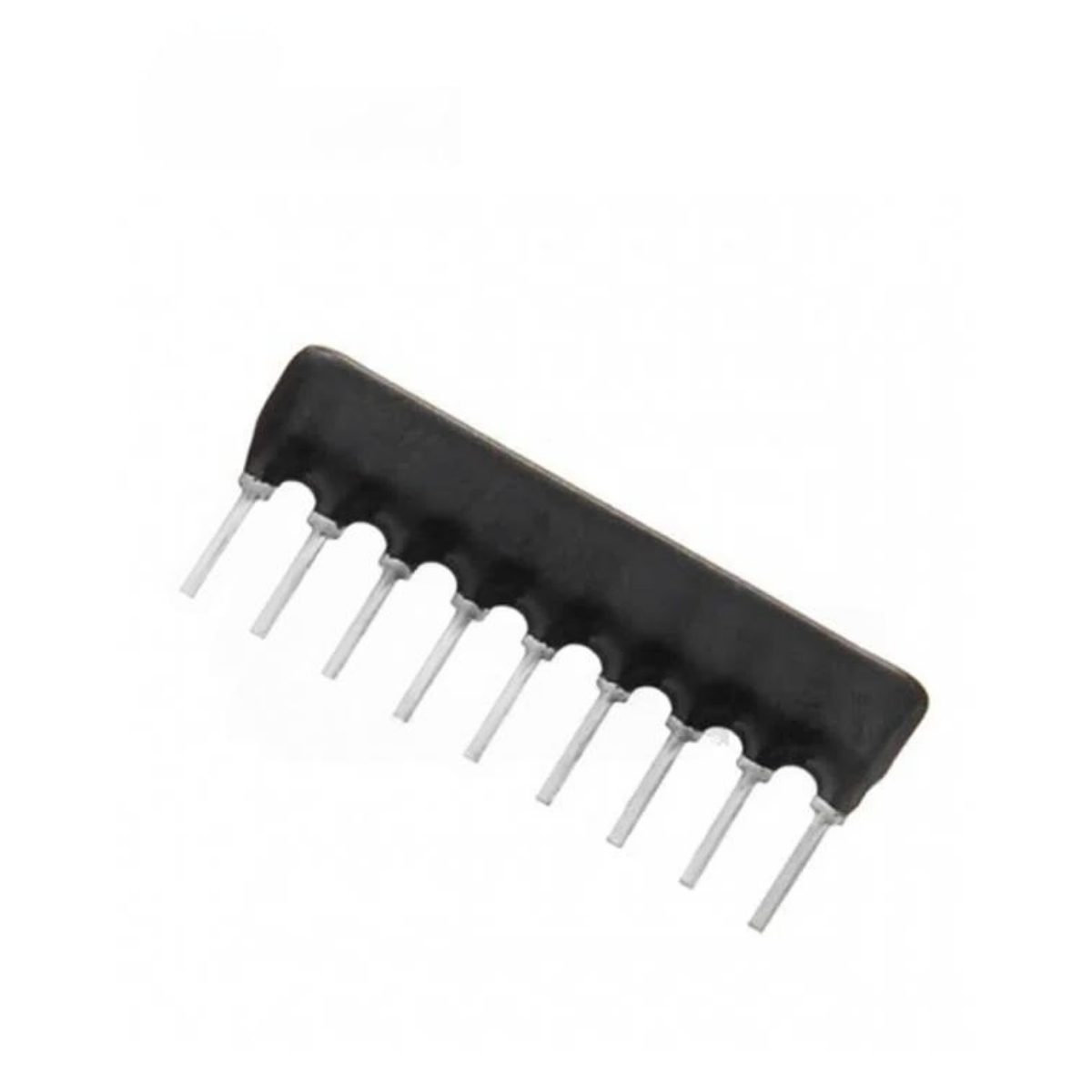

Network Resistor 4.7KΩ 9 Pin
The Network Resistor 4.7KΩ 9 Pin is a resistor network integrating eight 4.7 kilo-ohm resistors internally connected to a common terminal within a 9-pin single in-line package (SIP). Each resistor has a tolerance of ±2%, indicated by the in the part number, ensuring precise and consistent resistance suitable for a variety of electronic circuit applications.
Features:
- Eight 4.7KΩ resistors connected to a common pin in a 9-pin SIP package.
- ±2% tolerance for high precision.
- Through-hole mount design.
- Operating temperature range from -55°C to +125°C.
Specifications:
| Parameter | Value |
|---|---|
| Resistance | 4.7KΩ |
| Tolerance | ±2% |
| Number of Resistors | 8 |
| Operating Temperature | -55°C to +125°C |
| Power Rating | 0.125W per resistor |
| Package Type | SIP |
| Mounting Type | Through-Hole (THT) |
| Pin Count | 9 |
Applications:
- Signal conditioning and voltage division.
- Pull-up and pull-down resistor networks.
- Space-saving resistor arrays for PCB assemblies.
- Consumer and industrial electronics.
Package Include:
1x Network Resistor 4.7KΩ 9 Pin.
