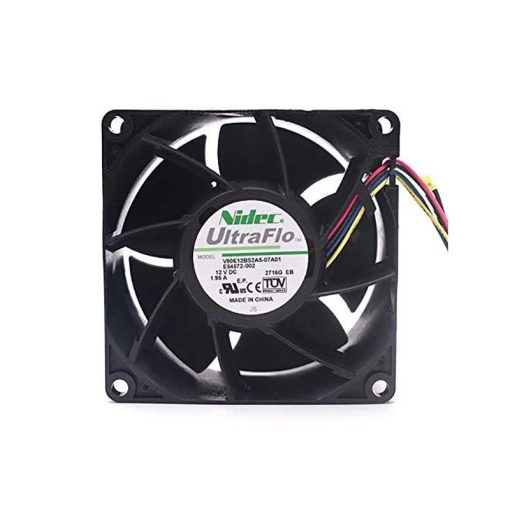

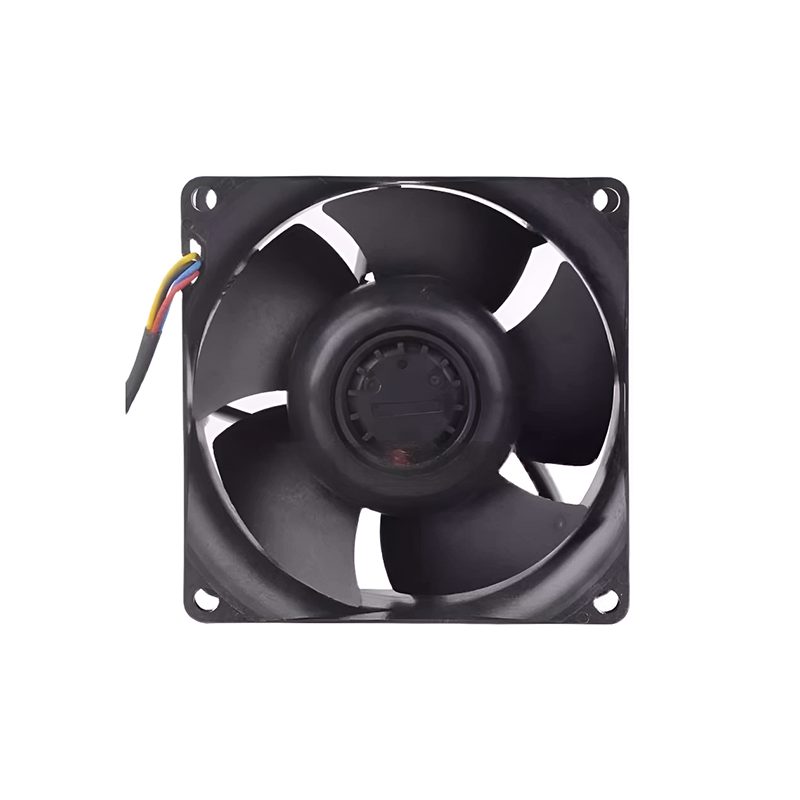

NIDEC Ultra Flo V80E12BS2A5-07A01 Cooling Fan 12V 1.95A 80x80x38mm (USED LIKE NEW)
The NIDEC Ultra Flo V80E12BS2A5-07A01 cooling fan is designed to deliver powerful airflow in a compact industrial form. Its structure reflects a balance between mechanical precision and durable materials, creating a stable airflow path that supports continuous thermal control. The fan’s design emphasizes robustness and reliability, making it suitable for environments where consistent cooling performance is required over long operating periods.
The internal construction of the fan focuses on smooth rotational movement and efficient air circulation. The aerodynamic blade design works together with the motor assembly to produce steady airflow while maintaining operational stability. The fan’s overall build quality reflects NIDEC’s engineering approach, combining structural strength with refined airflow dynamics to ensure dependable operation under demanding conditions.
From an overall perspective, this cooling fan represents a high-performance solution developed for professional and industrial thermal management. Its compact yet solid design allows it to integrate seamlessly into various systems while maintaining operational consistency. The fan embodies a blend of precision engineering and industrial-grade construction, resulting in a reliable cooling component built for continuous and intensive use.
Features:
- High-performance airflow design.
- Robust industrial-grade construction.
- Precision-engineered motor structure.
- Stable rotational performance.
- Durable mechanical design.
- Long operational lifespan concept.
- Smooth and consistent airflow behavior.
- High reliability in continuous operation.
- Advanced internal airflow dynamics.
- Strong structural integrity.
Specifications:
| Parameter | Specification |
|---|---|
| Fan Type: | DC Brushless Axial Fan |
| Series: | Ultra Flo |
| Rated Voltage: | 12 VDC |
| Operating Voltage Range: | 10.8 – 13.2 V DC |
| Operating Current: | 1.95 A |
| Rated Power Input: | 23.4 W |
| Fan Dimensions: | 80 × 80 × 38 mm |
| Rated Speed: | 15,000 rpm |
| Maximum Airflow: | 3.41 m³/min (≈ 31.7 CFM) |
| Maximum Static Pressure: | 981 Pa (≈ 3.94 in-H₂O) |
| Noise Level: | 71 dB(A) |
| Bearing Type: | Ball Bearing |
| Operating Temperature: | −10 °C to 70 °C |
| Lifespan (L10): | 70,000 hours (at 40 °C) |
| Weight: | 185 g |
Applications:
- Server Cooling.
- Data Center Equipment.
- Industrial Power Supplies.
- Telecommunications Systems.
- Networking Hardware.
- Embedded Systems.
- Electronic Control Units.
- Industrial Automation Equipment.
- High-Density Computing Systems.
- Thermal Management Modules.
Package Contents:
- 1x NIDEC Ultra Flo V80E12BS2A5-07A01 Cooling Fan 12V 1.95A 80x80x38mm (USED LIKE NEW)
