GENERAL DESCRIPTION
The NJMA558 is a dual high-gain operational amplifier with intemal compensation circuit and constructed on a single silicon chip. It offers excellent characteristics by combining the parameters adjusted for a monolithic chip. The channel separation characteristic is suitable for measuring instruments.
FEATURES
- Operating Voltage (±4V∼±18V)
- High Voltage Gain (100db typ. )
- High Input Resistance (5MQ typ. )
- Bipolar Technology
- Package Outline DIP8

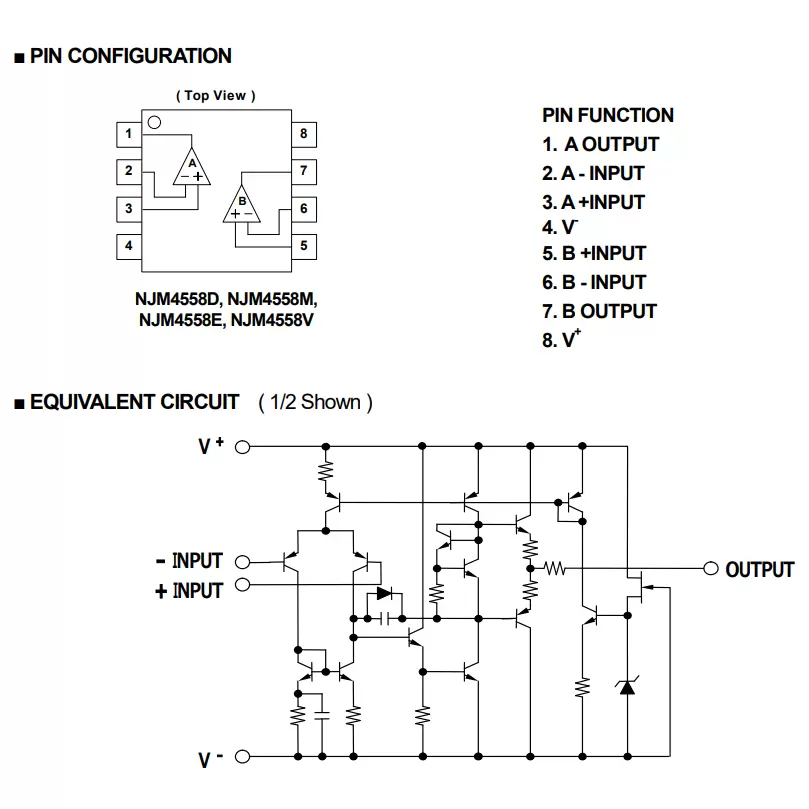

Technical Specifications

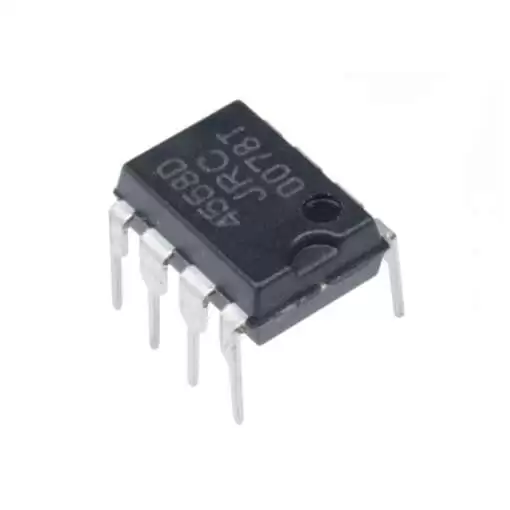

New Japan Radio NJM4558D technical specifications, attributes, and parameters.
NJM4558 Series 4 – 18 V Dual Channel 3 MHz Operational Amplifier – DIP-8. Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, PDIP8, DIP-8. Op Amp Dual High Gain Amplifier ±18V 8-Pin PDIP.
Physical | |
|---|---|
| Case/Package | DIP |
| Mount | Through Hole |
| Number of Pins | 8 |
Technical | |
|---|---|
| Common Mode Rejection Ratio | 70 dB |
| Gain Bandwidth Product | 3 MHz |
| Input Bias Current | 25 nA |
| Input Offset Voltage (Vos) | 6 mV |
| Max Dual Supply Voltage | 18 V |
| Max Operating Temperature | 85 °C |
| Max Supply Voltage | 18 V |
| Min Dual Supply Voltage | 4 V |
| Min Operating Temperature | -40 °C |
| Nominal Supply Current | 5.7 mA |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 3.5 mA |
| Power Dissipation | 500 mW |
| Slew Rate | 1 V/µs |
| Voltage Gain | 100 dB |
