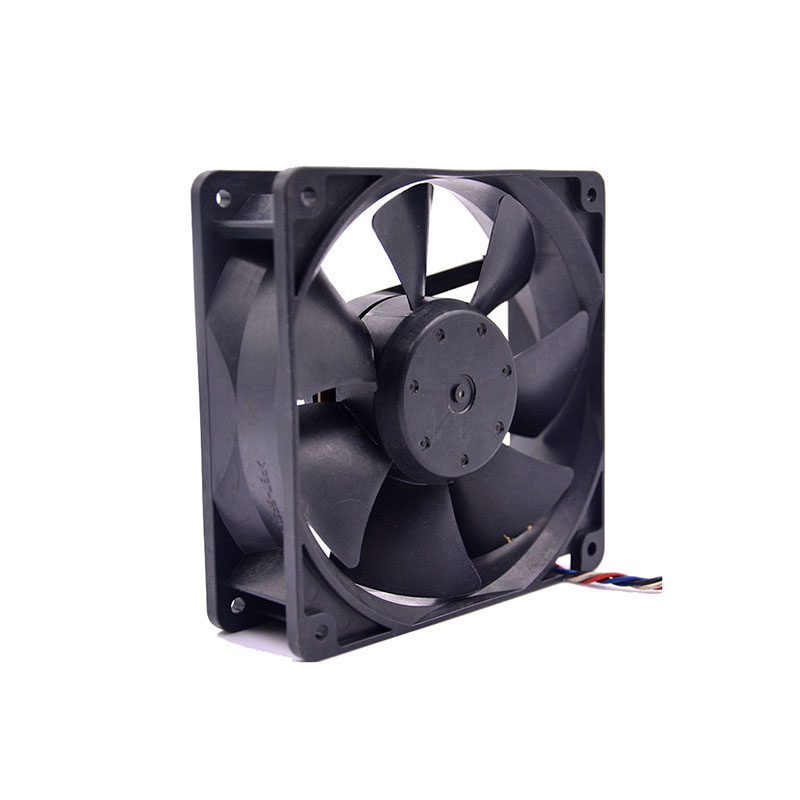

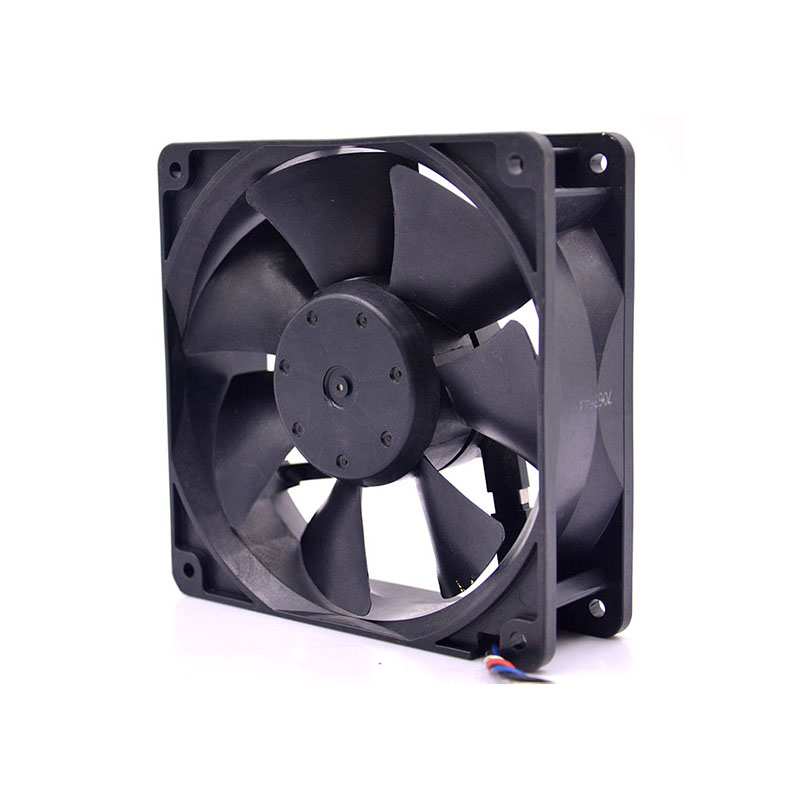

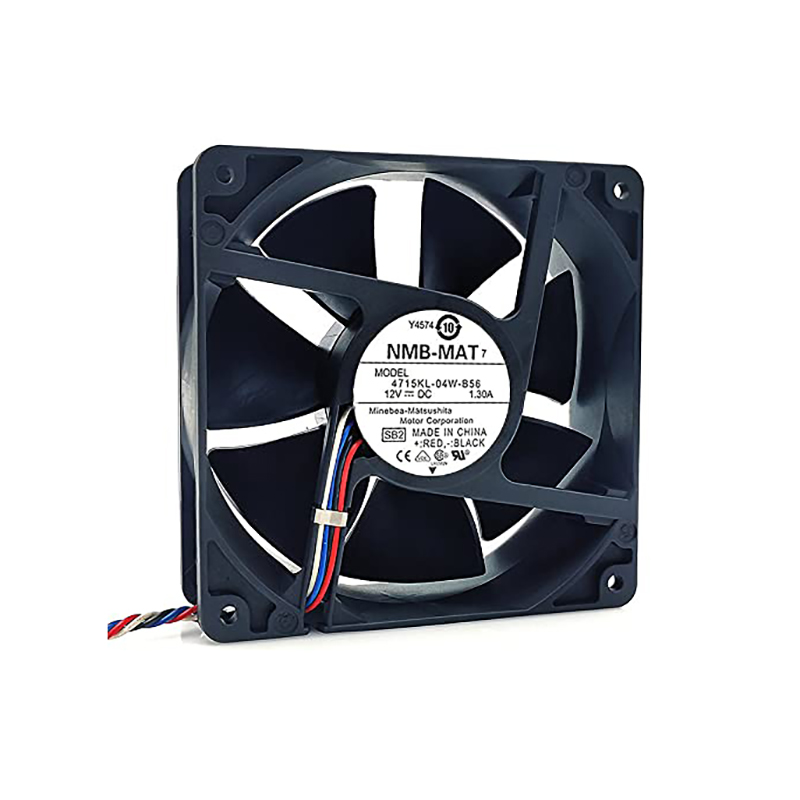

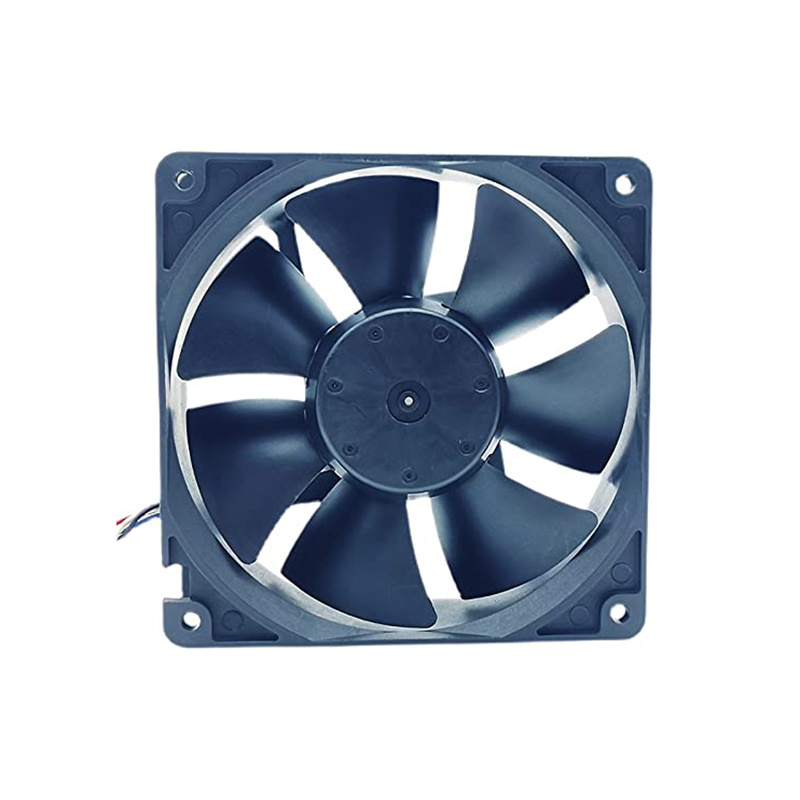

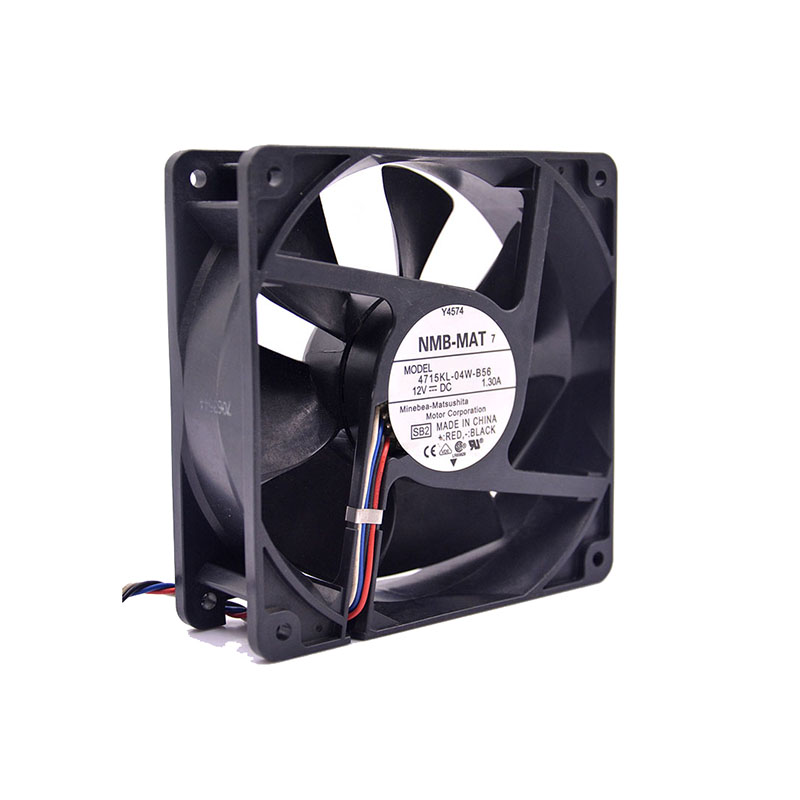

NMB MAT 4715KL-04W-B56 DC Fan 12V 1.3A 120×120×38mm (USED LIKE NEW)
4715KL-04W-B56 Powerful 120mm DC axial fan with durable ball bearings, high airflow, and reliable performance for demanding cooling applications.
350.00 EGP
Buy NowNMB MAT 4715KL-04W-B56 DC Fan 12V 1.3A 120×120×38mm (USED LIKE NEW)
The NMB MAT 4715KL-04W-B56 DC fan is a high-performance axial cooling device designed to provide strong and stable airflow in demanding environments. Its structure reflects industrial-grade engineering, combining a solid frame with precisely shaped blades to ensure smooth and consistent air movement. The fan is built to operate reliably under continuous use, making it suitable for systems that require dependable thermal control.
The internal design of the fan emphasizes mechanical stability and balanced rotation, which helps maintain steady airflow while reducing operational disturbances. The materials used in its construction are selected to withstand long-term operation and varying environmental conditions. The overall design demonstrates a focus on durability and performance, ensuring that the fan maintains consistent behavior throughout its service life.
With its standardized form factor and robust construction, the fan integrates easily into various cooling assemblies. Its design supports efficient air circulation while maintaining structural strength and operational reliability. The NMB MAT 4715KL-04W-B56 represents a professional cooling solution that combines durability, stability, and performance for advanced thermal management systems.
Features:
- Dual ball bearing system for extended lifespan.
- High-performance axial airflow design.
- PWM speed control capability.
- Tachometer output for speed monitoring.
- Automatic restart function.
- Polarity protection circuit.
- Stable rotational balance.
- High mechanical durability.
- Industrial-grade build quality.
- Reliable continuous-operation performance.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer: | NMB Technologies (NMB MAT) |
| Model: | 4715KL-04W-B56 |
| Fan Type: | DC Axial Fan |
| Rated Voltage: | 12 VDC |
| Rated Current: | 1.30 A |
| Rated Power: | 15.6 W |

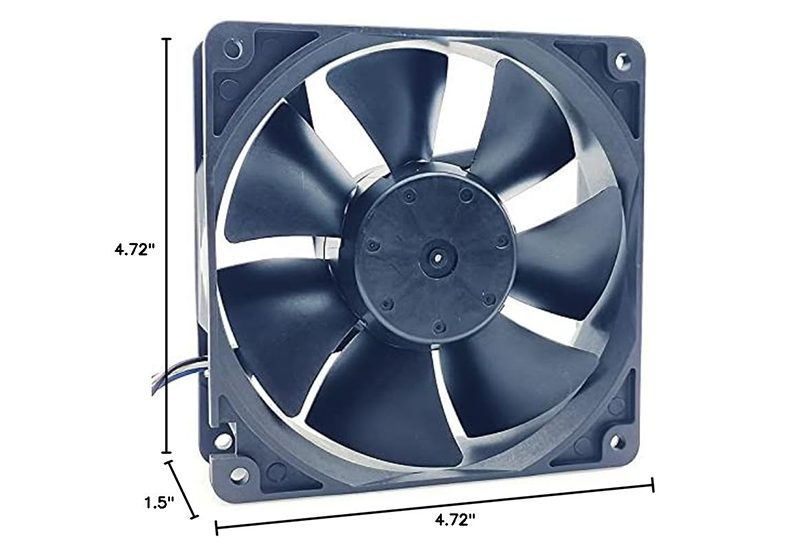

| Dimensions: | 120 × 120 × 38 mm |
| Speed: | 3600 RPM |
| Airflow: | 130 CFM (3.68 m³/min) |
| Static Pressure: | 110 Pa |
| Noise Level: | 50 dBA |
| Bearing Type: | Ball Bearing |
| Connector: | 4-Wire Leads |
| Operating Voltage Range: | ~7.0 – 13.2 VDC |
| Operating Temperature: | -10°C to 70°C |
| Life Expectancy: | Up to 180,000 hours |
| Frame Material: | Plastic |
| Impeller Material: | Plastic |
Applications:
- Server Cooling Systems.
- Computer Hardware Cooling.
- Industrial Electronics Cooling.
- Power Supply Units.
- Telecommunications Equipment.
- Networking Devices.
- Automation Systems.
- Control Cabinets.
- Embedded Systems.
- High-Performance Cooling Systems.
Package Contents:
- 1x NMB MAT 4715KL-04W-B56 DC Fan 12V 1.3A 120×120×38mm (USED LIKE NEW)
| Weight | 260 g |
|---|---|
| Dimensions | 130 × 130 × 50 mm |
