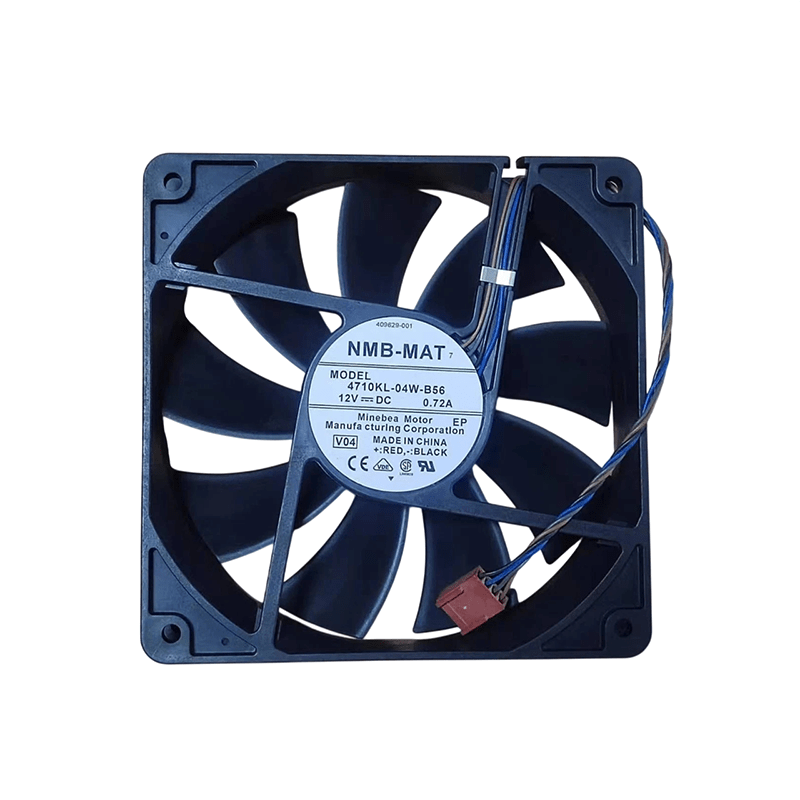

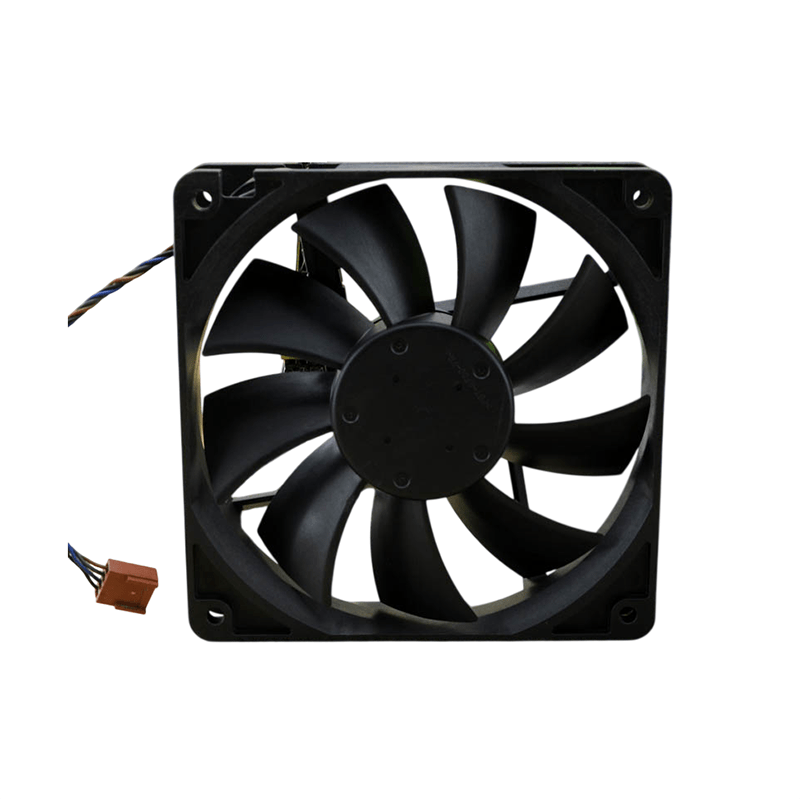

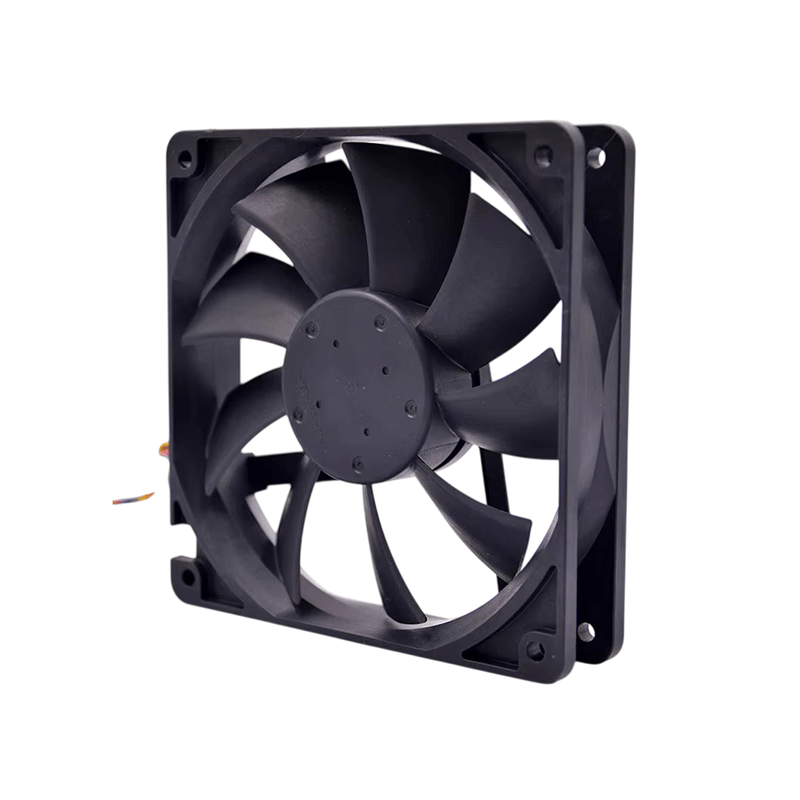

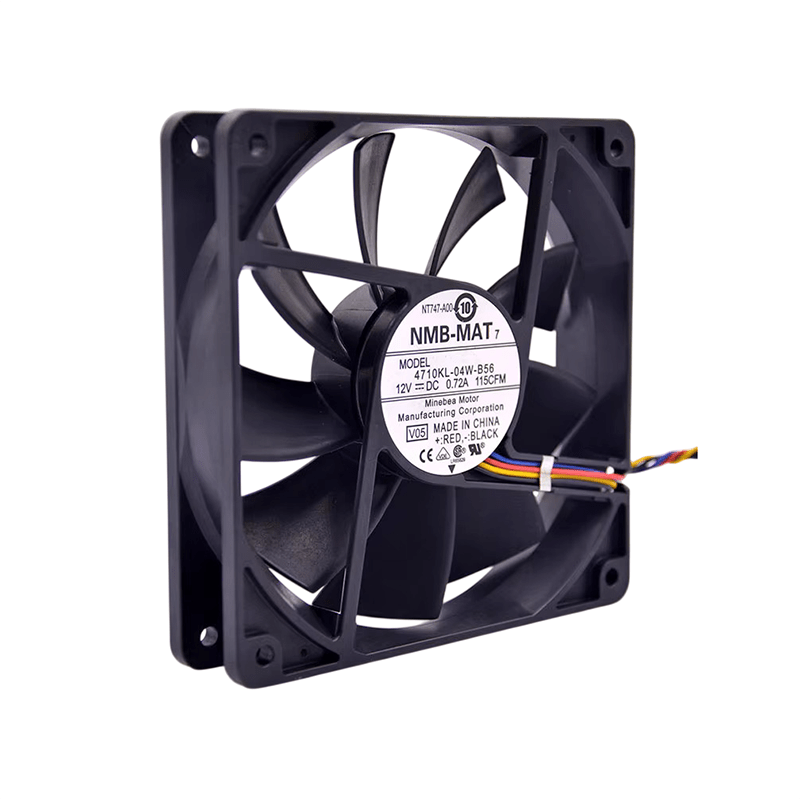

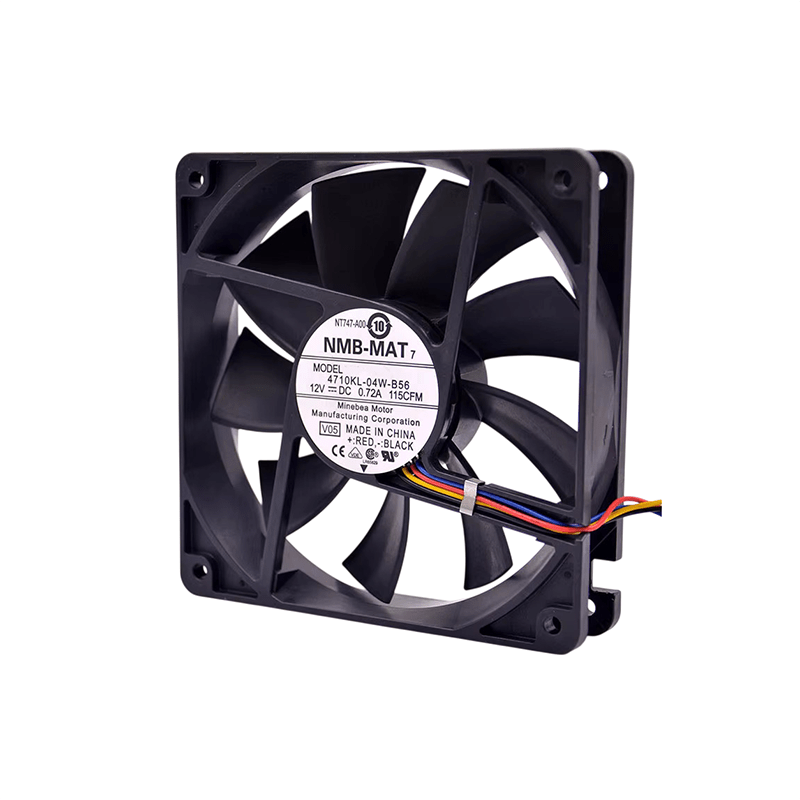

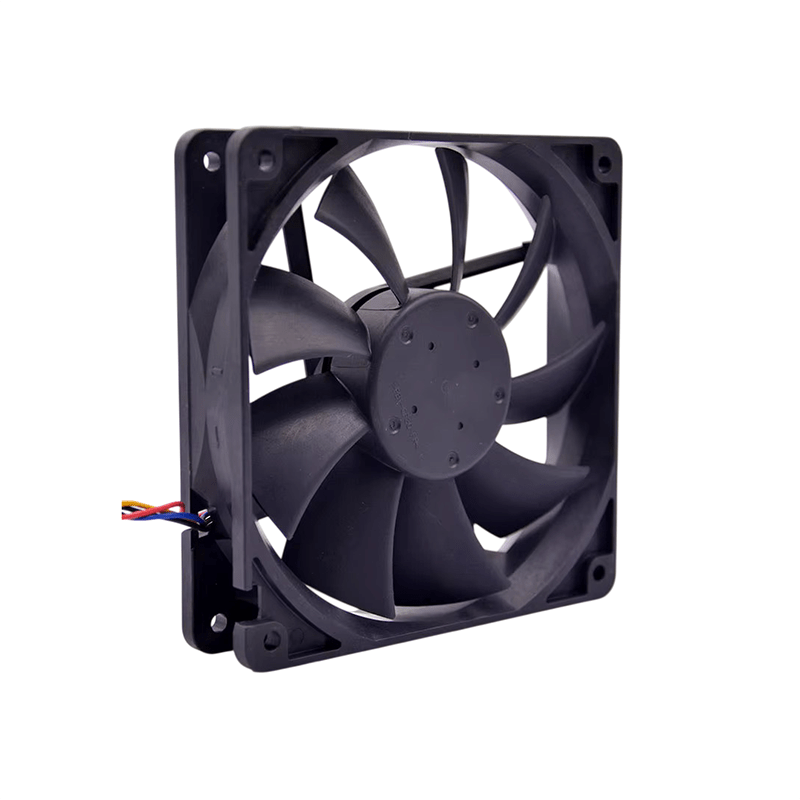

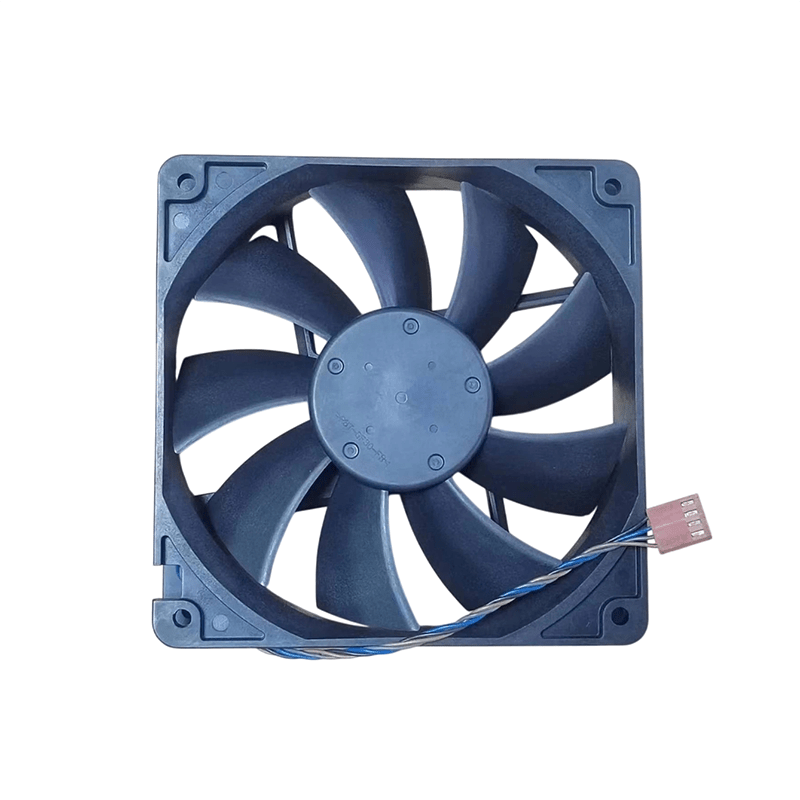

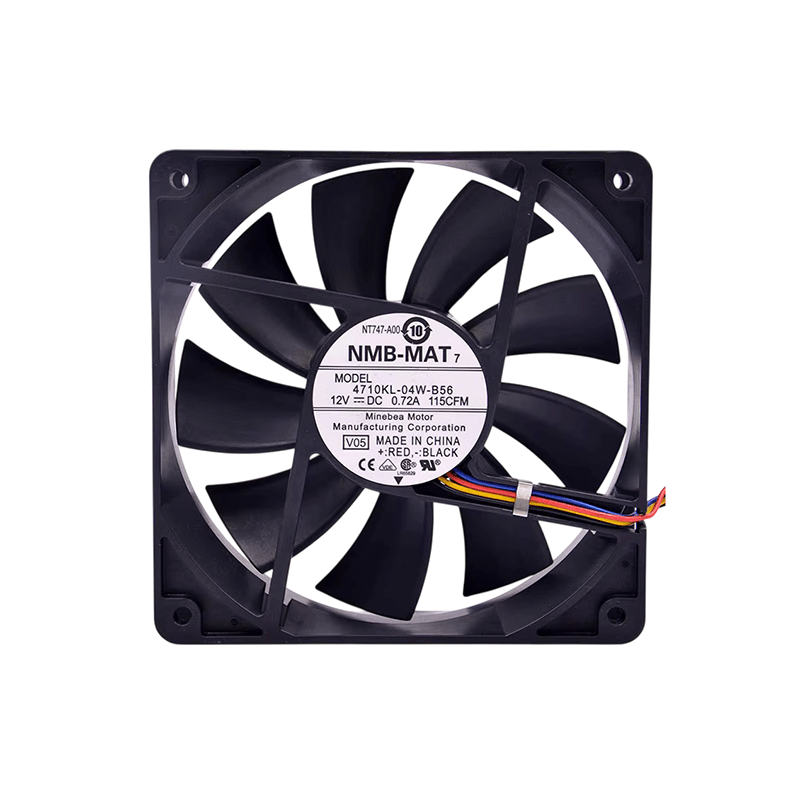

NMB MAT DC Fan 4710KL-04W-B56 12V 0.72A 120×120×25mm (USED LIKE NEW)
4710KL-04W-B56 High-performance 120mm DC axial fan with durable ball bearings, stable airflow, and reliable operation for demanding cooling environments.
350.00 EGP
Buy NowNMB MAT DC Fan 4710KL-04W-B56 12V 0.72A 120×120×25mm (USED LIKE NEW)
The NMB MAT DC Fan 4710KL-04W-B56 is a robust axial cooling fan designed to deliver stable and efficient airflow in demanding environments. Its construction reflects a balance between mechanical strength and smooth operation, allowing it to perform consistently under continuous use. The fan’s design emphasizes reliability and durability, making it suitable for long-term operation where steady airflow is essential.
This fan is engineered with precision components that ensure smooth rotation and minimal vibration during operation. The internal structure supports stable airflow movement while maintaining mechanical balance, which contributes to its dependable performance. The overall build quality reflects industrial-grade manufacturing standards, ensuring the fan can withstand operational stress over extended periods.
With its standardized form factor and well-designed airflow structure, the fan integrates easily into various cooling systems. Its design supports efficient thermal management while maintaining operational stability. The NMB MAT 4710KL-04W-B56 represents a reliable solution for cooling needs where consistent performance, durability, and mechanical stability are required.
Features:
- Dual ball bearing design for long operational life.
- Stable and smooth rotational performance.
- Intelligent speed control capability.
- Speed monitoring support (tachometer signal).
- Multi-speed operation capability.
- High reliability under continuous operation.
- Durable mechanical construction.
- Low vibration and stable airflow behavior.
- Industrial-grade design quality.
- Compatibility with standard fan connectors.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer: | NMB Technologies (NMB MAT) |
| Model: | 4710KL-04W-B56 |
| Fan Type: | DC Axial Fan |
| Rated Voltage: | 12 VDC |
| Rated Current: | 0.72 A |
| Input Power: | 6.6 W |
| Dimensions: | 120 × 120 × 25 mm |
| Speed: | Up to 2800 RPM |
| Air Flow: | Up to 114.7 CFM (≈ 3.25 m³/min) |
| Static Pressure: | 50.5 Pa |
| Noise Level: | 41.5 dB(A) |
| Bearing Type: | Ball Bearing |
| Weight: | ≈ 180 g |
| Operating Voltage Range: | 6 – 13.8 VDC |
| Operating Temperature: | -10°C to 70°C |
| Lifetime: | Up to 100,000 hours |
| Connector Type: | 4-wire (PWM / tach support) |
| Material: | Plastic frame and impeller |
Applications:
- Computer Cooling Systems.
- Server Equipment Cooling.
- Industrial Electronics Cooling.
- Power Supply Cooling.
- Telecommunications Equipment.
- Networking Devices.
- Automation Systems.
- Control Panels.
- Embedded Systems.
- Thermal Management Systems.
Package Contents:
- 1x NMB MAT DC Fan 4710KL-04W-B56 12V 0.72A 120×120×25mm (USED LIKE NEW)
| Weight | 180 g |
|---|---|
| Dimensions | 125 × 125 × 35 mm |
