| Manufacturer | Jiangsu Changjing Electronics Technology Co., Ltd. |
| Mfr. Part # | C945 |

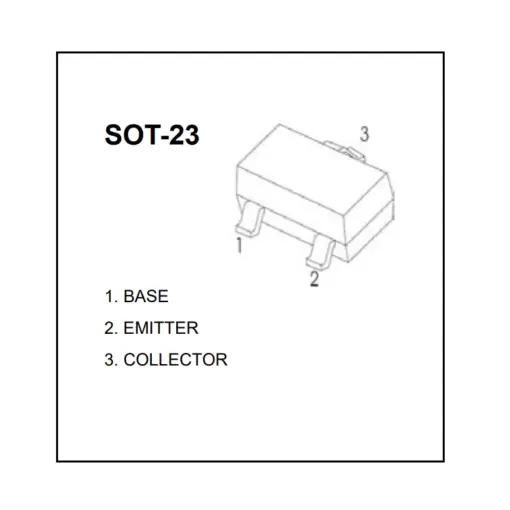

| Package | SOT-23 |
| Datasheet | C945 |
| Description | 100nA 50V 200mW 200@1mA,6V 150mA 150MHz 300mV@100mA,10mA NPN +150℃@(Tj) SOT-23 Bipolar Transistors – BJT ROHS |
Specifications
| Attribute | Value |
| Category | Triode/MOS Tube/Transistor/Bipolar Transistors – BJT |
| Datasheet | C945 |
| RoHS | |
| Collector Cut-Off Current (Icbo) | 100nA |
| Collector-Emitter Breakdown Voltage (Vceo) | 50V |
| Power Dissipation (Pd) | 200mW |
| DC Current Gain (hFE@Ic,Vce) | 200@1mA,6V |
| Collector Current (Ic) | 150mA |
| Transition Frequency (fT) | 150MHz |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib) | 300mV@100mA,10mA |
| Transistor Type | NPN |
| Operating Temperature | +150℃@(Tj) |
