NS8MT-E3/45 Diode 1000V 8A Through Hole TO-220AC
The NS8MT-E3/45 Rectifier Diode is a glass-passivated, high-efficiency silicon rectifier designed for general-purpose power rectification. With a maximum repetitive reverse voltage of 1000V and average forward current of 8A, it delivers reliable high-voltage performance in demanding AC-DC conversion systems.
Housed in a rugged TO-220AC through-hole package, the diode offers excellent thermal conductivity and long-term reliability. It is optimized for low forward voltage drop, fast thermal response, and strong surge current handling, making it ideal for SMPS, battery chargers, welding machines, inverters, and industrial power supplies.
Features:
- High voltage capability: 1000V.
- High average forward current: 8A.
- Low forward voltage drop.
- High surge current capability.
- Glass passivated junction for reliability.
- Excellent thermal performance.
- Lead-free, RoHS compliant.
- Through-hole TO-220AC package.
Specifications:
| Parameter | Specification |
|---|---|
| Part Number: | NS8MT-E3/45 |
| Diode Type: | Standard Recovery Rectifier |
| Package: | TO-220AC |
| Repetitive Reverse Voltage (VRRM): | 1000V |
| Average Forward Current (IF(AV)): | 8A |
| Surge Forward Current (IFSM): | 125A |
| Forward Voltage (VF): | 1.0 – 1.3V |
| Reverse Recovery Time: | Standard |
| Junction Temperature: | –55°C to +150°C |
| Mounting: | Through Hole |
| Compliance: | RoHS |

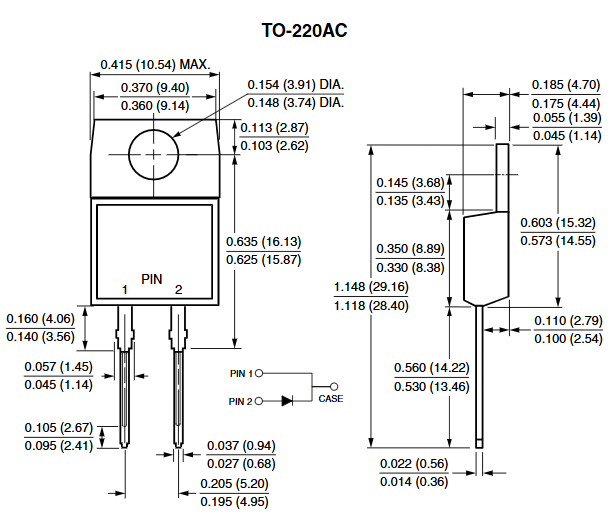

Pinout:
| Pin | Description |
|---|---|
| 1 | Anode (A) |
| 2 | Cathode (K) |
Applications:
- General purpose rectification of power supplies.
- Inverters.
- Converters.
- Freewheeling diodes application.
Packages:
- 1x NS8MT-E3/45 Diode 1000V 8A Through Hole TO-220AC.
