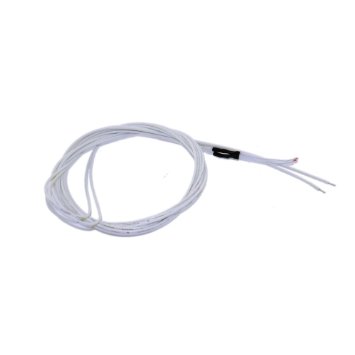

NTC 100K Thermistor with 1M Cable for 3D Printer

Description:

• Resistance: 100Kohm + / -1%
• B value: 3950 + / -1%
• Accuracy: + / -1%
• Material: Teflon wire conductors
• Thermistor head diameter: 1.8mm
• Glass packaging: 2.0 + / -0.2mm
• Lead length: 32 + / -5mm
• Operating temperature range:-50 to +260°C
• Thermal time constant (τ): τ=10 – 17 s ( in still air)
• Thermal dissipation constant (δ): δ=1.1 – 1.6mW / °C
• Insulation resistance 50MΩ or over by DC500V megge (between glass and lead wire)
