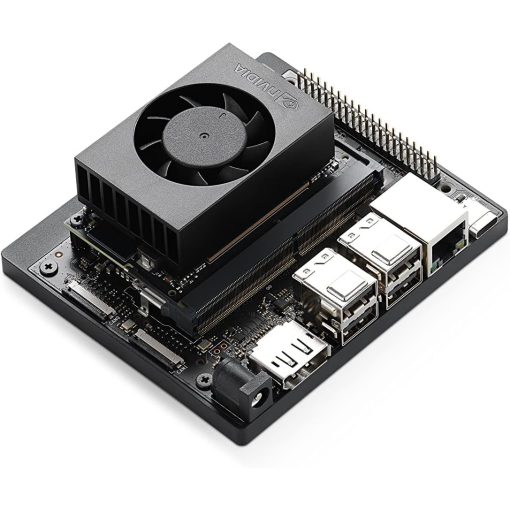

NVIDIA Jetson Orin Nano Developer Kit 8GB
The NVIDIA Jetson Orin Nano Developer Kit 8GB offers unmatched performance for developers, researchers, and makers looking to build AI-powered applications at the edge. Featuring the NVIDIA Orin Nano 8GB module with Ampere architecture, this kit is ideal for deploying AI models, running complex machine learning tasks, and handling demanding robotics applications.
Equipped with a 6-core ARM Cortex-A78AE CPU and a GPU with 1024 CUDA cores and 32 tensor cores, the Jetson Orin Nano achieves 67 TOPS (Tera Operations Per Second), making it one of the most powerful yet efficient AI development platforms for edge devices. The 8GB LPDDR5 memory ensures fast data processing, and the 19V DC power adapter provides ample power for continuous, high-performance operations.

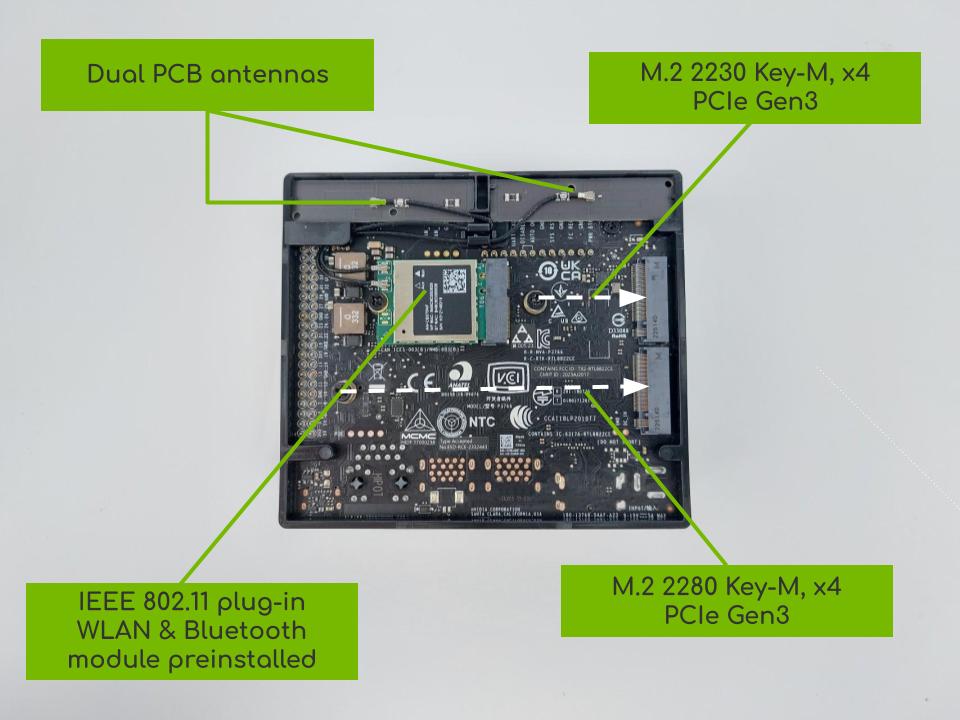

In addition to its impressive computational power, the Jetson Orin Nano Developer Kit comes with a pre-installed wireless module supporting IEEE 802.11 (Wi-Fi) and Bluetooth, enabling seamless wireless connectivity for IoT applications, remote communication, and more.
Developers can leverage the JetPack SDK and NVIDIA’s extensive AI software ecosystem, including NVIDIA Isaac for robotics, Metropolis for vision AI, and TAO Toolkit for fine-tuning pretrained models. The kit includes a reference carrier board with multiple connectivity options, including M.2, USB 3.2 Gen2, Gigabit Ethernet, DisplayPort, and more, to facilitate seamless integration with various peripherals.
Whether for autonomous systems, industrial IoT, or smart cameras, the Jetson Orin Nano is the ideal solution for the next generation of AI-powered devices and robotics.
Features:
- Up to 67 TOPS AI performance with NVIDIA Ampere GPU featuring 1024 CUDA cores and 32 Tensor cores.
- 6-core Arm Cortex-A78AE v8.2 64-bit CPU at 1.7 GHz for efficient multitasking.
- 8 GB 128-bit LPDDR5 memory delivering 102 GB/s bandwidth for intensive workloads.
- Dual MIPI CSI-2 camera connectors for advanced multi-sensor vision.
- Four USB 3.2 Gen2 ports, Gigabit Ethernet, and DisplayPort 1.2 for comprehensive connectivity.
Specifications:
| Parameter | Value |
|---|---|
| AI Performance | 67TOPS |
| GPU | 1024-coreNVIDIA®AmpereArchitecturewith32TensorCores |
| CPU | 6-coreArm®Cortex®-A78AEv8.264-bitCPU1.7GHz,1.5MBL2+4MBL3 |
| Memory | 8GB128-bitLPDDR5,102GB/s |
| Storage | microSDslot,M.2KeyMx4PCIeGen3,M.2KeyMx2PCIeGen3 |
| Video Encode | 1x1080p30(H.265) |
| Video Decode | 1x4K60(H.265),2x4K30(H.265),5x1080p60(H.265),11x1080p30(H.265) |
| USB Ports | 4xUSB3.2Gen2Type-A,1xUSBType-C(UFP) |
| Networking | 1xGigabitEthernet |
| Display | 1xDisplayPort1.2(+MST) |
| Camera Interfaces | 2xMIPICSI-222-pin |
| Expansion Header | 40-pin(UART,SPI,I2S,I2C,GPIO) |
| Power Consumption | 7-25W |
| Power Supply | 19VDC |
| Dimensions | 103mmx90.5mmx34.77mm |
Configuration:
Applications:
- Generative AI prototyping for vision-language models in smart devices.
- Autonomous robotics development with real-time sensor fusion.
- Edge video analytics for security cameras and retail monitoring.
- Multimodal AI agents in healthcare for sensor-based diagnostics.
- Drone navigation and aerial inspection systems.
Package Include:
- 1x NVIDIA Jetson Orin Nano.
- 1x Type B (US, JP) Power Cable.
- 1x Type I (CN) Power Cable.
- 1x 19V power adapter
- 1x Quick Start and Support Guide.
