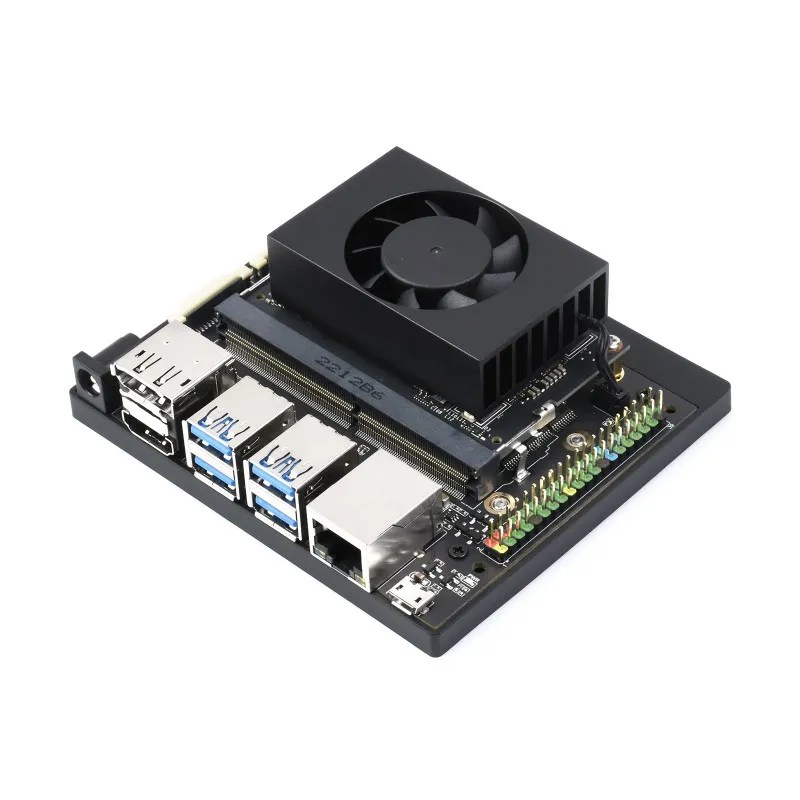

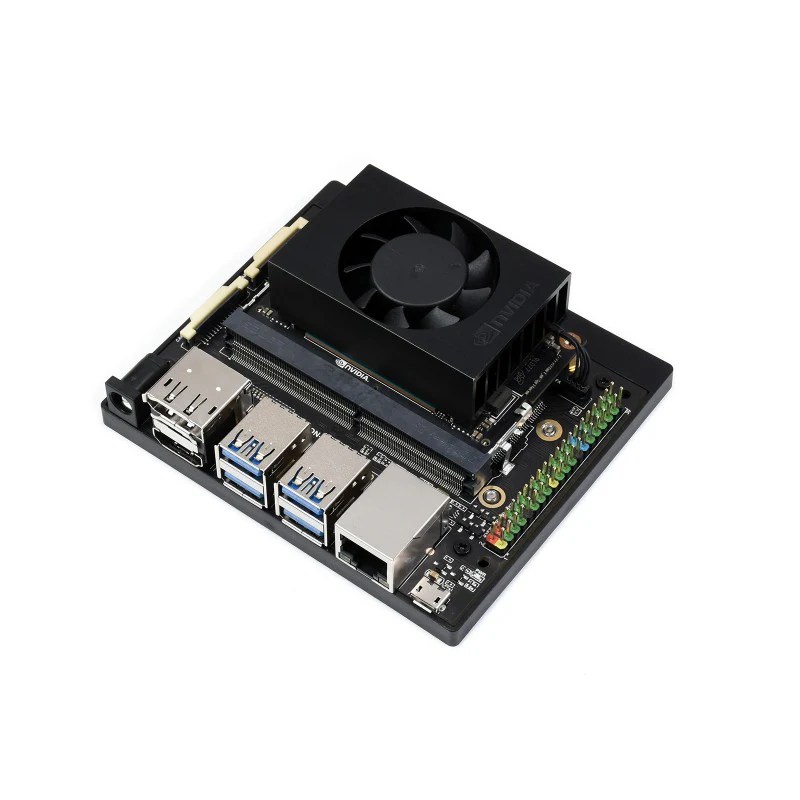

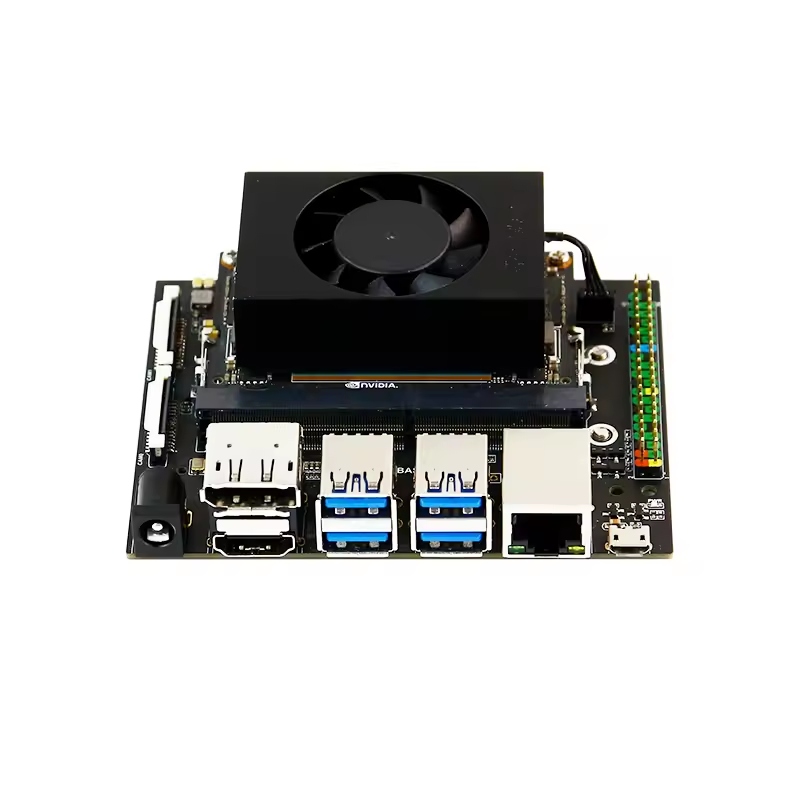

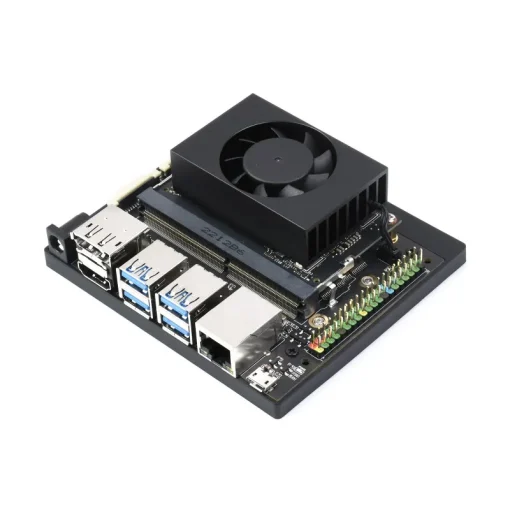

NVIDIA Jetson XAVIER NX Developer Kit 8GB
The NVIDIA Jetson XAVIER-NX Developer Kit 8GB is a powerful AI edge computing platform designed for developers building advanced robotics, computer vision, and embedded AI applications. Powered by the NVIDIA Xavier system-on-module, this developer kit delivers exceptional performance in a compact form factor while maintaining energy efficiency suitable for edge devices and embedded systems.
At the core of the system is a 6-core NVIDIA Carmel ARM v8.2 64-bit CPU paired with a 384-core NVIDIA Volta GPU with 48 Tensor Cores, enabling high-performance parallel processing for AI workloads. The platform can deliver up to 21 TOPS of AI performance, making it suitable for demanding machine learning and deep neural network inference task
Features:
- 384-core NVIDIA Volta GPU with 48 Tensor Cores for up to 21 TOPS AI performance.
- 6-core Carmel ARM CPU at 1.9GHz for efficient general-purpose computing.
- 8GB 128-bit LPDDR4x memory with 59.7GB/s bandwidth.
- Integrated 128GB SSD for high-capacity storage and fast boot times.
- Supports up to 4x MIPI CSI cameras and 3x 4K60 video streams.
- Gigabit Ethernet, 4x USB 3.1 Gen1, HDMI 2.0, and DisplayPort 1.4 connectivity.
- Configurable power profiles: 10W, 15W, 20W for optimized deployment.
Specifications:
| Parameter | Value |
|---|---|
| CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit |
| GPU | 384-core Volta with 48 Tensor Cores |
| Memory | 8GB 128-bit LPDDR4x 59.7GB/s |

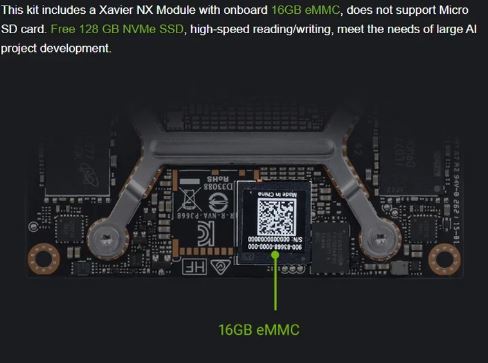

| Storage | 16GB eMMC 5.1 + 128GB NVMe SSD |
| AI Performance | Up to 21 TOPS |
| DL Accelerator | 2x NVDLA |
| Vision Accelerator | 2x PVA |
| Video Capabilities | 2x 4K60 | 6x 4K60 | 12x 1080p60 (H.265/H.264) |
| Ethernet | 10/100/1000 BASE-T |
| USB Ports | 4x USB 3.1 Type A, 1x USB 2.0 Micro-B |
| Display | HDMI 2.0 + DisplayPort 1.4 |
| Camera | 2x MIPI CSI-2 |
| Expansion | M.2 Key E, M.2 Key M, 40-pin GPIO |
| Power Input | 19VDC |
| Power Modes | 10W / 15W |
| Module Dimensions | 70mm x 45mm |

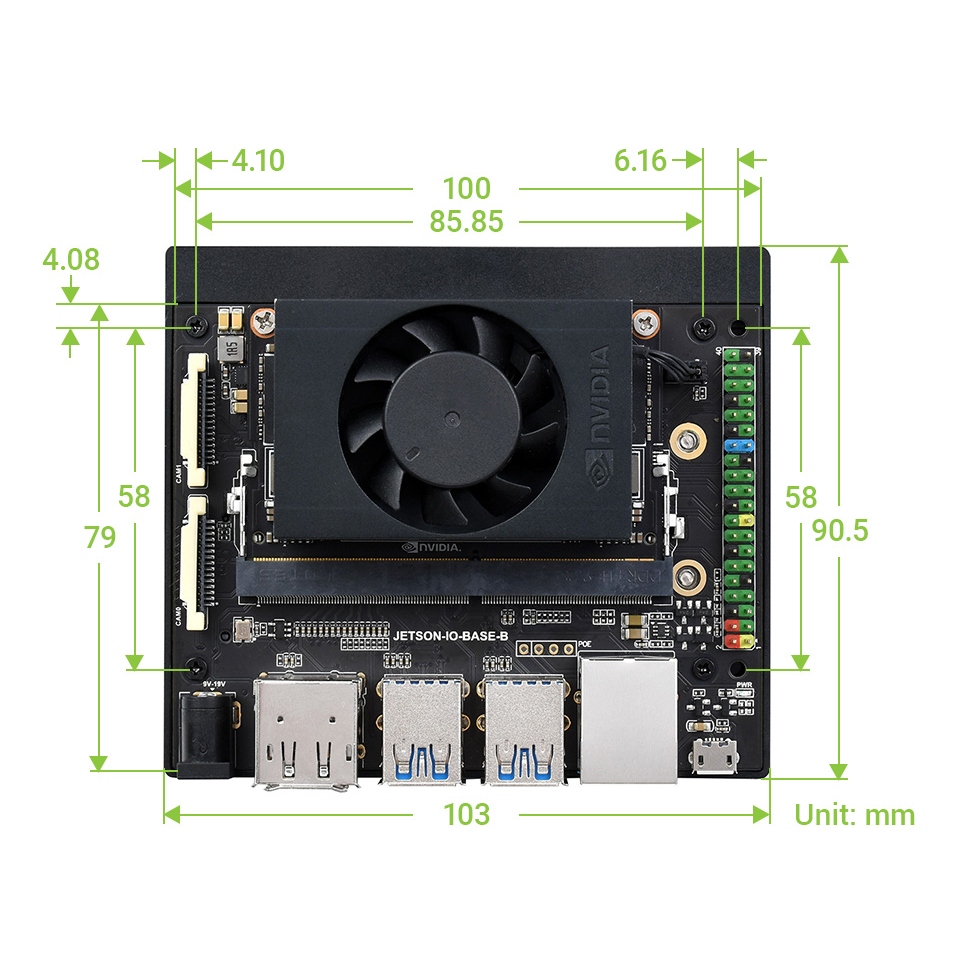

| Carrier Dimensions | 100mm x 79mm x 35mm |

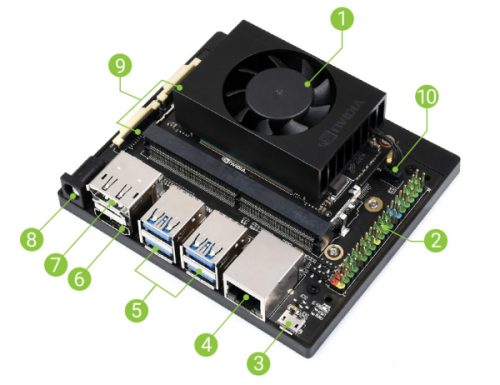

Configuration:
- Jetson Xavier NX Module
- 40PIN GPIO Headers
- Micro USB Interface: For USB data transmission
- Gigabit Ethernet Port: 10/100/1000Base-T self-adaptive Ethernet port
- 4x USB 3.0 port
- HDMI Interface
- DisplayPort Interface
- DC Power Port: For 19V power input
- 2-Ch MIPI CSI Camera Port
- Fan Header
Applications:
- Autonomous robots and drones with real-time navigation.
- Edge AI smart cameras for surveillance and analytics.
- Medical imaging and diagnostic devices.
- Industrial automation and predictive maintenance.
- Retail analytics and self-checkout systems.
- Generative AI inference at the edge.
- AR/VR prototypes and digital twin.
Package Include:
- 1x NVIDIA Jetson Xavier NX 8GB Module with heatsink and cooling fan.

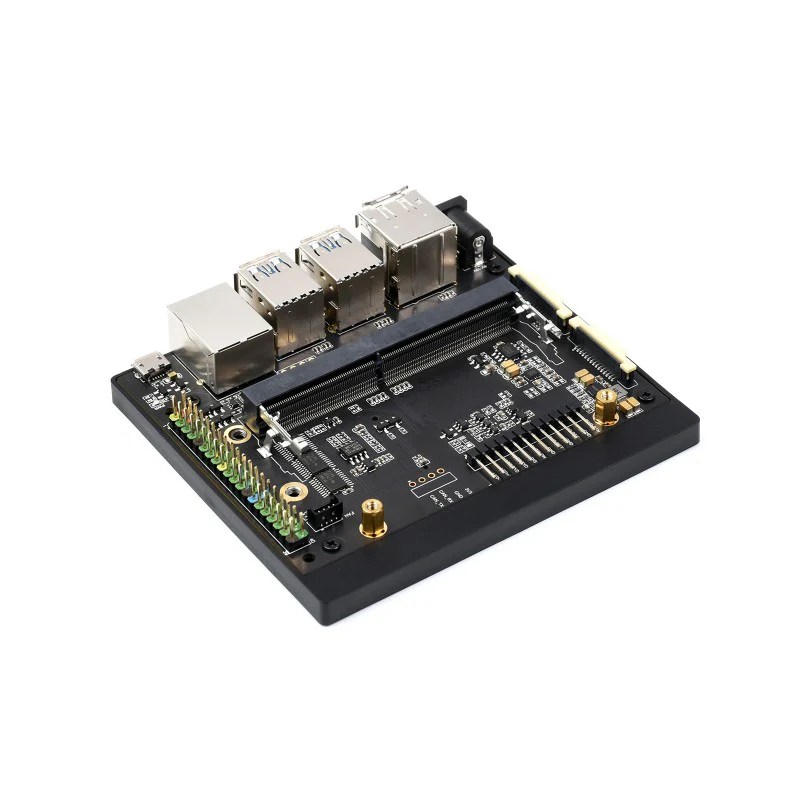

- 1x Jetson-IO-BASE-B Carrier Board.

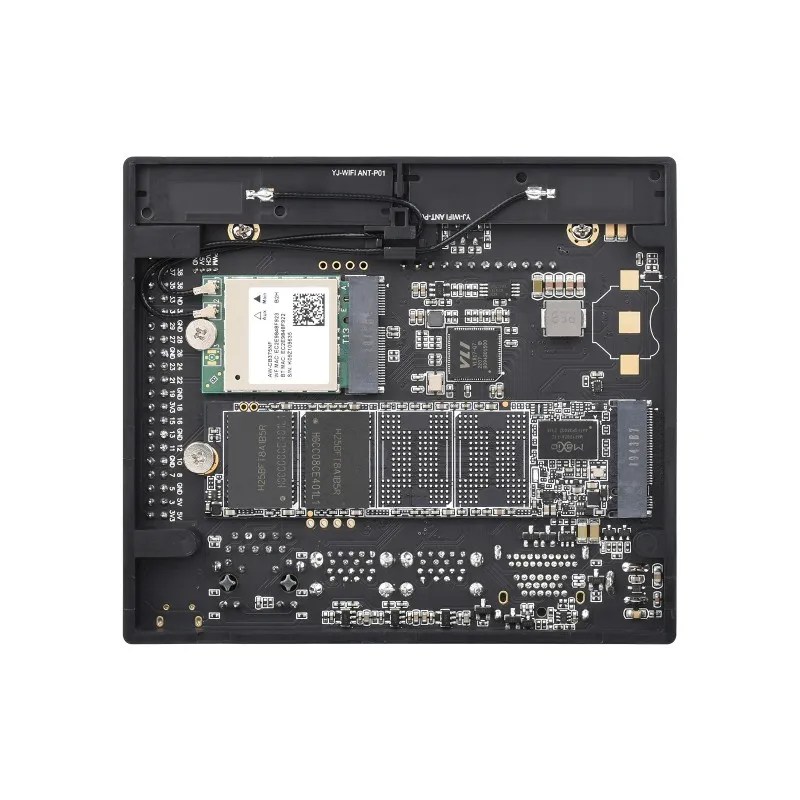

- 1x 128GB NVMe M.2 SSD(Pre-installed).
- 1x 19V Power Adapter.
- 1x Ethernet Cable.

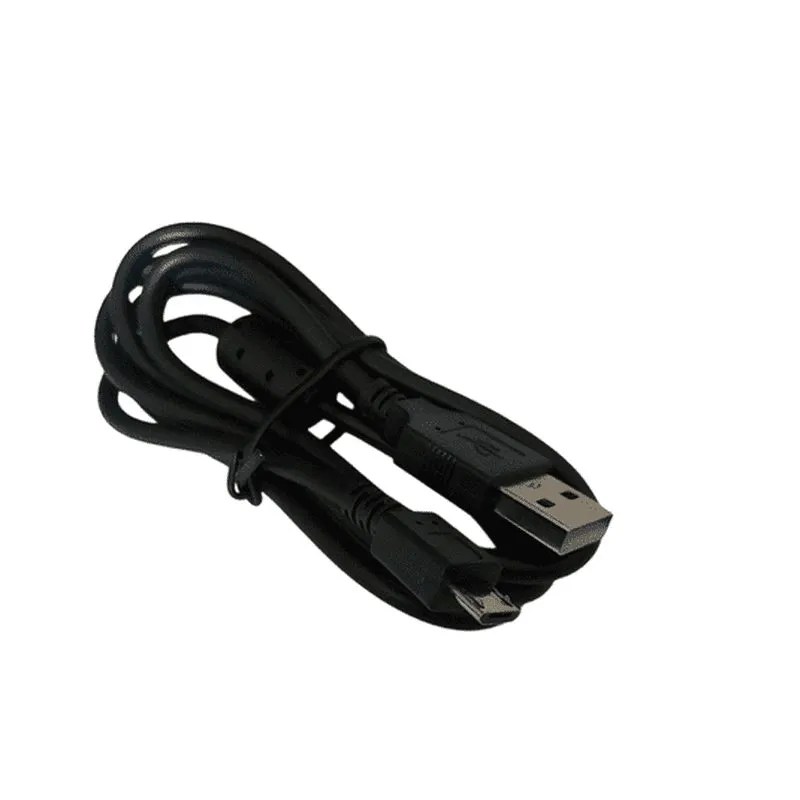

- 1x USB Micro-B Cable.
