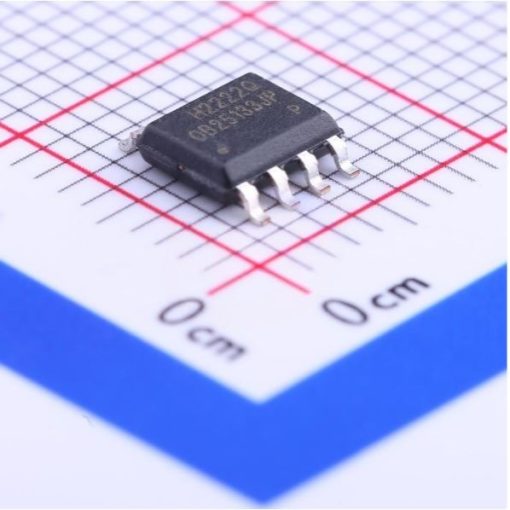

OB25133JPA SOP-7 AC-DC Controllers and Regulators SMD
The OB25133JPA SOP-7 AC-DC Controllers and Regulators SMD, manufactured by On-Bright Electronics, is a high-performance integrated circuit designed for efficient power management in low-power applications. Housed in a compact SOP-7 surface-mount package, this controller is tailored for space-constrained designs, making it an excellent choice for modern electronics such as battery chargers, adapters, and small appliance power supplies. Its advanced primary-side sensing technology eliminates the need for opto-couplers and external voltage references like the TL431, simplifying circuit design, reducing component count, and lowering overall production costs.
Features:
- High-precision constant current (CC) and constant voltage (CV) regulation.
- Primary-side sensing technology, eliminating the need for opto-couplers and TL431.
- Integrated PWM controller for efficient power conversion.
- Over-voltage protection (OVP), over-current protection (OCP), and thermal shutdown.
- Compact SOP-7 package for space-saving designs.
- Wide input voltage range, typically 85VAC to 265VAC.
- High efficiency, minimizing heat generation and energy loss.
- RoHS-compliant for environmentally friendly manufacturing.
Specifications:
| Parameter | Value |
|---|---|
| Package | SOP‑7 |
| Switch Type | 800 V internal BJT switch |
| Control Modes | Primary-side CC/CV regulation, PWM/PFM |
| Output Power | Up to ~5 W |
| Standby Power | <75 mW |
| Protections | UVLO, OVP, OCP, SCP, OTP, cycle-by-cycle |
| Operation Input | Universal AC (85 – 265 VAC) |
| Compliance | RoHS, lead-free |
Pin Configuration:
Applications:
- AC/DC adapters and chargers for cell phones and cameras.
- LED driver modules requiring CC/CV regulation.
- Power supplies for TVs, PCs, and appliances.
- Auxiliary power units in industrial systems.
- Standalone CC/CV power-stage designs.
Package Include:
1x OB25133JPA SOP-7 AC-DC Controllers and Regulators SMD
