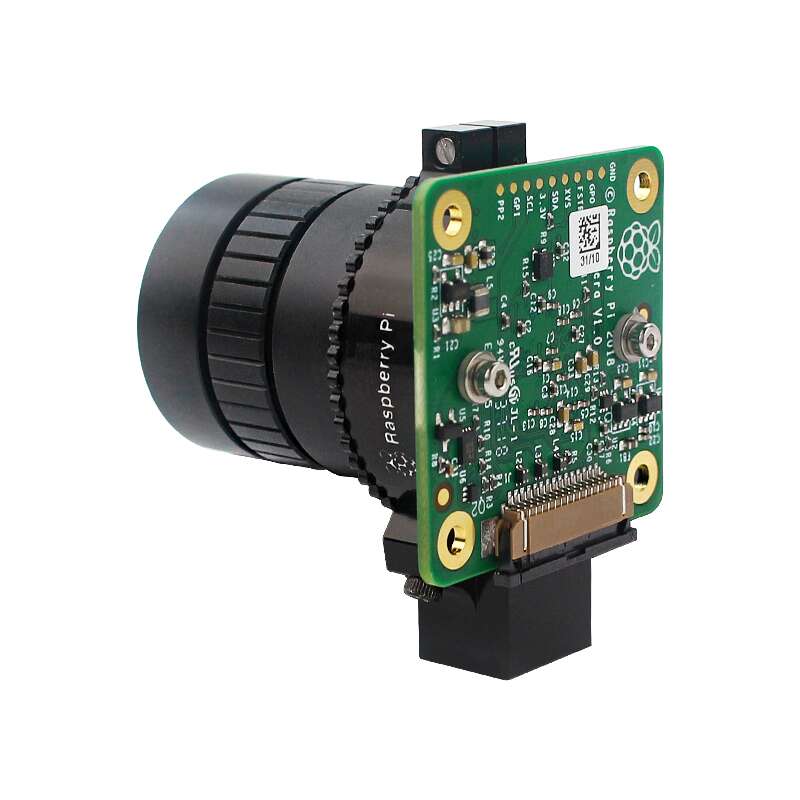

Official Raspberry Pi HQ Camera 12.3MP with CGL 6mm CS Fixed IR 3.0 Megapixel CCTV Lens

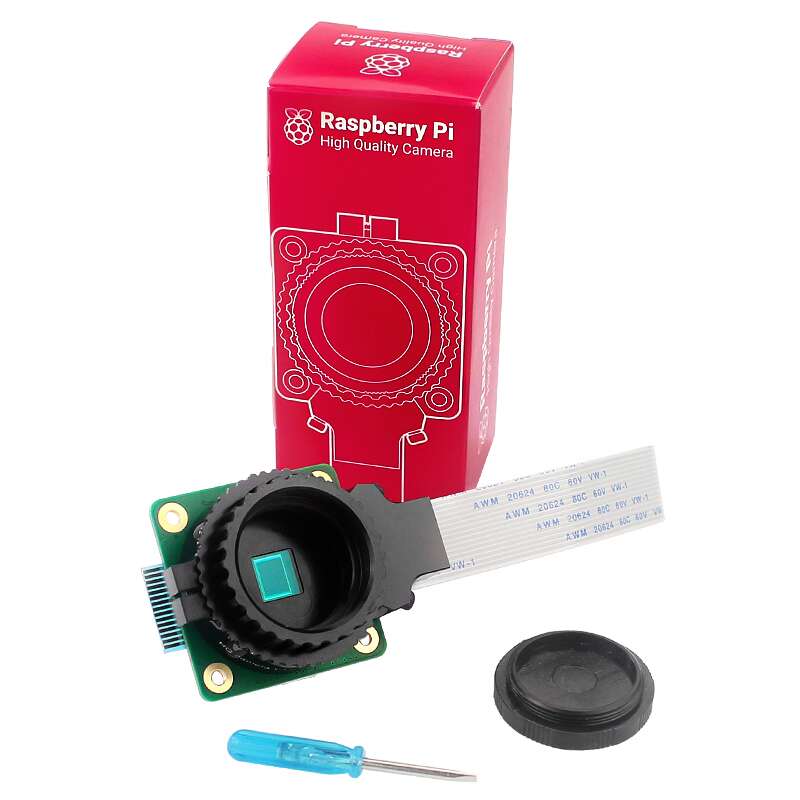

Raspberry Pi High-Quality Camera

12.3 megapixel Sony IMX477 sensor, 7.9mm diagonal image size, and back-illuminated sensor architecture, with adjustable back focus and support for C- and CS-mount lenses

Interchangeable lenses

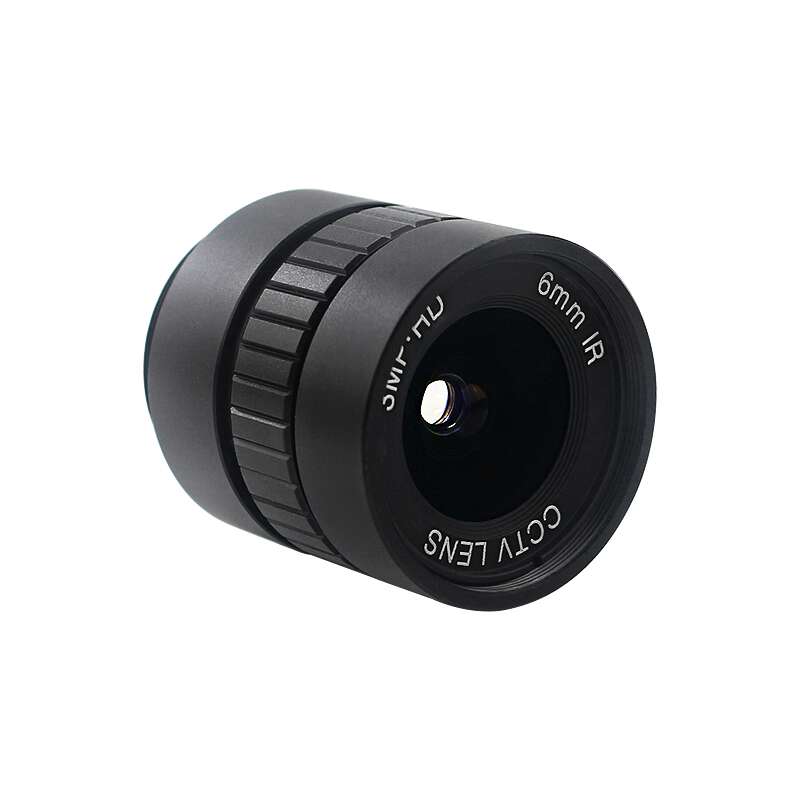

The High-Quality Camera is designed to accept CS-mount lenseswith the supplied adapter. The CGL 6 mm CS-mount is examples of third-party products compatible with the High-Quality Camera; see step-by-step instructions for fitting this CS-mount Lens .

Operating instructions

For a guide to getting your camera up and running, including back focus adjustment, tripod mounting, connecting your camera to a Raspberry Pi computer, and operating camera software in Raspberry Pi OS to capture images.

• Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size
• Output: RAW12/10/8, COMP8
• Back focus: Adjustable (12.5 mm–22.4 mm)
• Lens standards: C-mount, CS-mount (CCS adapter included)
• IR cut filter: Integrated
• Ribbon cable length: 200 mm
• Tripod mount: 1/4”-20

All models of Raspberry Pi Zero require a Raspberry Pi Zero camera cable to connect to the Raspberry Pi High Quality Camera; the standard cable supplied with the camera is not compatible with the smaller Raspberry Pi Zero camera connector. Suitable cables are available at low cost from many Raspberry Pi Approved Resellers, and are supplied with the Raspberry Pi Zero Case.
