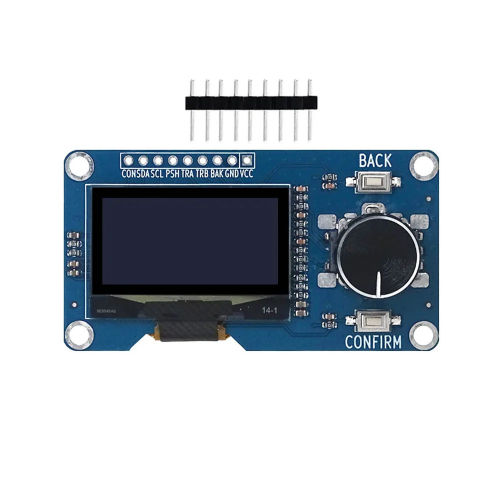

OLED Display I2C 0.9 Inch Module with EC11 Rotary Encoder
The Display I2C 0.96 Inch Module with EC11 Rotary Encoder is a versatile and compact component designed for electronics enthusiasts, hobbyists, and professionals seeking an integrated solution for display and user input. This module combines a 0.96-inch organic light-emitting diode (OLED) display with a resolution of 128×64 pixels and an EC11 incremental rotary encoder, offering both high-quality visual output and precise control in a single package.
Features:
- 0.91-inch monochrome OLED display with 128×32 pixel resolution.
- I2C interface for easy integration with microcontrollers.
- SSD1306 display driver ensures reliable performance.
- EC11 rotary encoder with push-button functionality.
- Durable construction suitable for various environments.
Pin Configuration:
| Pin Label | Function |
|---|---|
| CON | a connector pinout label. |
| SDA | I2C data line — connect to MCU SDA pin. |
| SCL | I2C clock line — connect to MCU SCL pin. |
| PSH | Encoder push button output (center press). |
| TRA | Rotary encoder output A. |
| TRB | Rotary encoder output B. |
| BAK | “Back” button — labeled as such on the module. |
| GND | Ground — connect to system GND. |
| VCC | Power supply input — 3.3V. |
Specifications:
Specifications:|
Parameter |
Value |
|---|---|
|
Display Type |
OLED |
|
Display Size |
0.96 inch |
|
Resolution |
128×64 pixels |
|
Display Driver |
SSD1306 |
|
Interface |
I2C (IIC) |
|
Dimension |
65mm x 35mm |
|
Operating Voltage |
3.3V |
|
Encoder Type |
EC11 Incremental Rotary Encoder |
Applications:
- Menu navigation in embedded systems for user-friendly interfaces.
- Parameter adjustment in control panels for automation projects.
- User interfaces for IoT devices to display and control data.
- Portable measurement instruments with interactive displays.
- Interactive art installations requiring visual and tactile input.
- Educational projects for learning about OLED displays and rotary encoders.
Package Include:
- 1x OLED Display I2C 0.96 Inch Module with EC11 Rotary Encoder.
- 1x Male pin Header 9 pins.
