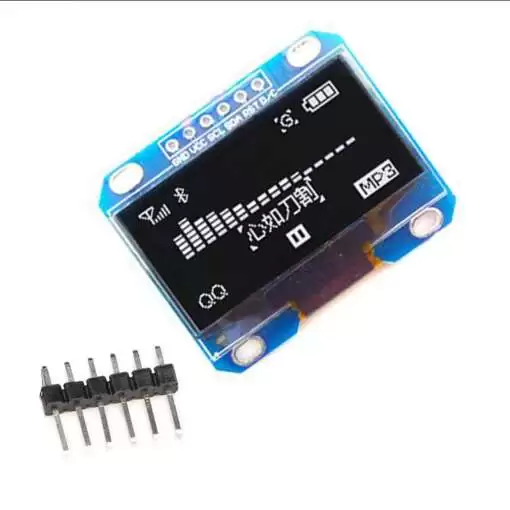

OLED Display SPI 6 Pin 1.3″ 128×64 – Unsoldered

325.00 EGP

Buy Now
Availability: In Stock
SKU:N/A
Features:-
  • Work perfectly well without the need for a backlight.
  • 128*64 high resolution, ultra-wide viewing angle
  • Super low power consumption–only 0.08W when the whole screen lights up and 0.06W when displaying characters
  • Fully compatible with multiple controlling chips including Arduino and more.
  • Support a wide range of voltage input
Specifications
  • Working voltage: from 3.3 V to 5.0 V
  • Driver: SH1106
  • Communication: SPI, only two I/O Port to Control
  • Fully compatible with Arduino
  • Display type: OLED
  • Diagonal: 1.3 Inch
  • Resolution: 128 x 64 px
  • Characters color: White, Blue (According to your choice)
  • The viewing angle of above 160 °
  • Operating temperature: -20 °C to 70 °C
  • Dimensions: 37 x 32 mm
Pin Description:

The module has straight gold pin connectors – 2.54 mm raster

  • GND: power ground.
  • VCC: 3.3V or 5V power supply.
  • SCL: CLK Clock.
  • SDA: MOSI data.
  • RST: Reset.
  • DC: Data / Command.
Package Included:

1x OLED Display 6 Pin 1.3″ 128×64 (Blue or White)

1x 6 Pin header straight

Characters color

White, Blue
