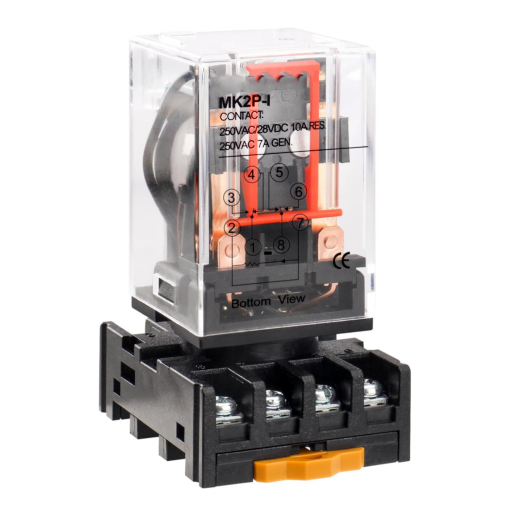

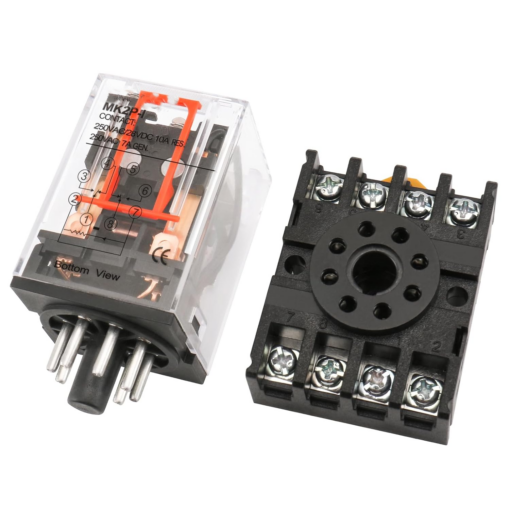

OMRON MK2P-I DPDT 60VDC Electromagnetic Relay with 8-Pin Socket: High-Voltage Switching for Industrial Applications
Features:
- Electromagnetic Relay: The OMRON MK2P-I is an electromagnetic relay designed for reliable and precise switching in industrial environments.
- DPDT Configuration: Features a Double Pole Double Throw (DPDT) contact arrangement, offering versatile switching capabilities.
- 60VDC Coil: Designed to operate efficiently with a 60VDC coil for applications requiring higher voltage.
- High Contact Rating: The relay can handle up to 10A of current, suitable for both AC and DC loads, ensuring powerful and reliable switching.
- Wide Voltage Compatibility: Capable of switching voltages up to 220V DC and 400V AC, making it ideal for a variety of industrial systems.
- Socket Mounting: The relay is socket-mounted, simplifying installation and replacement, and ensuring secure electrical connections with its 8-pin octal socket.
- Fast Switching Times: Offers quick switching with a 30ms operate time and 20ms release time, which is crucial for time-sensitive control operations.
- Durable Contacts: The relay uses silver (Ag) contact material for enhanced conductivity and long-term reliability.
MK2P-I Electromagnetic Relay Specifications:
| Specification | Details |
|---|---|
| Coil Voltage | 6 to 60 VDC |
| Contact Arrangement | DPDT (Double Pole Double Throw) |
| Number of Pins | 8 |
| Contact Resistance | ≤100 mΩ |
| Contact Material | Silver Alloy |
| Rated Load | 10A at 250VAC; 10A at 28VDC (resistive) |
| Operate Time | Max. 30 ms (at rated voltage) |
| Release Time | Max. 20 ms (at rated voltage) |
| Insulation Resistance | Min. 100 MΩ at 500VDC |
| Dielectric Strength | 1,000VAC for 1 minute between contacts and coil |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Mounting Method | Plug-in (socket-mounted) |
| Dimensions (W x H x D) | 34.5 mm x 34.5 mm x 52.5 mm |
| Weight | Approximately 50g |
| Certifications | UL, CSA |
PF083A Relay Socket Specifications:
| Specification | Details |
|---|---|
| Mounting Method | DIN rail or surface mounting |
| Terminal Type | Screw terminals (standard) |
| Number of Pins | 8 |
| Rated Voltage | 300VAC |
| Rated Current | 10A (12A at 150VAC) |
| Wire Section | 0.5 mm² (AWG 20) to 2.5 mm² (AWG 14) |
| Operating Temperature | -25°C to +85°C |
| Dimensions (W x H x D) | 41 mm x 52 mm x 21 mm |
| Weight | Approximately 44g |
| Hold-down Clip Included | Yes |
Applications:
- Industrial Automation: Ideal for machinery control and automation processes.
- Switching Applications: Used in control panels for machines, pumps, and HVAC systems.
- Alarm Systems: Suitable for triggering alarms or control signals.
- Home Appliances: Integrated in devices like washing machines or HVAC systems.
- Heavy Equipment: Used in systems controlling motors, hoists, and cranes.
- Lighting Control: Applied in lighting systems for roads, tunnels, and warehouses.
- Textile and Woodworking Machines: Suitable for industrial equipment requiring high-power switching.
