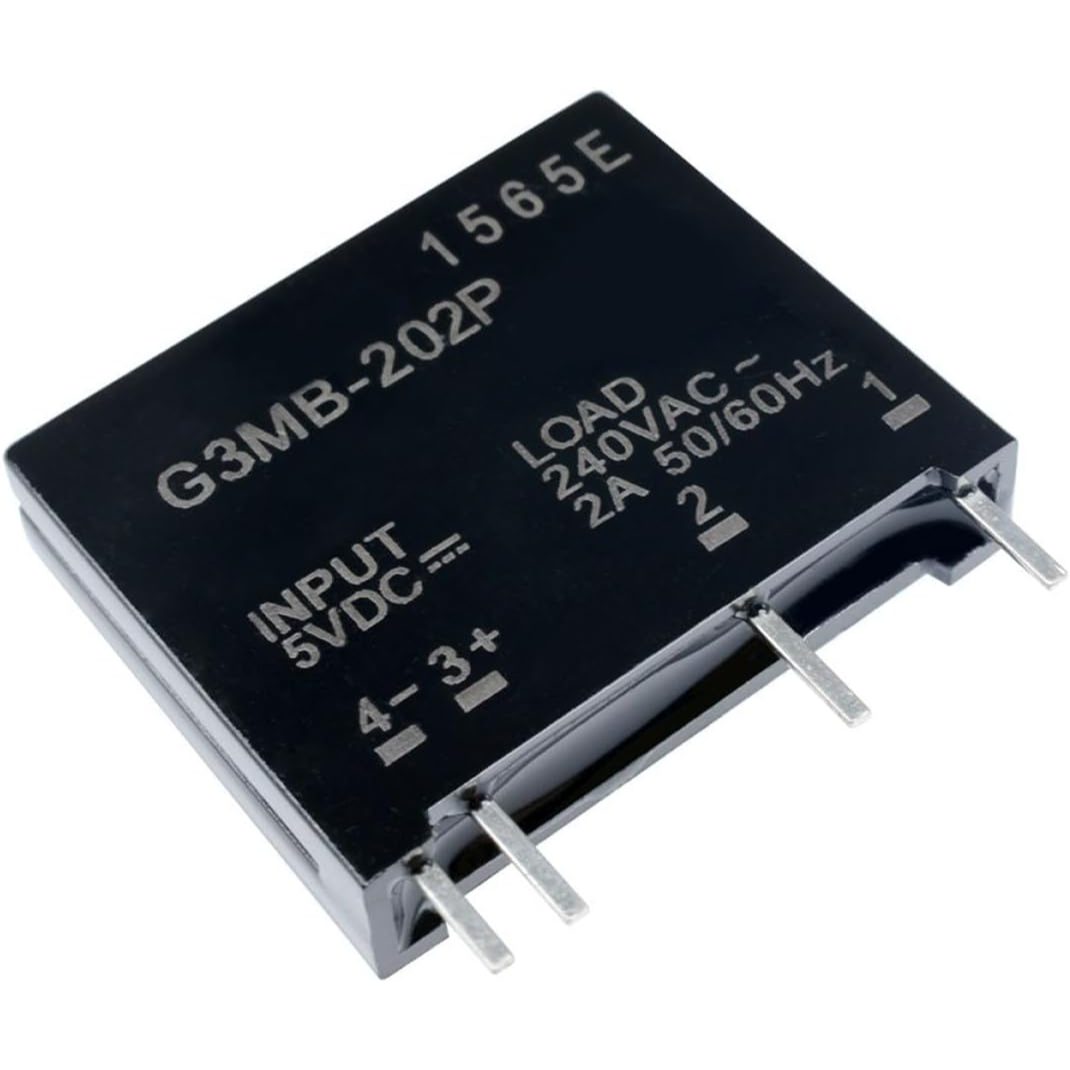

Omron G3MB-202P 5VDC Solid State Relay

Omron G3MB-202P 5VDC Solid State Relay

The Omron G3MB-202P 5VDC Solid State Relay stands as a versatile and economical solution for solid-state switching in electronic circuits, particularly suited for controlling AC loads with a DC input signal. This subminiature relay, housed in a single in-line package (SIP), occupies minimal PCB space—approximately three times smaller at the base compared to larger models like the G3M—making it ideal for high-density board designs in space-constrained environments.

Features:

• Compact SIP package for subminiature PCB mounting, ideal for high-density designs.
• Switches up to 2A at 100-240VAC with zero-cross function for reduced EMI.
• Built-in snubber circuit to protect against voltage transients from inductive loads.
• Integrated input resistor simplifies circuitry and eliminates external components.

Specifications:

Applications:

• Controlling AC appliances like lamps and heaters in home automation systems.
• Switching small motors or solenoids in industrial control panels.
• Interface with microcontrollers for embedded electronics projects.
• Temperature control in heating elements or thermostats.

Package Include:

1x Omron G3MB-202P 5VDC Solid State Relay.
