OMRON Power Relay G2R-2 110VAC 5A DPDT (2 Form C) 8Pin
OMRON G2R-2 A general-purpose DPDT PCB relay commonly used for switching AC/DC loads in industrial control panels, appliances, and power supplies.
75.00 EGP
Buy NowOMRON Power Relay G2R-2 110VAC 5A DPDT (2 Form C) 8Pin
The OMRON G2R-2 is a versatile, double-pole double-throw (DPDT) power relay designed for printed circuit board (PCB) mounting. Part of the best-selling G2R series, it is engineered for reliable switching of moderate power loads. It features a safety-oriented design with high dielectric strength between the coil and contacts, making it suitable for a wide range of industrial and commercial applications. The relay is available with both AC and DC operating coils, providing flexibility in control circuit design.
Features:
- DPDT (2 Form C) Contact Configuration.
- Safety-Oriented Design with High Dielectric Strength.
- Flux Protection Construction.
- PCB Mounting Terminals.
- RoHS Compliant.
- UL, CSA, and TÜV Recognized/Certified.
- High Reliability for General-Purpose Applications.
Specifications:
| Parameter | Specification | Condition / Note |
|---|---|---|
| Contact Configuration: | DPDT (2 Form C) | 2 poles, each with Normally Open & Normally Closed contacts |
| Contact Material: | Single | |
| Max. Switching Voltage: | 380VAC, 125VDC | |
| Rated Load (Resistive): | 5A @ 250VAC, 5A @ 30VDC | Inductive load (cos φ=0.4): 3.5A @ 250VAC, 2.5A @ 30VDC |
| Max. Switching Current: | 5A | |
| Rated Carry Current: | 5A | |
| Coil Voltage (Example): | 110VAC | Other voltages available: 12, 24, 100, 200/220VAC; 5-100VDC |
| Operate Time: | 15ms max. | |
| Release Time: | 10ms max. (AC coil) | |
| Electrical Durability: | 100,000 operations min. | Under rated resistive load |
| Mechanical Durability: | 10,000,000 operations min. (AC coil) | |
| Insulation Resistance: | 1,000MΩ min. | |
| Dielectric Strength: | 5,000VAC (coil to contacts) | |
| Operating Temperature: | -40°C to +70°C | With no icing |
| Terminal Type: | PCB Pin | |
| Weight: | 17g |

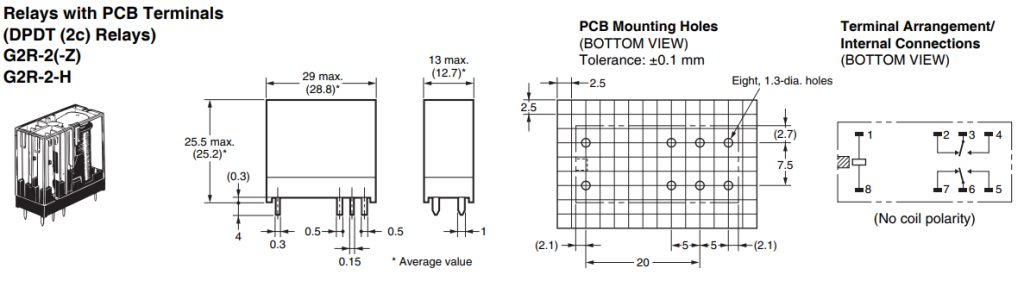

Pinout:
| Pin Number | Terminal Designation | Description / Internal Connection |
|---|---|---|
| 1 | A1 | Coil Terminal 1 (No Polarity) |
| 2 | 14 | Normally Closed (NC) Contact for Pole 1 |
| 3 | 12 | Normally Open (NO) Contact for Pole 1 |
| 4 | 11 | Common (COM) Contact for Pole 1 |
| 5 | 21 | Common (COM) Contact for Pole 2 |
| 6 | 22 | Normally Open (NO) Contact for Pole 2 |
| 7 | 24 | Normally Closed (NC) Contact for Pole 2 |
| 8 | A2 | Coil Terminal 2 (No Polarity) |
Applications:
- Industrial Control Panels.
- Appliance Control (e.g., HVAC, Washers).
- Power Supplies and UPS Systems.
- Lighting Control.
- Building Automation.
- General Purpose AC/DC Load Switching.
Packages:
- 1x OMRON Power Relay G2R-2 110VAC 5A DPDT (2 Form C) 8Pin.
