Specification:
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 12V DC |
| Contact current max. | 5A |
| AC contacts rating @R(at resistive load) | 5A / 250V AC |
| DC contacts rating @R(at resistive load) | 5A / 30V DC |
| Switched voltage | max. 125V DC, max. 380V AC |
| Relay variant | miniature, monostable |

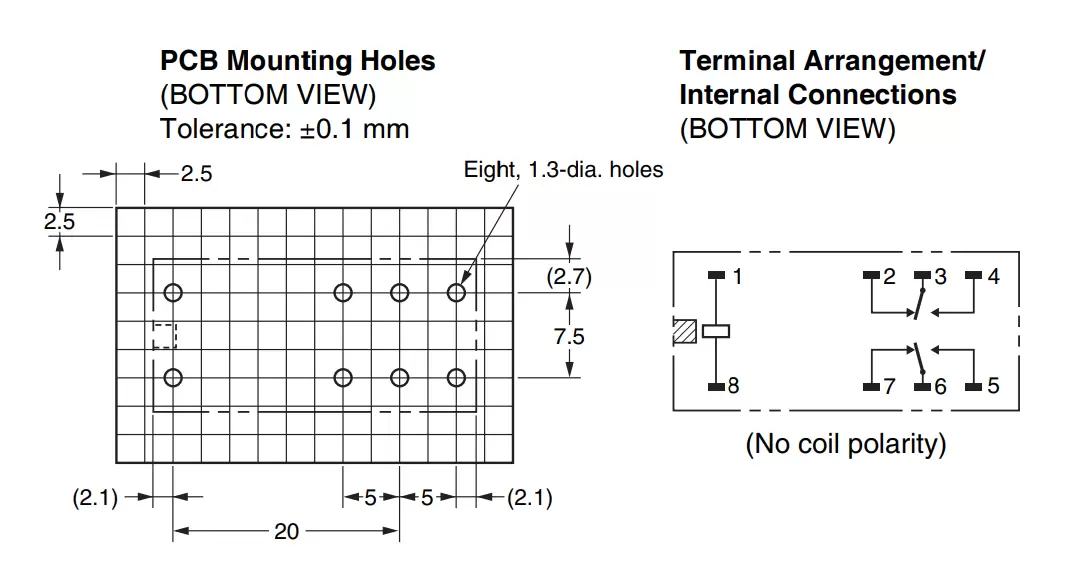

| Mounting | PCB |
| Coil resistance | 275Ω |
| Operate time | 15ms |

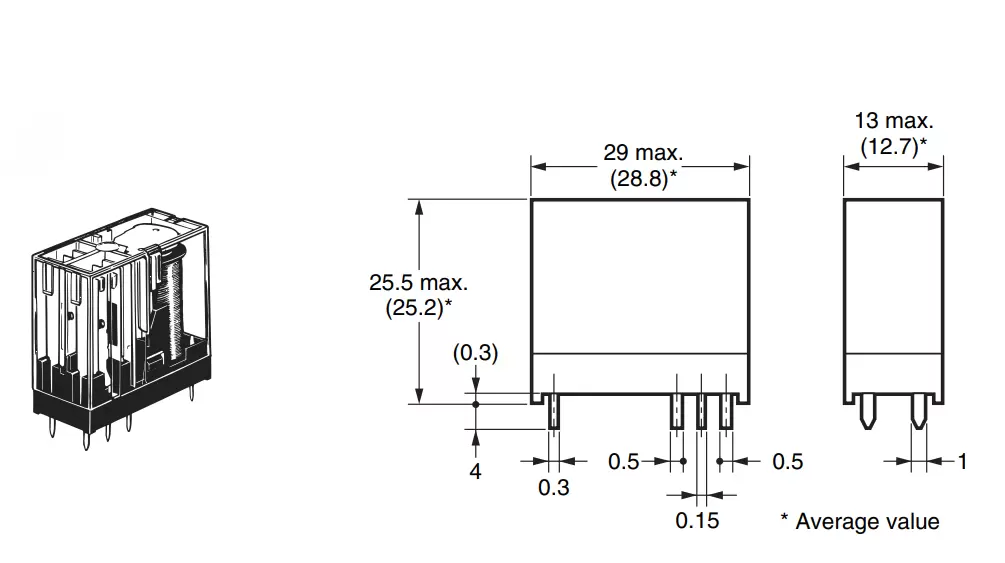

| Body dimensions | 29x13x25.5mm |
| Release time | 5ms |
| Operating temperature | -40…70°C |
| Relay series | G2R |
| Contact resistance | 50mΩ |
Omron Electronics G2R-2-DC12
