ON/OFF Switch KCD1 2 Pins
Features:
- Compact Design: Measuring 17mm x 11mm, this switch is ideal for applications with limited space.
- Durable Construction: Made with a nylon 66 housing and button, ensuring longevity and resistance to wear.
- High Switching Capacity: Rated for 6A at 250VAC and 10A at 125VAC, suitable for various household and industrial applications.
- Easy Installation: Designed for panel mounting with clear ON/OFF markings for user-friendly operation.
Specifications:
| Attribute | Value |
|---|---|
| Switch Type | SPST (Single Pole Single Throw) Rocker Switch |
| Dimensions (L x W) | 17mm x 11mm |
| Housing Material | Nylon 66 |
| Button Material | Nylon 66 |
| Terminal Type | Brass with silver plating |
| Voltage Rating | 6A at 250VAC / 10A at 125VAC |
| Contact Resistance | ≤50mΩ |
| Operating Temperature | -25°C to +85°C |
| Dielectric Strength | 1500VAC for 1 minute |
| Mechanical Life | ≥100,000 cycles |
| Electrical Life | ≥10,000 cycles |
| Certifications | CE, CQC, SGS |
Applications:
- Home Appliances: Ideal for controlling power in devices like toasters, blenders, and fans.
- Industrial Equipment: Suitable for machinery requiring reliable on/off switching.
- Consumer Electronics: Perfect for gadgets such as power strips and chargers.
- Automotive Applications: Can be used in vehicles for controlling auxiliary equipment.

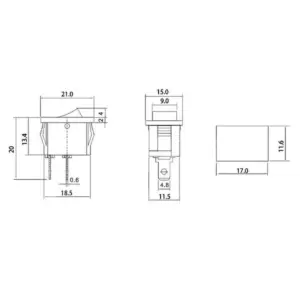

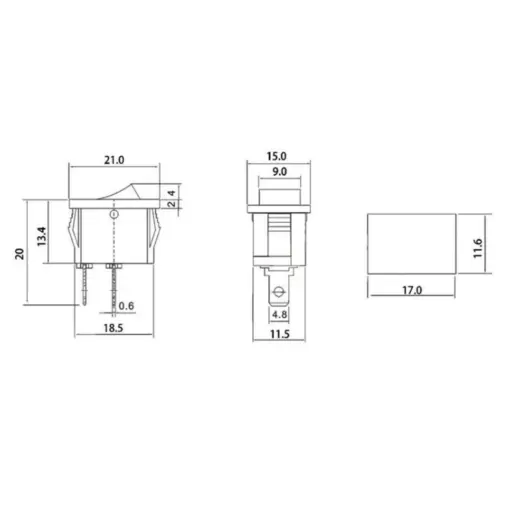

Drawing:
