OpenCV AI Camera 5V 2A Kit: OAK—1
OpenCV AI Camera Compact edge AI camera module for real-time computer vision and on-device inferencing (depth/AI) via the Myriad X VPU.
11,500.00 EGP
Buy Now

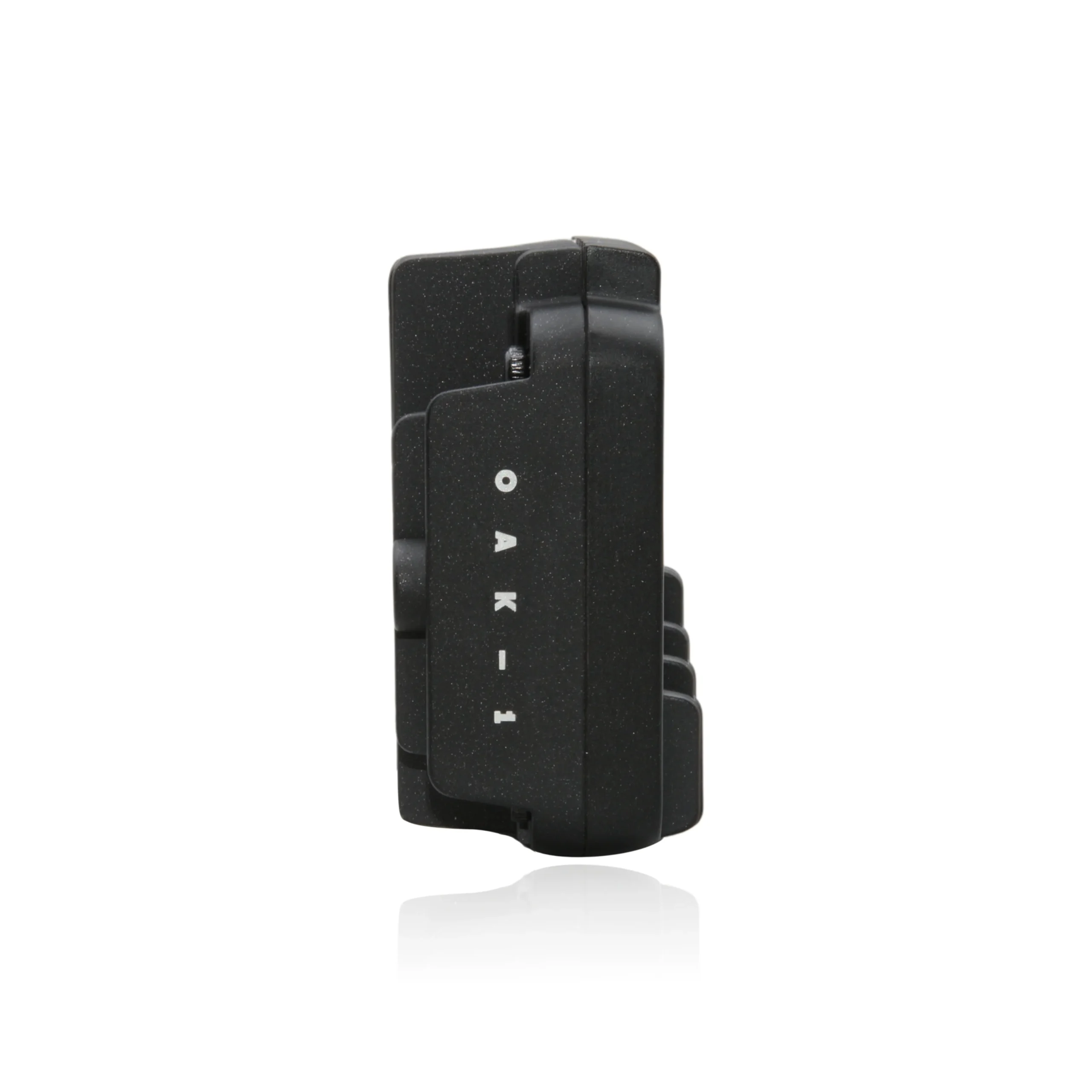

OpenCV AI Camera 5V 2A Kit: OAK—1

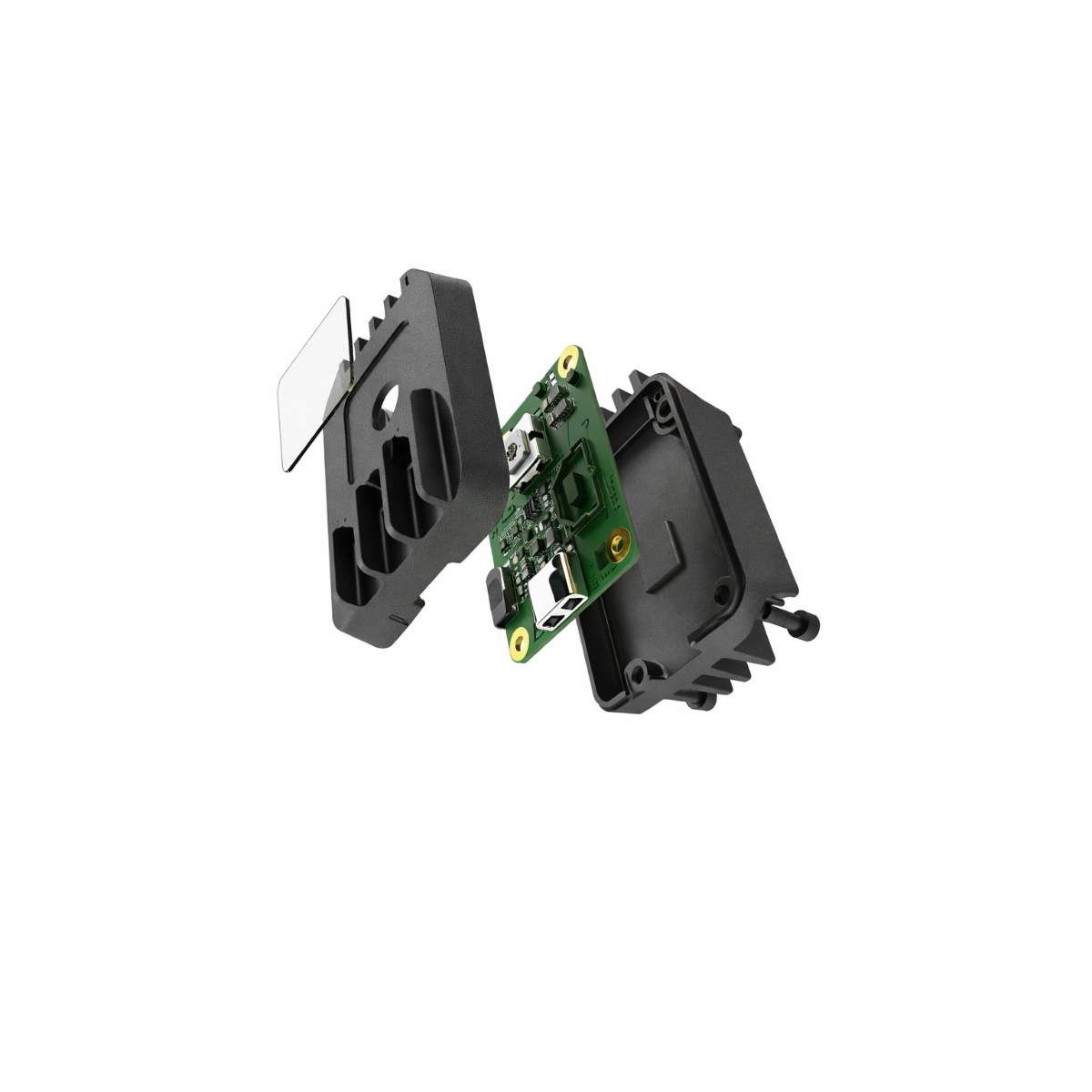

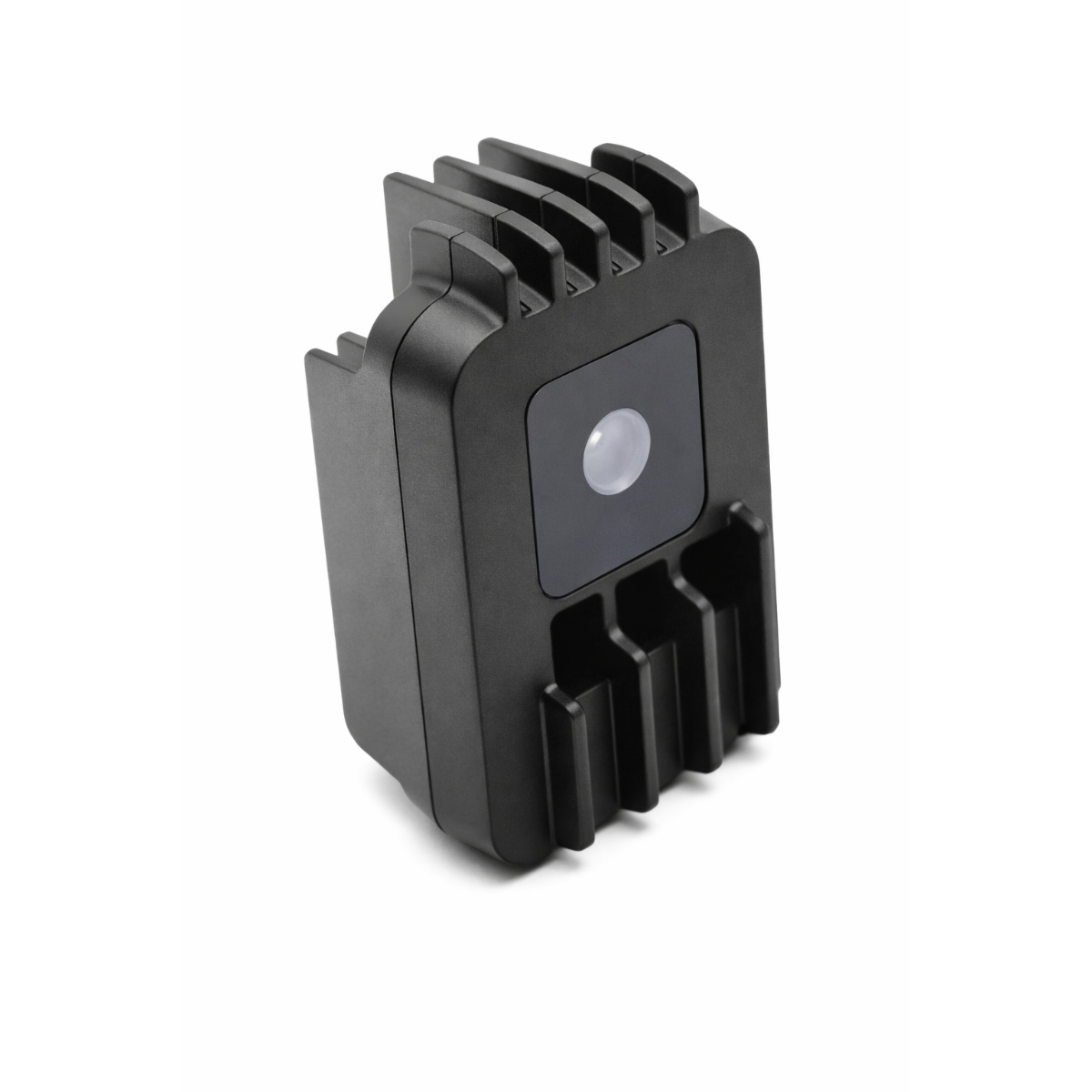

The OpenCV AI Camera is an AI edge vision system that combines a high-quality RGB camera (Sony IMX378) with an on-board Intel/Movidius Myriad X VPU to run vision and depth/AI pipelines locally and stream results to a host over USB-C. It is powered via USB and designed for robotics, industrial automation, surveillance, and other embedded vision use cases where low-latency, on-device inference is required. Mechanical mounting options (¼-20 tripod and M4 mounting holes) make it easy to integrate into prototypes and products.
Features:
- On-device AI/inference using a dedicated VPU (Movidius Myriad X).
- Integrated high-resolution color camera with autofocus.
- USB Type-C connectivity for power and host data.
- Compact, mountable enclosure with tripod and panel mounting.
- Built for low-latency edge vision in robotics and automation.
Specifications:
| Parameter | Specification |
|---|---|
| Part / Model: | OAK-1 |
| Dimensions (W×H×D): | 35 × 54.5 × 27.88mm |
| Vision SoC / VPU: | Movidius Myriad X |
| Color Image Sensor: | Sony IMX378 (active pixels 4056 × 3040 @ up to 60fps) |
| Camera Interface: | 1× 4-lane MIPI (connects IMX378) |
| USB: | USB Type-C (USB 3.x host/data + power) |
| EEPROM: | 32KB I²C EEPROM |

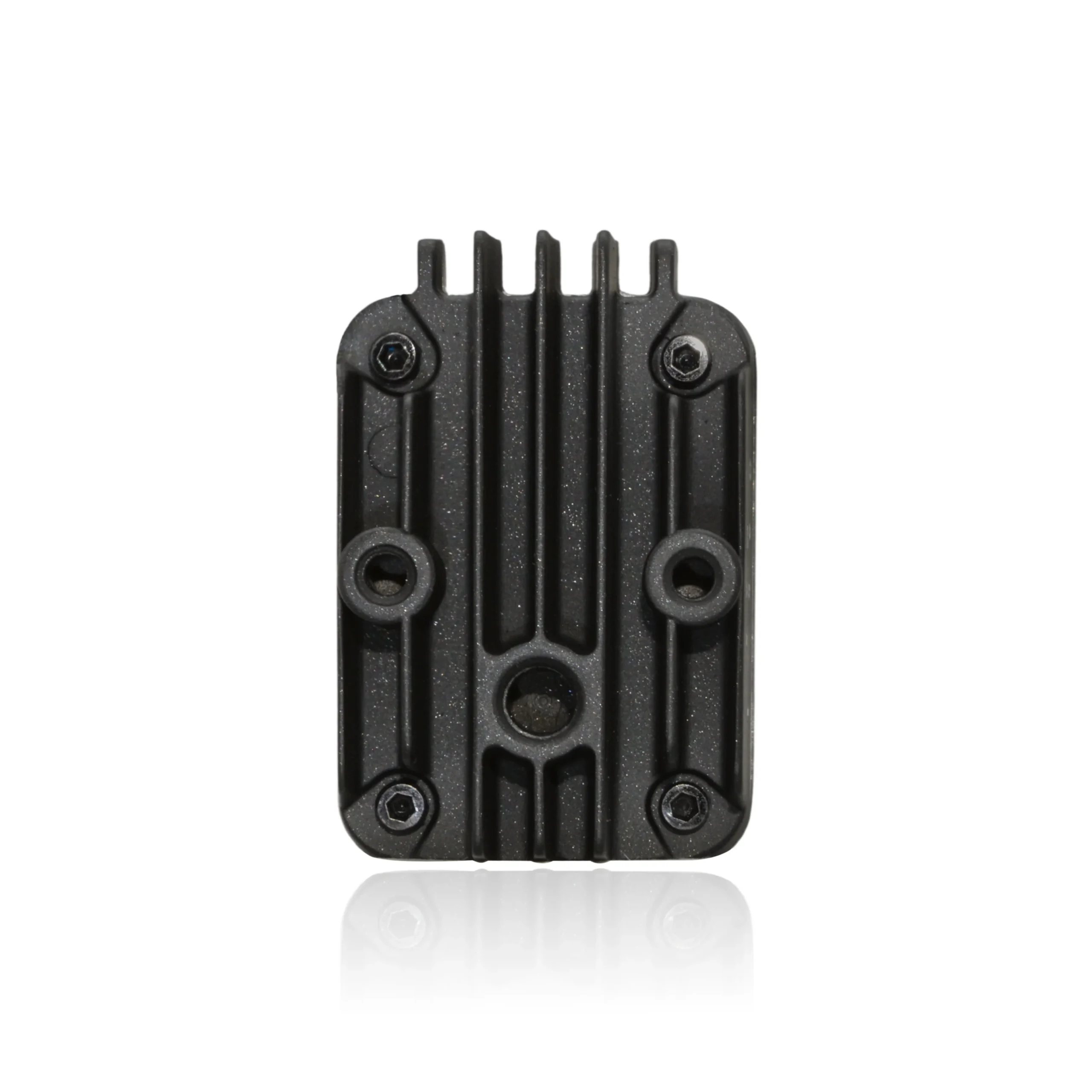

| Mounting: | ¼-20 tripod mount (bottom); M4 holes (back) spaced 25 mm |
| Recommended VBUS (supply): | 5.0V— recommended 5.0–5.25V |
| Power (typical / idle / max): | ~5W, Idle ~2.5W, Max ~7.5W |
| Absolute VBUS input range: | 3.5 – 5.5V |
| Max input current: | 2A (maximum input current requirement) |
| Ambient operating temperature: | Up to 50°C |
| Shutter: | Rolling shutter |
| IR sensitivity: | No (color only) |
Pinout:
| Interface | Notes |
|---|---|
| USB-C (VBUS / GND / SS lanes / USB2 D+/D−): | Power and host data connection (USB 3.x). |
Applications:
- Industrial automation and inspection.
- Robotics (navigation, perception, object detection).
- Surveillance / security IP camera with on-device AI.
- Remote intelligence and embedded vision prototypes.
Packages:
- 1x OpenCV AI camera module.
- 1x USB/TYPE-C Cable.
- 1x Handkerchief.
