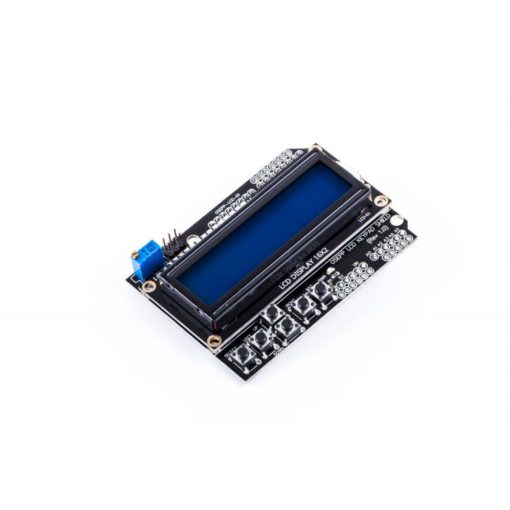

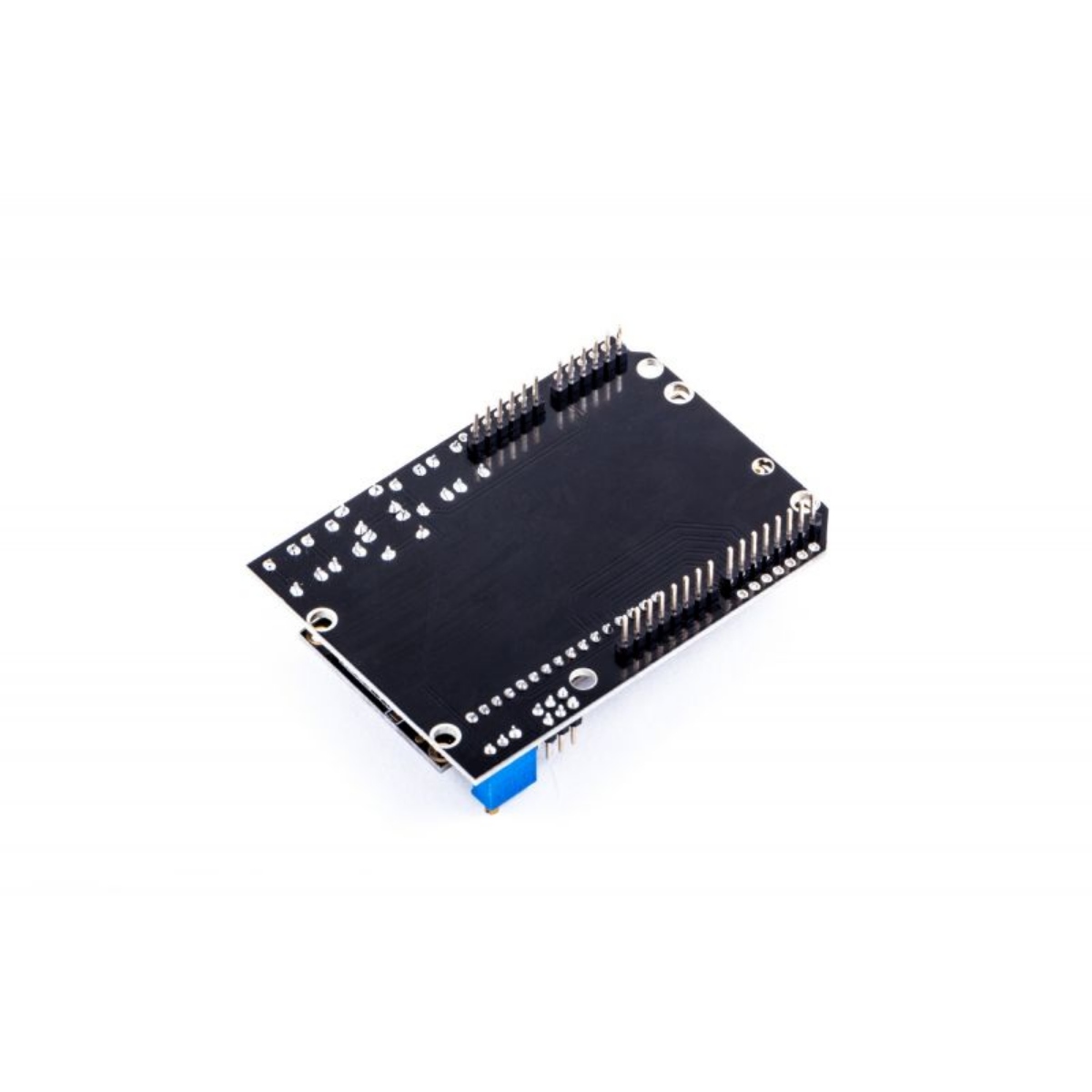

OSEPP 16X2SHD-01 16×2 LCD Display & Keypad Shield
The OSEPP 16X2SHD-01 16×2 LCD Display & Keypad Shield is a high-quality, versatile shield designed for easy integration with Arduino boards. This module features a 16×2 character LCD display, perfect for displaying text-based information in various applications. It also includes a keypad for user input, making it ideal for projects that require both display and interactive control. The shield connects directly to an Arduino, offering an efficient and easy-to-use solution for DIY electronics projects.
Features:
- Mate with Arduino and Arduino compatible boards.
- Display up to 16 characters by 2 line.
- Integrated the SPLC780D 16 COMs x 40 SEGs dot-matrix LCD controller and driver.
- 5V operating voltage.
- 5 button keypad – up, down, left, right, and select.
- Brings out the Arduino’s reset button to the top of the shield.
Specifications:
| Parameter | Value |
|---|---|
| Display Size | 16×2 characters |
| LCD Controller | SPLC780D |
| Operating Voltage | 5 V |
| Interface Pins | Digital 4-10, Analog 0 |
| Duty Factor | 1/16 |
| Character Font | 5×8 dots |
| Backlight | Blue LED |
| Keypad Buttons | 5 navigational |
| Power Supply Range (Controller) | 2.7V – 5.5V |
Applications:
- Interactive Arduino projects requiring user input and visual feedback.
- Sensor data display systems for environmental monitoring.
- Menu-driven interfaces in embedded devices.
- Educational tools for teaching microcontroller programming.
- Prototyping human-machine interfaces in robotics.
- Simple diagnostic tools for hardware troubleshooting.
Package Include:
1x OSEPP 16X2SHD-01 16×2 LCD Display & Keypad Shield.
