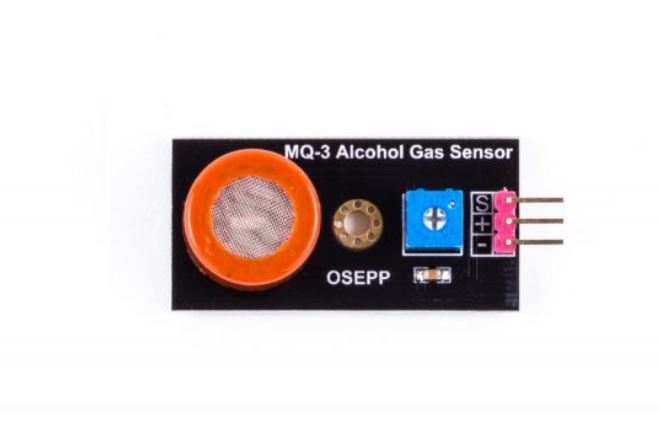

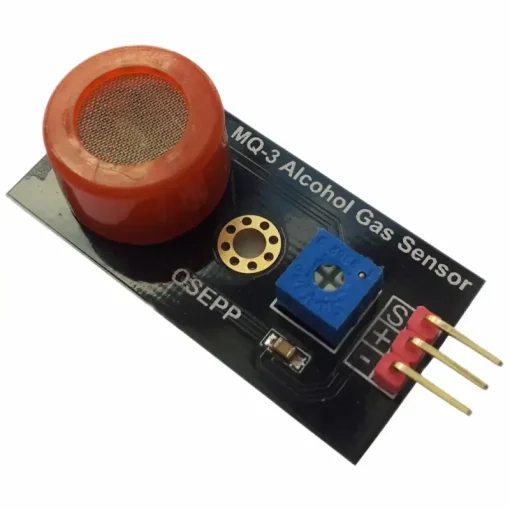

OSEPP AGAS-01 MQ-3 Alcohol Gas Sensor Module
The OSEPP AGAS-01 MQ-3 Alcohol Gas Sensor Module is a high-performance sensor designed to detect the presence of alcohol vapor in the surrounding environment. Based on the MQ-3 sensor, this module offers reliable detection, making it perfect for breathalyzer devices, alcohol safety monitoring, and other air quality monitoring applications. The module is highly sensitive to alcohol and can detect a wide range of alcohol concentrations, providing accurate and fast response times.
Features:
- High sensitivity to alcohol vapor, making it ideal for breathalyzers and alcohol detection systems.
- Simple analog output, compatible with microcontrollers like Arduino.
- Fast response time and long-term stability.
- Easy-to-integrate design for electronics projects.
- Operates at 5V for compatibility with standard development environments.
- Detects multiple gases including LPG, i-butane, methane, hydrogen, and smoke.
- Low power consumption for battery-operated applications.
Specifications:
| Parameter | Value |
| Sensor Type | MQ-3 (Semiconductor) |
| Target Gas | Alcohol (Ethanol) |
| Operating Voltage | 4.9V – 5.0V DC |
| Heater Consumption | 0.5 – 800mW |
| Detection Range | 0.05 mg/L ~ 10 mg/L |
| Operating Temperature | -25°C to 70°C |
| Output Type | Analog Voltage |
| Dimensions | 42mm (L) x 21mm (W) |
Pin Configuration:
- S (Signal): Analog Output. Connects to an Analog Input pin (e.g., A0) on the microcontroller.
- V (+): +5V Power Supply.
- G (-): Ground connection.
Applications:
- Breathalyzer systems for alcohol detection.
- Alcohol safety monitoring in vehicles, machinery, or workplaces.
- Personal safety devices for alcohol monitoring.
- Air quality and environmental monitoring systems.
Package Include:
1x OSEPP AGAS-01 MQ-3 Alcohol Gas Sensor Module.
Documents:
- Schematic
- Osepp MQ-3 Alcohol Gas Sensor Module Source Code
- MQ-3 Sensor Datasheet
