OSEPP COLOR-01 Color Sensor Module
The OSEPP COLOR‑01 Color Sensor Module is a complete and easily integratable color detection solution designed for makers, educators, and engineers working with microcontrollers such as Arduino and other embedded platforms. The module centres around the TAOS TCS3200 programmable color light‑to‑frequency converter, which integrates four types of photodiodes—each filtered for red, green, blue, or clear light—into a single compact sensor chip that converts light intensity into a frequency signal proportional to the detected colour.
Features:
- Power: (2.7V to 5.5V).
- Interface : Digital TTL.
- High-Resolution Conversion of Light Intensity to Frequency.
- Programmable Color and Full-Scale Output Frequency.
- Power Down Feature.
- Communicates Directly to Microcontroller.
Specifications:
| Parameter | Value |
|---|---|
| Sensor Chip | TCS3200 |
| Supply Voltage | 2.7-5.5V |
| Supply Current (Active) | 1.4-2mA |
| Supply Current (Power-Down) | 0.1μA |
| Output Type | Frequency(50%dutycycle) |
| Full-Scale Frequency (100%) | 500-600kHz |
| Full-Scale Frequency (20%) | 100-120kHz |
| Full-Scale Frequency (2%) | 10-12kHz |
| Dark Frequency | 2-10Hz |
| Nonlinearity Error (0-5kHz) | ±0.1%F.S. |
| Temperature Coefficient | ±200ppm/°C |
| Supply Voltage Sensitivity | ±0.5%/V |
| Operating Temperature | -40to+70°C |
| Storage Temperature | -40to+85°C |
| Response Time (Power-Down Recovery) | 100μs |
| High-Level Output Voltage | 4-4.5V |
| Low-Level Output Voltage | 0.25-0.4V |

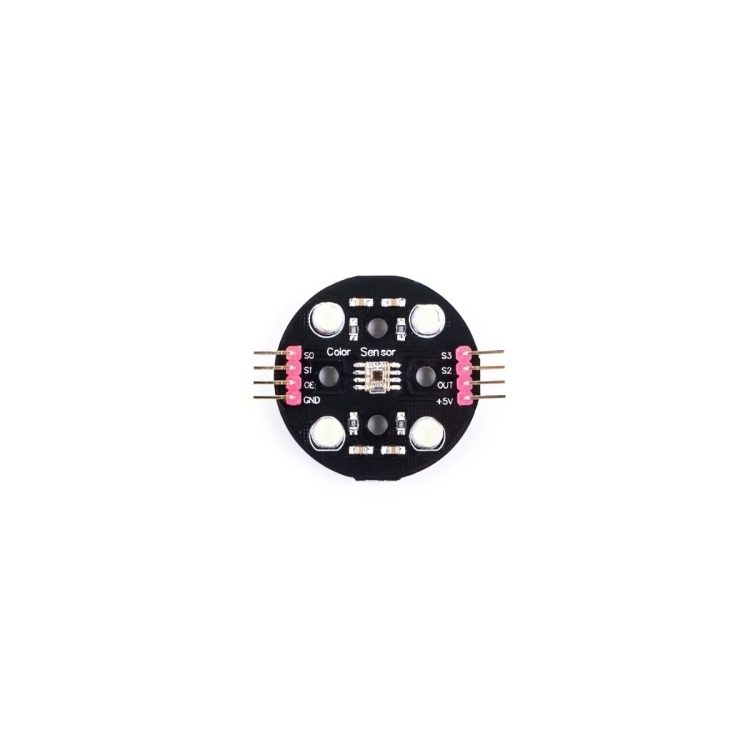

Pin Configuration:
Applications:
- Automated color sorting in manufacturing lines.
- Color matching for quality control and printing.
- Ambient light sensing and automatic brightness adjustment.
- Test strip analysis in medical diagnostics.
- Interactive displays and toys with color recognition.
- Robotics for object identification by hue.
- Educational demos on spectral analysis.

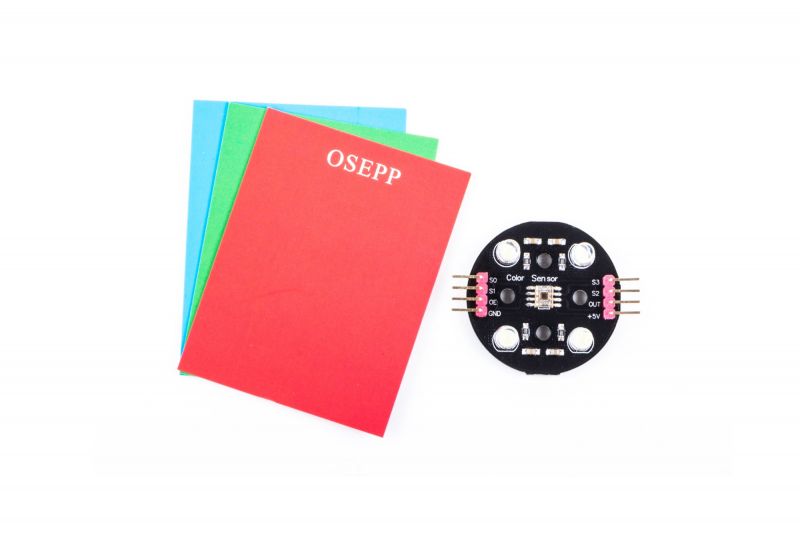

Package Include:
- 1x OSEPP COLOR-01 Color Sensor Module.
- 1x Set of colored paper cards (red, green, blue)
