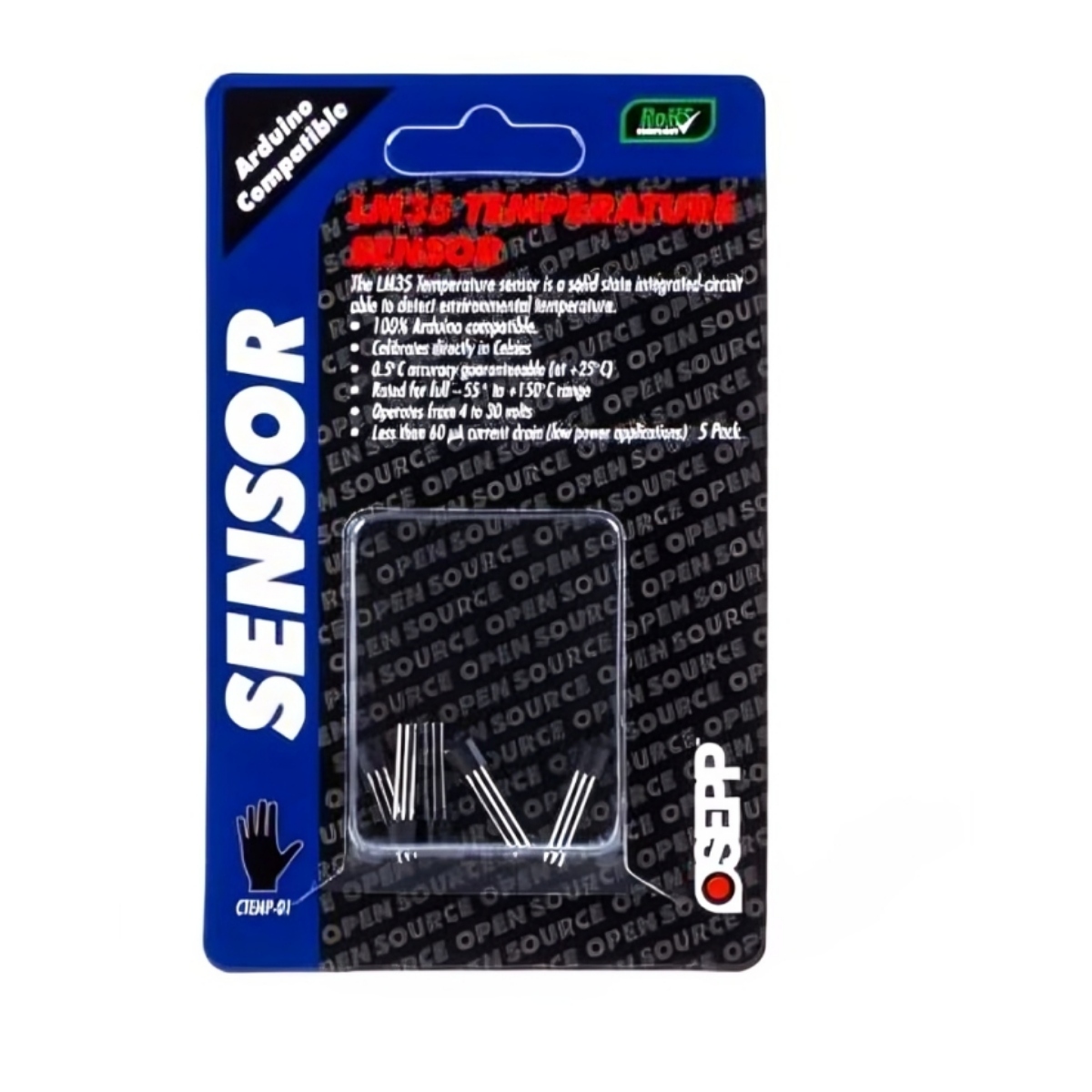

OSEPP CTEMP-01 LM35 Temperature Sensor 5 PCS
The OSEPP CTEMP-01 LM35 Temperature Sensor is a reliable and accurate temperature sensing solution, available in a pack of five sensors for use in a wide variety of electronics projects. The LM35 is a precision analog temperature sensor that provides a linear output voltage proportional to the temperature in Celsius. With its wide temperature range and high accuracy, it is an excellent choice for temperature monitoring, control systems, and environmental sensing applications.
Features:
- Calibrated directly in Celsius with linear +10mV/°C scale factor.
- Ensured accuracy of 0.5°C at 25°C and typical ±0.75°C over full range.
- Operates from 4VDC to 30VDC with low 60μA current drain.
- Low self-heating of less than 0.1°C in still air.
- Suitable for remote applications with low-impedance output.
- No external calibration required due to wafer-level trimming.
Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage | 4-30 VDC |
| Temperature Range | -55°C to +150°C |
| Accuracy (at 25°C) | ±0.5°C |
| Scale Factor | +10 mV/°C |
| Output Voltage (at 25°C) | 250 mV |
| Quiescent Current | < 60 µA |
| Nonlinearity | ±0.25°C |
| Output Impedance | 0.1 Ω |
| Load Regulation | ±0.4 mV/mA |
Pin Configuration:
- VCC: Positive power supply input (4-30VDC).
- GND: Ground connection.
- S: Analog output signal (proportional to temperature).
Applications:
- Home automation systems for temperature monitoring.
- Weather stations and environmental data logging.
- Battery management and thermal protection circuits.
- Educational projects teaching analog sensors.
- HVAC controls and appliance temperature regulation.
- Remote sensing in industrial or agricultural setups.
Package Include:
5x OSEPP CTEMP-01 LM35 Temperature Sensor.
