OSEPP DB9WACC Double Beam 09 Kit

OSEPP DB9WACC Double Beam 09 Kit

The OSEPP DB9WACC Double Beam 09 Kit is a STEM-focused project kit that provides all the necessary components to construct a dual infrared beam sensor system. This system works by transmitting an invisible infrared beam from an emitter to a receiver; when the beam is interrupted by an object or person passing through it, the circuit triggers an output signal. The kit is designed around the it’s DB9 sensor module platform, which uses a 9-pin connector for easy plug-and-play functionality with compatible it’s boards.

This kit serves as an excellent hands-on introduction to infrared sensing, basic logic, and simple circuit design. It is ideal for learning about security systems, object detection, and event counting in a tangible way. By assembling the kit and experimenting with beam alignment and sensitivity, users gain practical experience in both the hardware and fundamental concepts of digital sensing and system response.

Features:

• High‑strength anodized aluminum beams.
• Includes connectors and plates for versatile builds.
• Compatible with LEGO Technic, Makeblock and OSEPP mechanical kits.
• Comes with screws and an Allen key for convenient assembly.
• Supports structural frameworks and robotic chassis.

Specifications:

Different Configurations:

Applications:

• Building robot frames and chassis.
• Structural supports for DIY and educational projects.
• Mechatronics prototype assemblies.
• Maker and classroom robotics construction.
• Custom mechanical builds and fixtures.

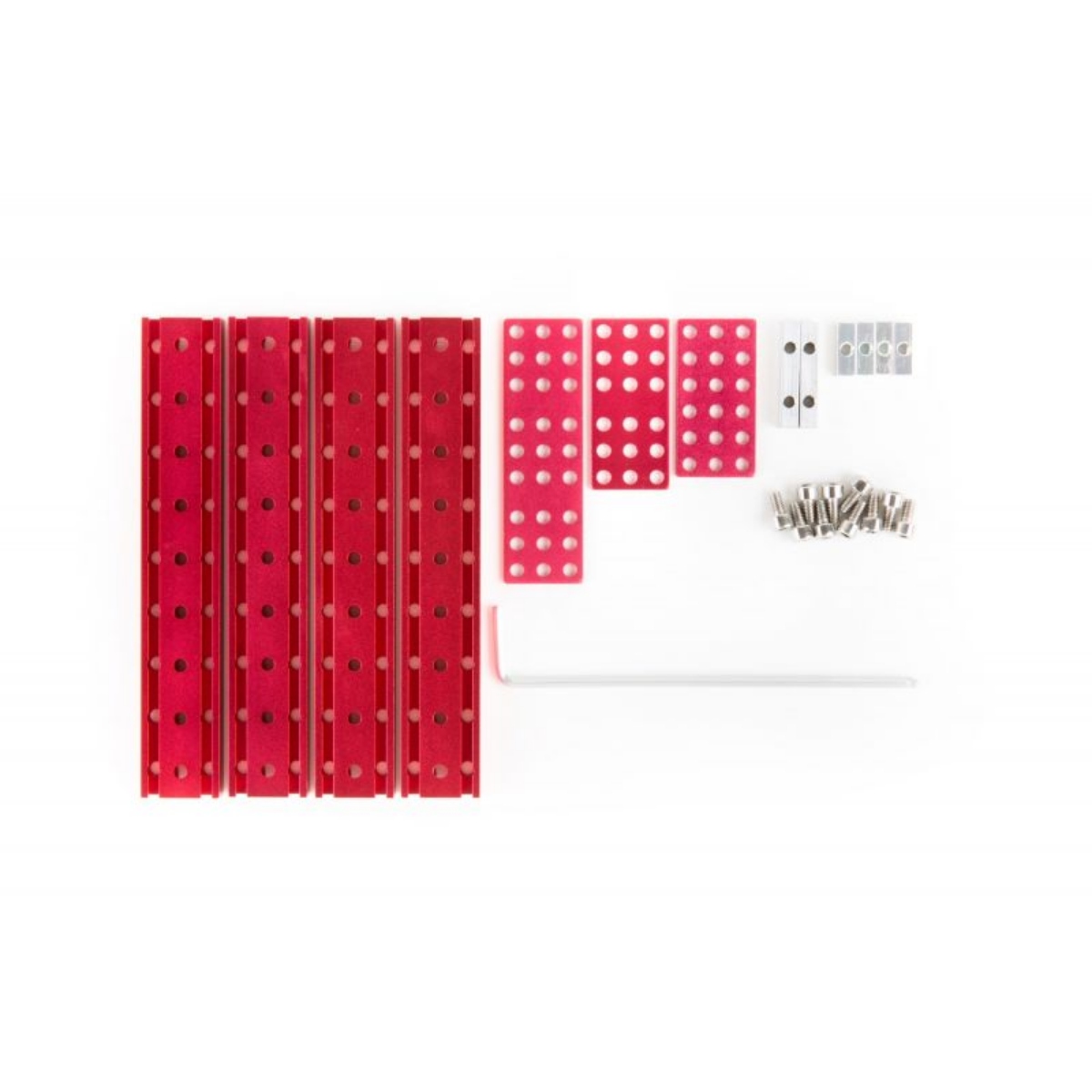

Packages:

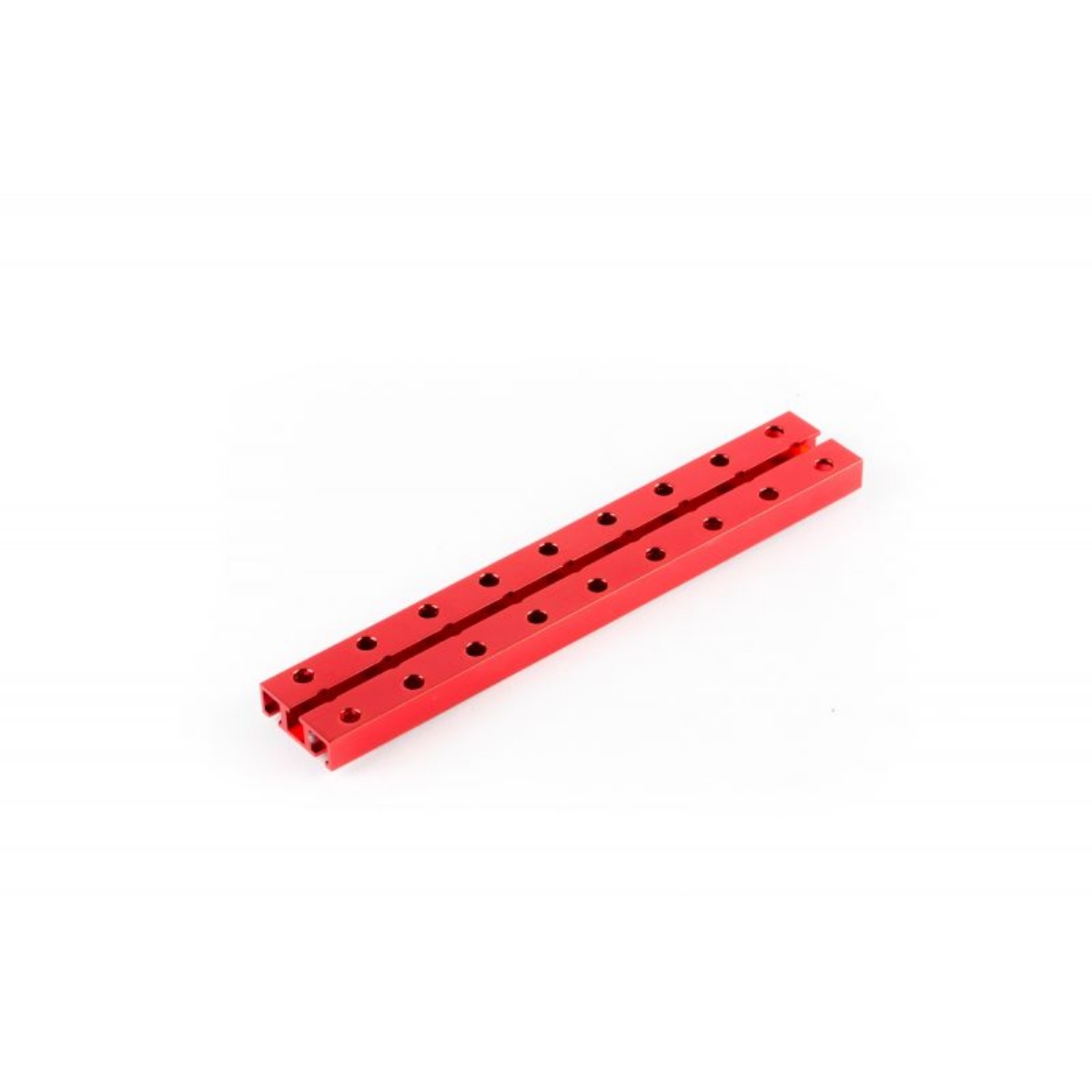

• 4 × Double Beam‑09 aluminum beams.
• 4 × Beam connectors.
• 2 × Long beam connectors.
• 1 × Plate A (3×6).
• 1 × Plate B (3×6).
• 1 × Plate B (3×9).
• 10 × HEX M4×8 screws.
