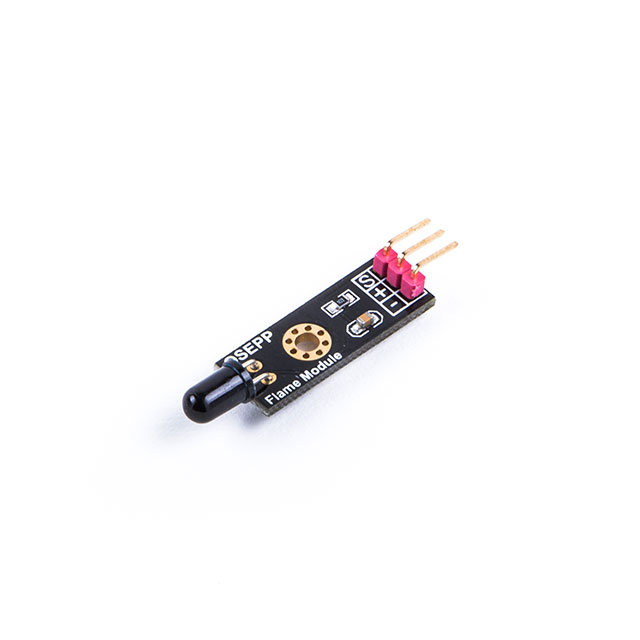

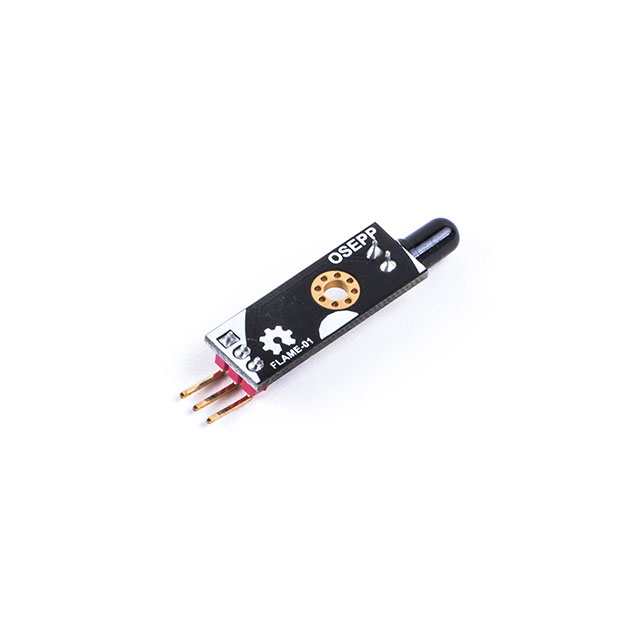

OSEPP FLAME-01 Flame Sensor Module

OSEPP FLAME-01 Flame Sensor Module

The OSEPP FLAME-01 Flame Sensor Module is a compact and sensitive electronic component designed to detect the presence of flames or fire sources through infrared light detection, making it a valuable tool in safety, automation, and educational electronics applications. This module operates by sensing variations in light wavelengths specifically in the infrared spectrum between 760nm and 1100nm, which corresponds to the typical emission range of flames. When a flame is detected within its range, the sensor outputs a signal that can trigger alarms, shutoffs, or other responsive actions in integrated systems. Its design emphasizes simplicity and reliability, with a focus on integration into microcontroller-based platforms, ensuring it meets the needs of both hobbyists and professional developers working on smart devices.

Features:

• Detects flames via infrared light in the 760nm to 1100nm wavelength range.
• 100% compatible with Arduino and similar microcontrollers.
• Low power consumption with 20mA working current.
• Effective detection range up to 1 meter.
• Wide operating temperature from -25°C to 85°C.

Specifications:

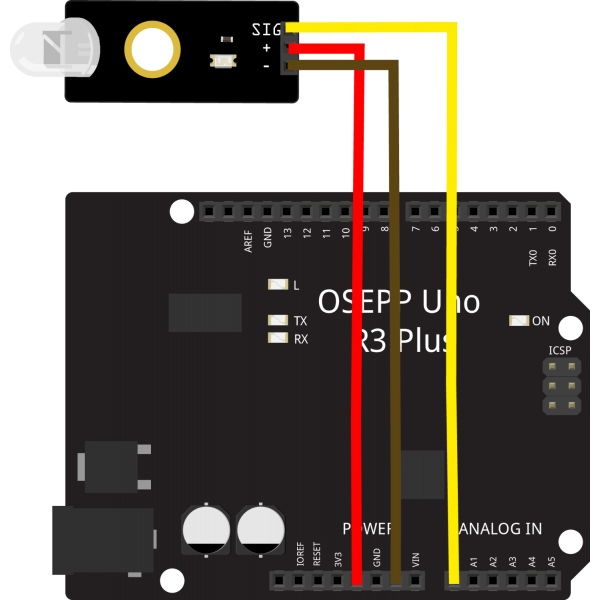

Pin Configuration:

• +: Power supply (4.75V-5V)
• -: Ground connection.
• signal: Digital signal output (goes LOW when flame is detected).

Applications:

• Fire alarm systems.
• Home automation safety projects.
• Robotics flame detection.
• Educational electronics experiments.
• Industrial fire monitoring.

Package Include:

1x OSEPP FLAME-01 Flame Sensor Module.

Documents:

Schematic

Osepp Flame Sensor Module Source code & Graphic
