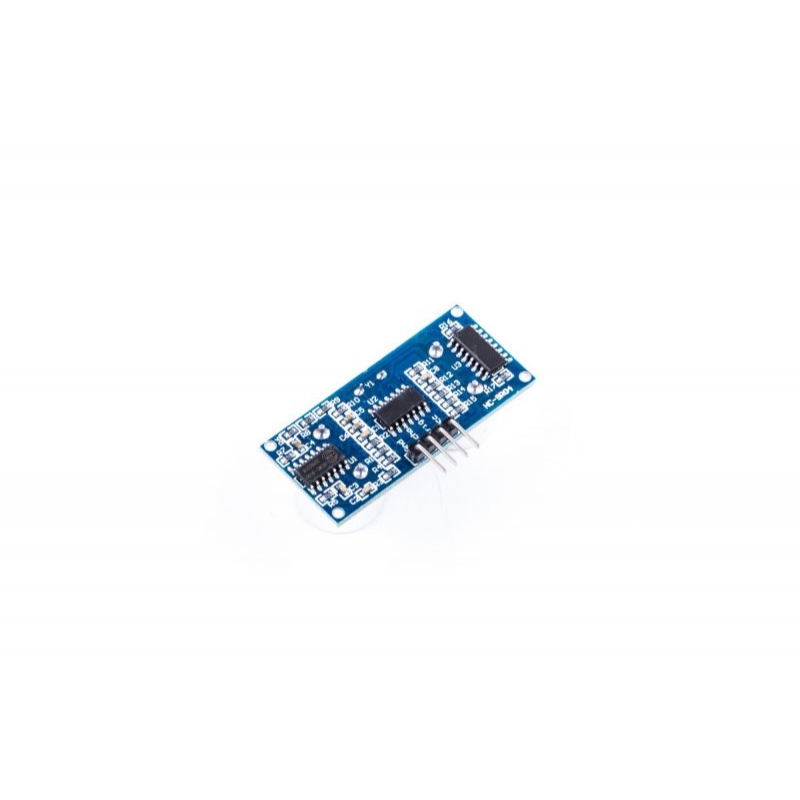

OSEPP HC-SR04 Ultrasonic Sensor Module
The OSEPP HC-SR04 Ultrasonic Sensor Module is an essential component for many electronic and robotics projects. This module provides precise distance measurement using ultrasonic waves. The sensor operates by emitting a high-frequency sound wave and measuring the time it takes for the wave to bounce back from an object. The HC-SR04 is widely used in applications where non-contact distance measurement is required, such as in autonomous robots, automated systems, and object detection projects. Its small size and ease of use make it an ideal choice for both hobbyists and professionals.
Features:
- Provides non-contact distance measurements with high accuracy.
- Ideal for use in robotics, object detection, and automation projects.
- Uses ultrasonic waves for reliable range finding.
- Simple interface with digital inputs and outputs for easy integration.
- Low power consumption and compact design.
- 100% Arduino Compatible.
Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage | 5VDC |
| Range | 2cm to 400cm |
| Resolution | 0.3cm |
| Current Consumption | 15mA |
| Dimensions | 45mm (L) x 20mm (W) x 15mm (H) |

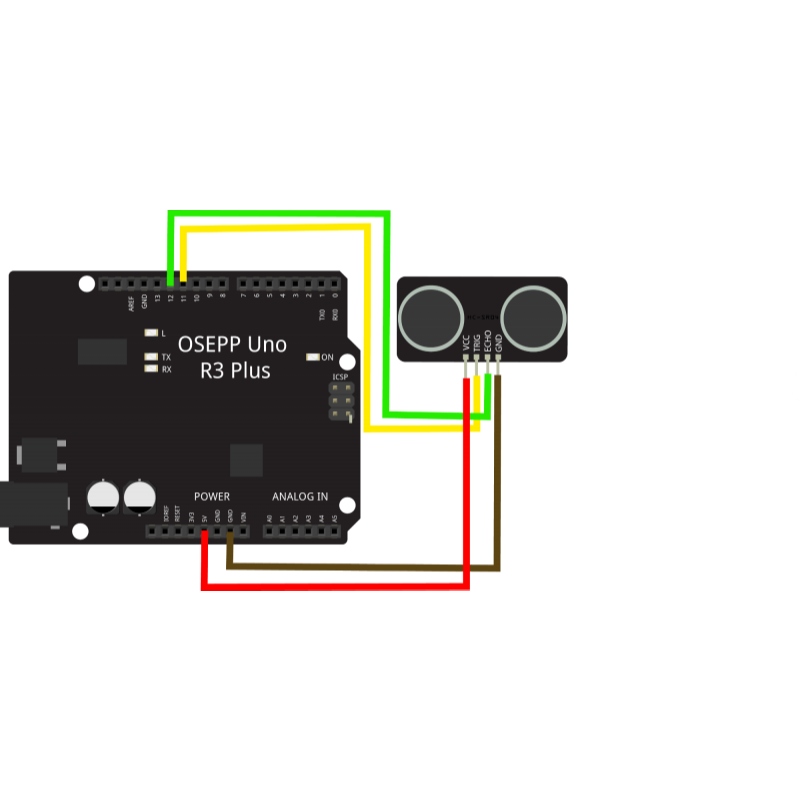

Pin Configuration:
| Pin | Function | Type |
|---|---|---|
| VCC | Power Supply | 5VDC |
| TRIG | Trigger Input | Digital Input |
| ECHO | Echo Output | Digital Output |
| GND | Ground | Ground |
Applications:
- Distance measurement in robotic systems.
- Obstacle detection for autonomous vehicles.
- Object ranging and positioning in drones.
- Automation in industrial systems.
- Proximity sensing in various electronic devices.

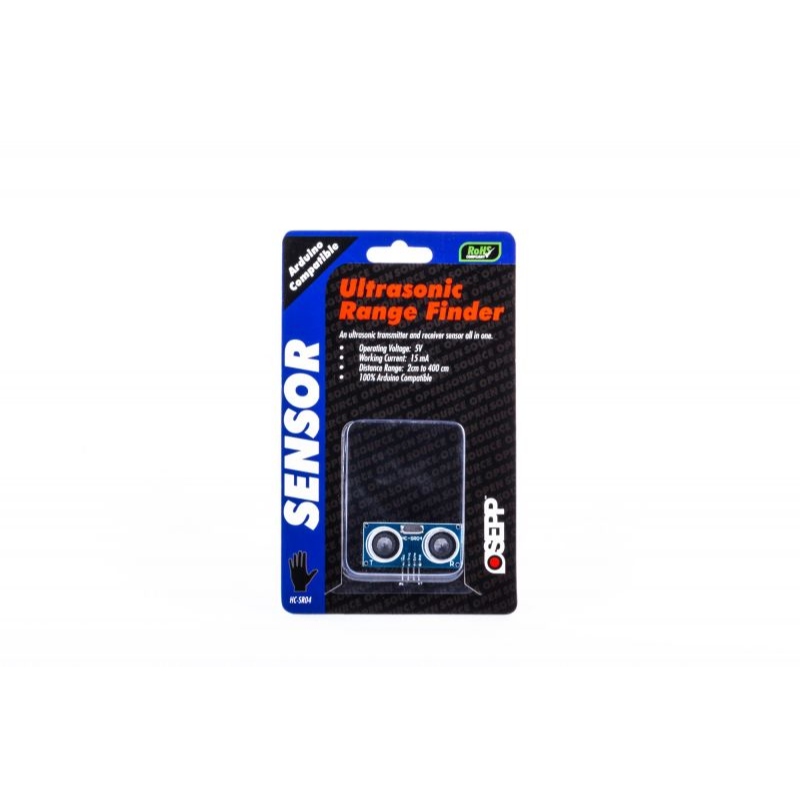

Package Include:
1x OSEPP HC-SR04 Ultrasonic Sensor Module.
