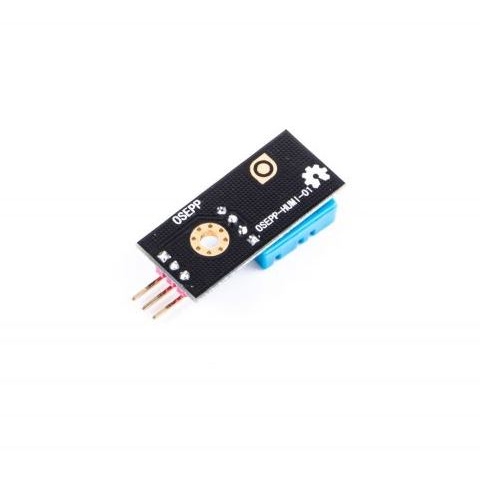

OSEPP HUMI-01 DHT11 Humidity & Temperature Sensor
The OSEPP HUMI‑01 DHT11 Humidity & Temperature Sensor is a calibrated environmental sensor module that reliably measures relative humidity and ambient temperature, delivering robust performance for hobbyist and professional electronics applications. Designed around the well‑known DHT11 sensing element, this module integrates humidity and temperature sensing in a single compact package that interfaces easily with microcontrollers and development boards. The module outputs digital data via a single signal line, simplifying integration without the need for external analog‑to‑digital conversion.
Features:
- 100% Arduino Compatible
- 3 pin outs: GRD (-) VCC (+) S – Signal
- 20 meter signal transmission Features:
- Power supply voltage: 5V
- Temperature Range: 0-50°C
- Temperature Accuracy: +/- 2°C
- Humidity Range: 20-90%RH
- Humidity Accuracy: +/_ 5%RH
Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage | 5VDC |
| Standby Current | 0.06mA |
| Measuring Current | 1mA |
| Humidity Range | 5-95%RH |
| Humidity Accuracy | ±5%RH |
| Temperature Range | -20-60°C |
| Temperature Accuracy | ±2°C |
| Response Time (Humidity) | <6s |
| Response Time (Temperature) | <10s |
| Sampling Interval | >2s |
| DHT11 Dimensions | 16×12.5x6mm |
Pin Configuration:
| Pin | Function | Type |
|---|---|---|
| VCC(+) | Power Supply | 5VDC |
| S (DATA) | Digital Signal | Single-wire bidirectional |
| GND(-) | Ground | Ground |
Applications:
- Environmental monitoring and data logging systems.
- Home automation and HVAC control.
- Weather station projects.
- Classroom and educational electronics.
- IoT sensing nodes and embedded devices.
Package Include:

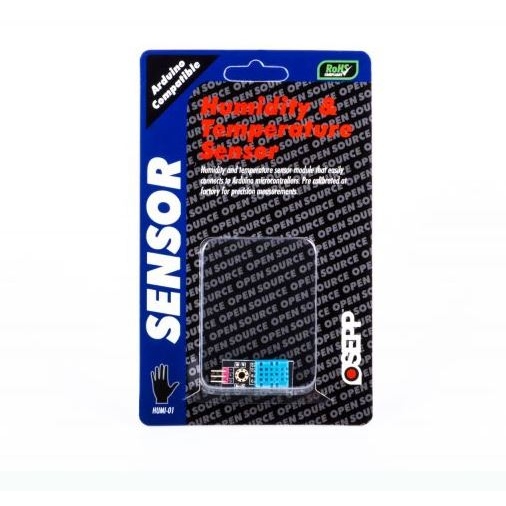

1x OSEPP HUMI-01 DHT11 Humidity & Temperature Sensor Module.
