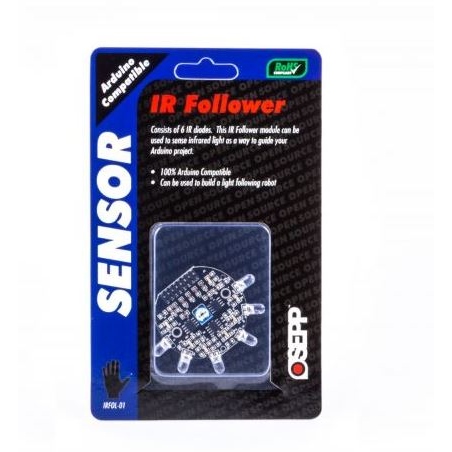

OSEPP IRFOL-01 IR Follower Sensor Module for ARDUINO
The OSEPP IRFOL-01 IR Follower Sensor Module is a versatile sensor designed to detect infrared signals, commonly used in line-following robots and other electronics projects. It provides a reliable method for Arduino-based systems to follow a predefined path or react to IR signals. The module features both an IR emitter (LED) and a photodiode, making it suitable for applications requiring precise IR detection.
Features:
- Equipped with six UPT333C IR photodiodes for multi-point infrared detection.
- Provides both analog and digital outputs for each sensor, offering versatility in signal processing.
- Analog outputs vary from GND to VCC based on detected light intensity.
- Digital outputs switch to HIGH (no light) or LOW (light detected) for simple logic integration.
- Central trimpot allows adjustable sensitivity for digital outputs without affecting analog signals.
- 100% compatible with Arduino boards for straightforward connectivity.
- Compact design suitable for robotic and prototyping applications.
Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage | 5VDC |
| Number of Sensors | 6 |
| Sensor Type | IR Photodiode(UPT333C) |
| Spectral Bandwidth | 840-1100nm |
| Peak Sensitivity Wavelength | 940nm |
| Output Types | Analog and Digital |
| Digital Output Logic | HIGH(nolight),LOW(lightdetected) |
| Power Consumption | 400mW |
| Operating Temperature | -40to+85°C |
| Dimensions | 60.5x42mm |
Pin Configuration:
Applications:
- Line-following robots.
- Infrared sensing applications.
- Automation systems for object detection.
- Obstacle detection for robots.
- Educational projects in robotics and electronics.
Package Include:
1x OSEPP IRFOL-01 IR Follower Sensor Module for ARDUINO.
