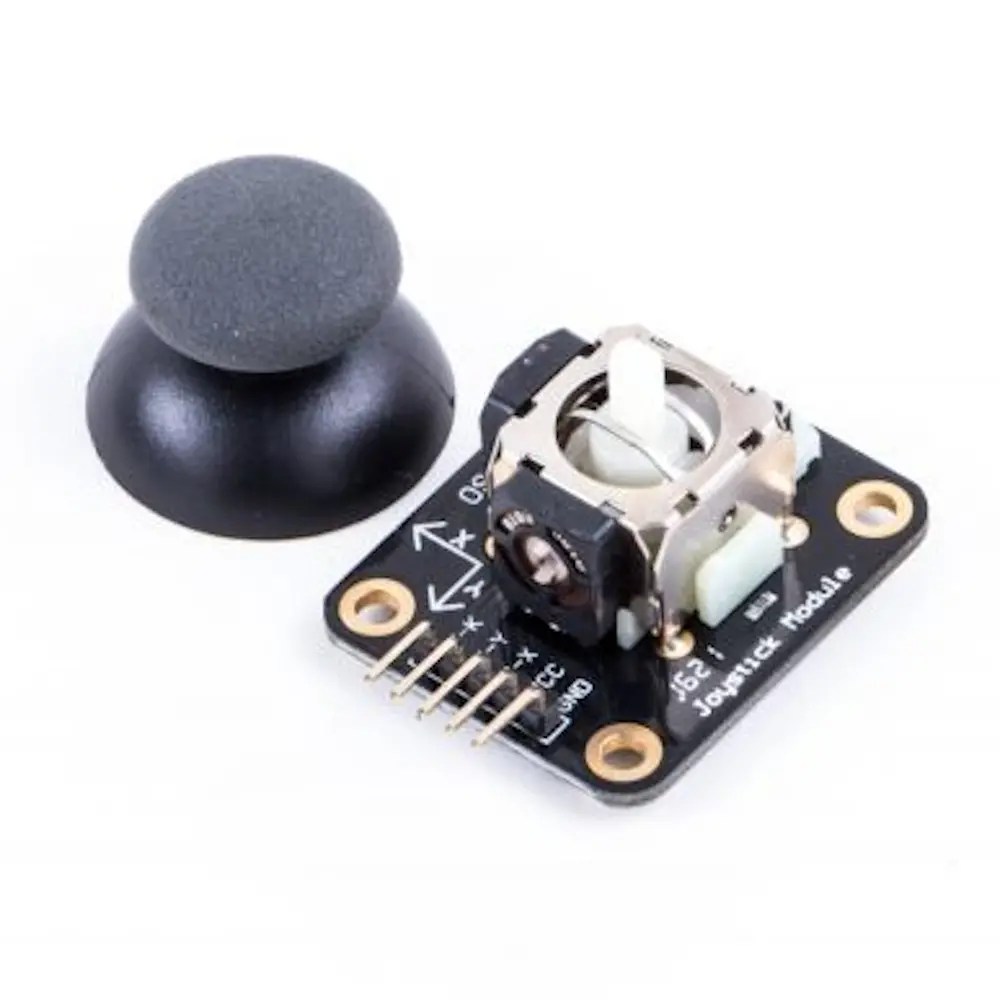

OSEPP JOY-01 Joystick Module
The OSEPP JOY‑01 Joystick Module is a versatile input device designed for use in a wide range of electronics and embedded projects requiring directional control and user interface input. This module integrates two independent analog potentiometers — one for the X‑axis and one for the Y‑axis — enabling precise two‑dimensional position sensing. Each axis has a 10K potentiometer with a common ground, providing smooth and repeatable analog voltage outputs that correspond to joystick position.
Features:
- 100% Arduino Compatible
- Operating voltage output : 3.3V – 5V MAX
- Analog input
- two 10K potentiometers with common ground per axis
- Spring auto return to center on knob
- Operating temp range: +32°F to +158°F (0°C to +70°C)
Specifications:
| Parameter | Value |
|---|---|
| Model Number | JOY‑01 |
| Joystick Type | Dual‑axis analog |
| Operating Voltage | 3.3 V – 5 VDC |
| Output Type | Analog potentiometer signals |
| Potentiometer Value | 10K per axis |
| Return Mechanism | Spring auto return to center |
| Dimension |

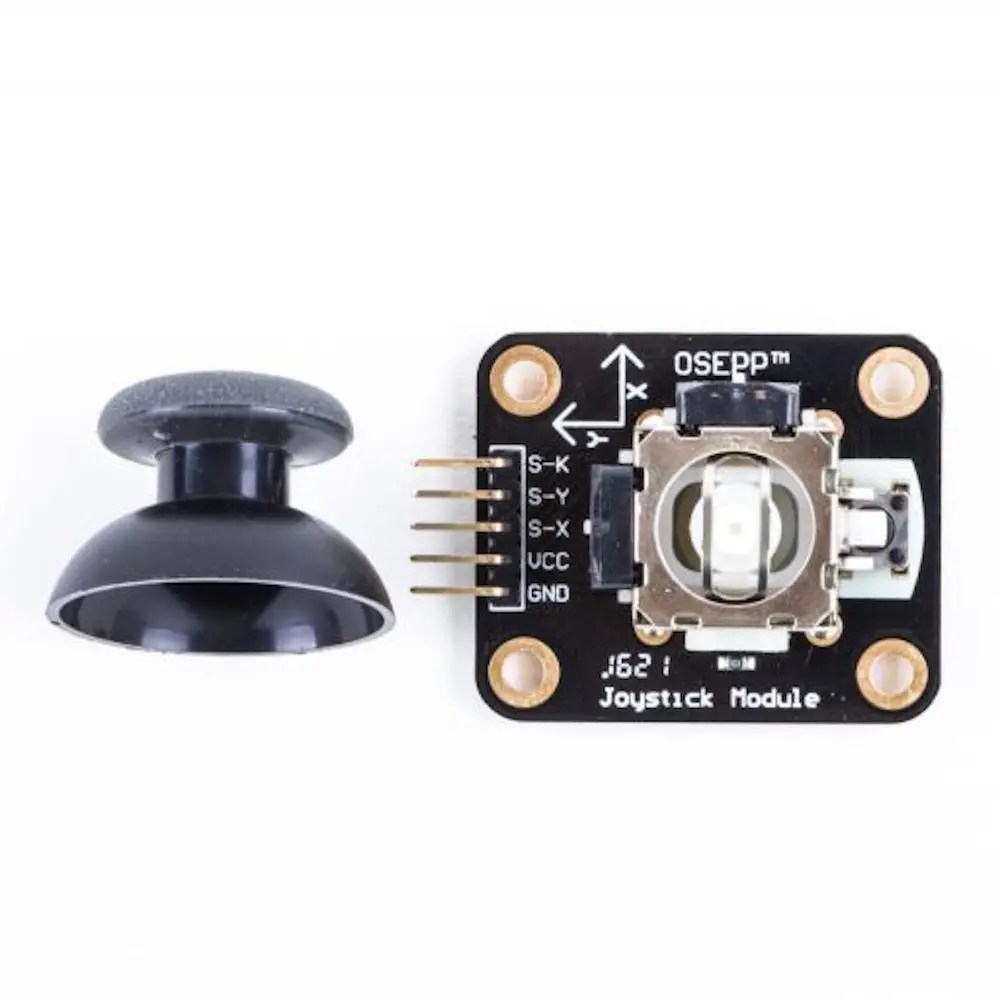

Pin Configuration:
- S-K: Digital switch output (active low when pressed).
- S-Y: Analog output for Y-axis.
- S-X: Analog output for X-axis.
- VCC: Power supply input (3.3-5VDC).
- GND: Ground connection.
Applications:
- Game controller and RC transmitter interfaces.
- Robot arm and rover manual control.
- CNC machine pendants and joysticks.
- Menu navigation in embedded displays.
- Drone flight simulators and gimbals.
- Educational Arduino input projects.
Package Include:
1x OSEPP JOY-01 Joystick Module
