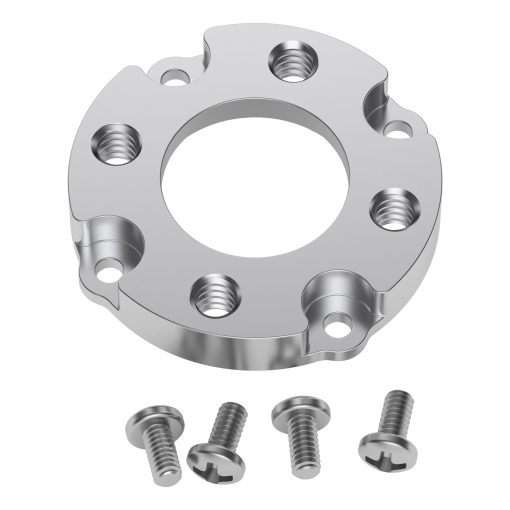

OSEPP LS-00094 NEMA 8 Stepper Motor Mount

OSEPP LS-00094 NEMA 8 Stepper Motor Mount

The OSEPP LS-00094 NEMA 8 Stepper Motor Mount is a precision-engineered accessory tailored for enthusiasts and professionals working with compact stepper motors in various applications. Crafted from premium aluminum, this mount offers an exceptional combination of strength and low weight, ensuring it can withstand the rigors of dynamic environments without adding unnecessary bulk to assemblies. Its design adheres to the NEMA 8 standard, which specifies a faceplate mounting hole pattern spaced at 16mm centers, allowing seamless attachment to compatible stepper motors using the provided hardware.

Features:

• Constructed from premium aluminum for extra strength and lightweight design.
• Features a clear anodized finish for enhanced durability and corrosion resistance.
• Compatible with NEMA 8 stepper motors and ServoCity #555168.
• Incorporates a 0.770″ hub pattern for seamless integration with Actobotics systems.
• Includes four M2 x 4mm pan head screws for secure motor attachment.

Specifications:

Applications:

• Securing stepper motors in hobby robotics and automation projects.
• Integrating motors into model building for precise movement control.
• Supporting science experiments requiring stable motor mounting.
• Facilitating DIY electronics assemblies with modular components.
• Enhancing custom prototypes in educational STEM activities.

Package Include:

• 1x OSEPP LS-00094 NEMA 8 Stepper Motor Mount.
• 4x M2 x 4mm mounting screws.

Documents:

Assembly
