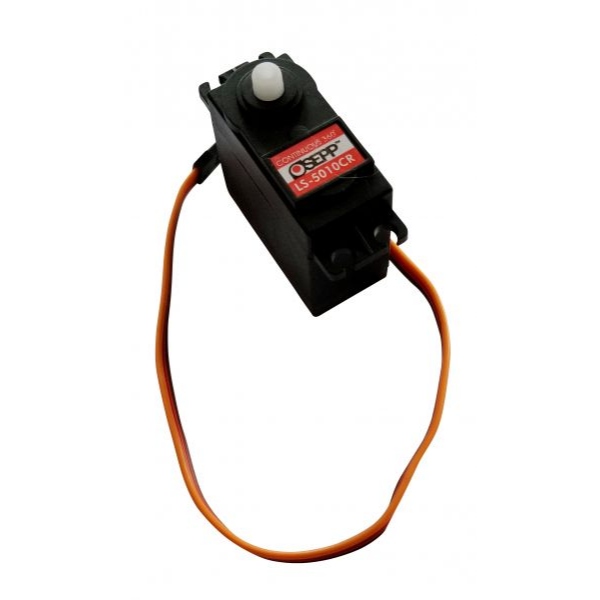

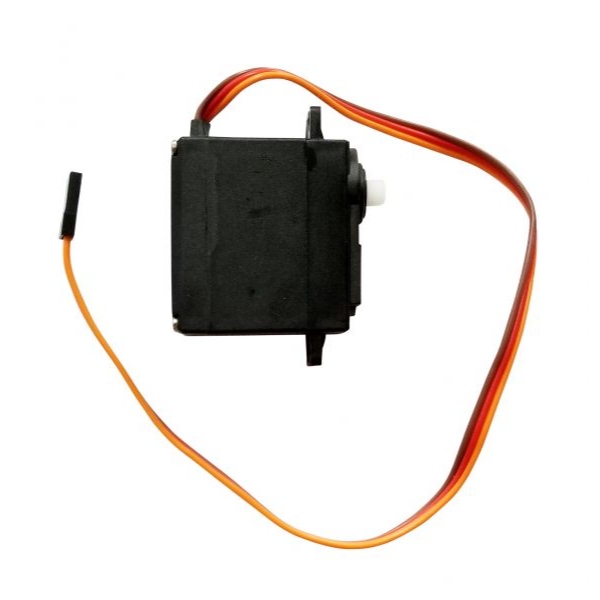

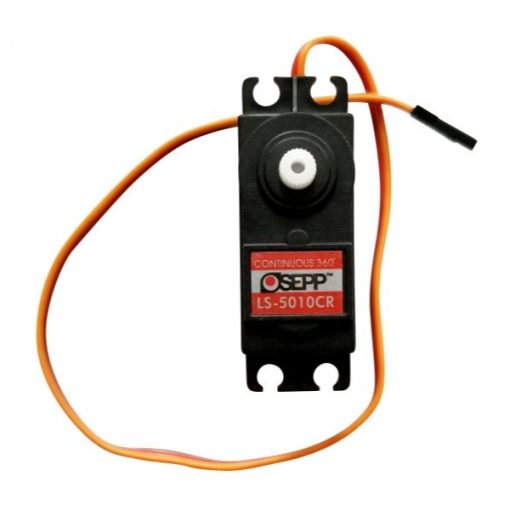

OSEPP LS-5010CR ECON Servo Motor -360°
The OSEPP LS-5010CR ECON Servo Motor – 360° is an ideal solution for various hobby, model, and science projects where continuous rotation is required. This versatile motor operates within a voltage range of 4.8V to 7.2V and delivers reliable performance in applications that need 360° rotation. The motor’s compact design, measuring 40.8mm x 20.1mm x 38mm, ensures it fits seamlessly into a variety of robotic and mechanical projects.
Features:
- Voltage Range: 4.8 – 7.2 Volts
- Stall Torque (6.0V): 4.1 kg.cm
- Stall Torque (4.8V): 3.2kg.cm
- JR Wire Configuration
- No-load Speed (6.0V / 4.8V): 0.19sec/60° / 0.23sec/60°
- Dimensions: 40.8*20.1*38mm
- Weight: 44g
- Rotation: Continuous
- Output Shaft Style: 25 tooth spline.
Specifications:
| Parameter | Value |
|---|---|
| Dimensions | 40.8×20.1x38mm |
| Output Shaft Style | 25T |
| Angle Rotation | 360degree |
| Voltage Range | 4.8-7.2Volts |
| No-Load Speed (6.0V) | 0.19sec/60° |
| No-Load Speed (4.8V) | 0.23sec/60° |
| Stall Torque (6.0V) | 4.1kg.cm |
| Stall Torque (4.8V) | 3.2kg.cm |
| Max PWM Signal Range (Standard) | 500-2500usec |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -10to+50degreeC |
| Current Drain – idle (6.0V) | 20mA |
| Current Drain – no-load (6.0V) | 200mA |
| Direction w/Increasing PWM Signal | anticlockwise |
| Deadband Width | 4usec |
| Motor Type | Cored |
| Gear Type | Plastic |
| Gear Material | POM |
| Wire Length | 300mm |
| Wire Gauge | JR |
Applications:
- Educational robotics demonstrations.
- Lightweight pan-tilt camera or sensor platforms.
- Small robotic arms and grippers.
- Hobbyist servo-based motion projects.
- PWM-controlled positioning tasks in compact systems.

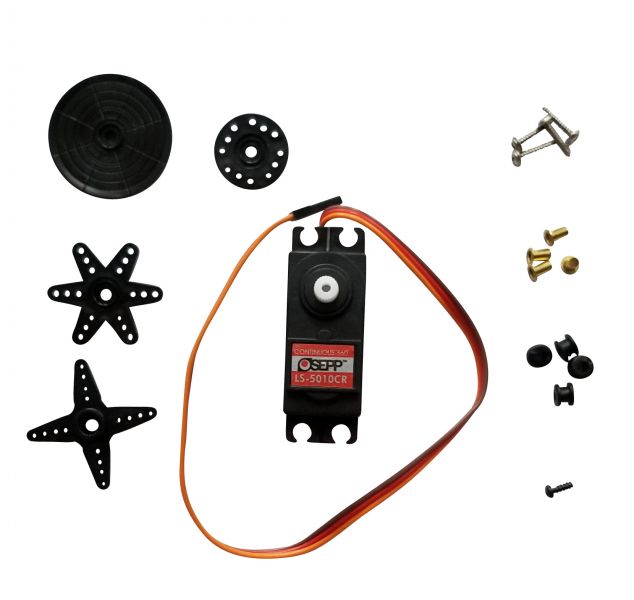

Package Include:
- 1x OSEPP LS-5010CR 360° Continuous Rotation Servo Motor.
- 1x star horn.
- 1x x horn.
- 2x horn wheel (the “2 circles”).
- 1x Set of Mounting Screws.
