OSEPP LS-8101F Metal Gear Digital Servo – 360
The OSEPP LS-8101F Metal Gear Digital Servo – 360 is designed to provide continuous 360-degree rotation, making it perfect for applications where precise and reliable motion control is needed. Equipped with metal gears, this servo offers superior strength and durability, ensuring it can withstand high-torque loads and repeated use in robotics, automation systems, and remote-controlled vehicles.
Features:
- Continuous 360-degree rotation for versatile motion control.
- High-torque capability for demanding applications.
- Metal gear design for enhanced strength and durability.
- Digital control for precise and responsive performance.
- Ideal for robotics, model applications, and automation systems.
- Easy integration with Arduino and similar microcontroller platforms.
Specifications:
| Parameter |
Value |
| Operating Voltage |
5-7.2VDC |
| Stall Torque |
12kg·cm@6V13kg·cm@7.2V |
| No-Load Speed |
0.96s/360°@6V0.84s/360°@7.2V |
| Running Current (no load) |
400mA@6V500mA@7.2V |
| Stall Current |
2.7A@6V2.8A@7.2V |
| Idle Current |
4mA@6V5mA@7.2V |

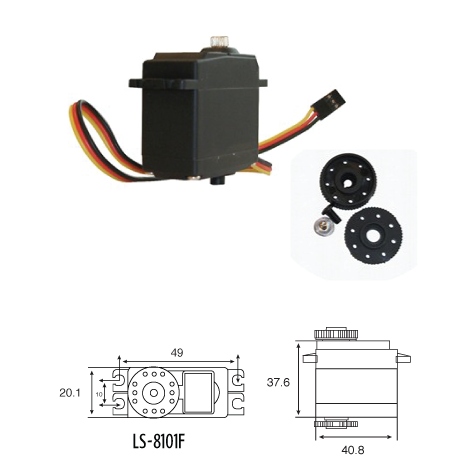

| Dimensions |
40.8mm×20.1mm×37.6mm |
| Gear Type |
Metal |
| Rotation Type |
Continuous360° |
Wire Connection:
| Wire Color |
Description |
| Black/Brown |
Ground (-) |
| Red |
Power (+) |
| Yellow/Orange |
Signal (PWM input) |
Applications:
- Drive motors for robotic wheels and tracked vehicles.
- Continuous rotation mechanisms in automation projects.
- Pan-tilt systems modified for full circling motion.
- Conveyor or turntable drives in prototypes.
- Interactive installations requiring perpetual movement.
- Educational robotics kits for PWM and motor control.
Package Include:

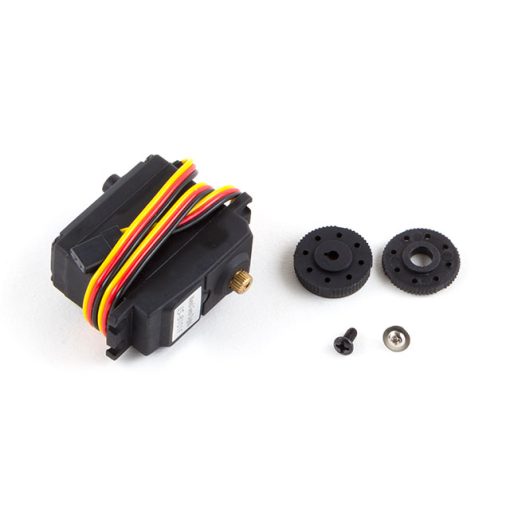

- 1x OSEPP LS-8101-F Metal Gear Digital Servo – 360.
- 1x Servo disc set .
- 1x Mounting hardware kit.
Documents:
