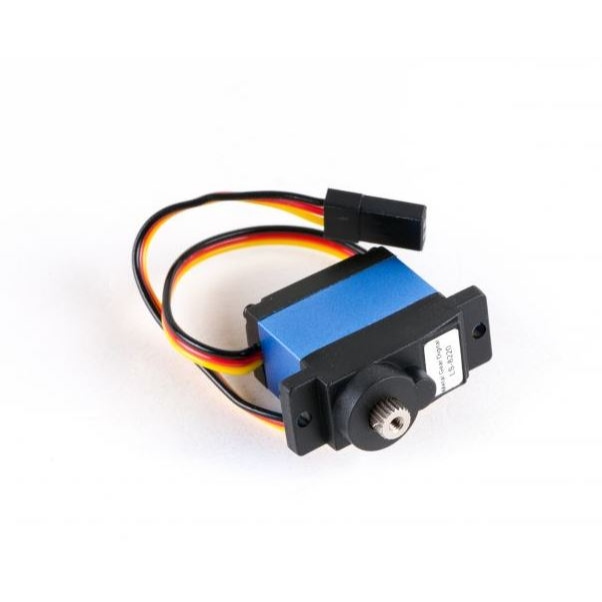

OSEPP LS-S8220 Metal Gear Digital Servo – 90
The OSEPP LS-S8220 Metal Gear Digital Servo – 90° is a high-performance, precision servo designed to provide smooth, accurate rotational movement for a wide range of robotics, automation, and mechanical systems. With its metal gear construction, the LS-S8220 is built to withstand higher torque loads and provide long-lasting durability, even under demanding conditions. This digital servo offers precise 90° movement control with high accuracy and reliability, making it ideal for applications that require exact positioning, such as robotic arms, camera mounts, and steering mechanisms. The servo’s fast response time and excellent holding power ensure consistent performance across a variety of tasks.
Features:
- Digital servo providing precise and accurate 90° rotation.
- Metal gear construction for enhanced durability and torque handling.
- Fast response time for high-performance applications.
- High holding power for stable, reliable performance.
- Ideal for robotics, RC vehicles, and automation systems requiring precise positioning.
- Easy integration with microcontrollers and robotics systems.
Specifications:
| Type | Digital |
| Weight | 13g |
| Size | 22.9*12*25.4mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 4.8~6.0Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (4.8V) | 0.12sec/60° at no load |
| Operating Speed (6.0V) | 0.10sec/60° at no load |
| Stall Torque (4.8V) | 1.2kg.cm |
| Stall Torque (6.0V) | 1.5kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| 360 Modifiable | No |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (4.8V) | 10mA/idle and120mA no load operating |
| Current Drain (5.0V) | 10mA/idle and 140mA no load operating |
| Stall Current | 900mA/1000mA |
| Dead Band Width | 4usec |
| Motor Type | 3 Pole Ferrite Drive |
| Horn gear spline | 21T |
| Gear Type | Metal |
| Connector Wire Length | 180mm |
Wire Configuration:
Black (-) Red (+) Yellow (signal) • Same as Hitec wire configuration
Applications:
- Robotics projects requiring precise 90° rotation.
- RC vehicles, robots, and steering systems.
- Automation systems needing accurate and repeatable movement.
- DIY electronics projects requiring precise servo motion.
- Educational kits for learning about motion control and servos.

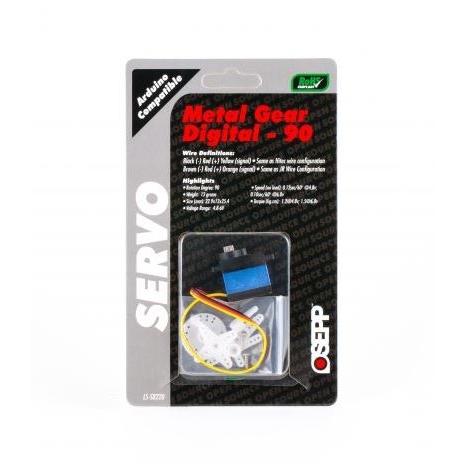

Package Include:
- 1x OSEPP LS-S8220 Metal Gear Digital Servo – 90.
- 1x Multi-shape servo horn kit (star, arm, and disc).
- 1x Mounting screw set.
