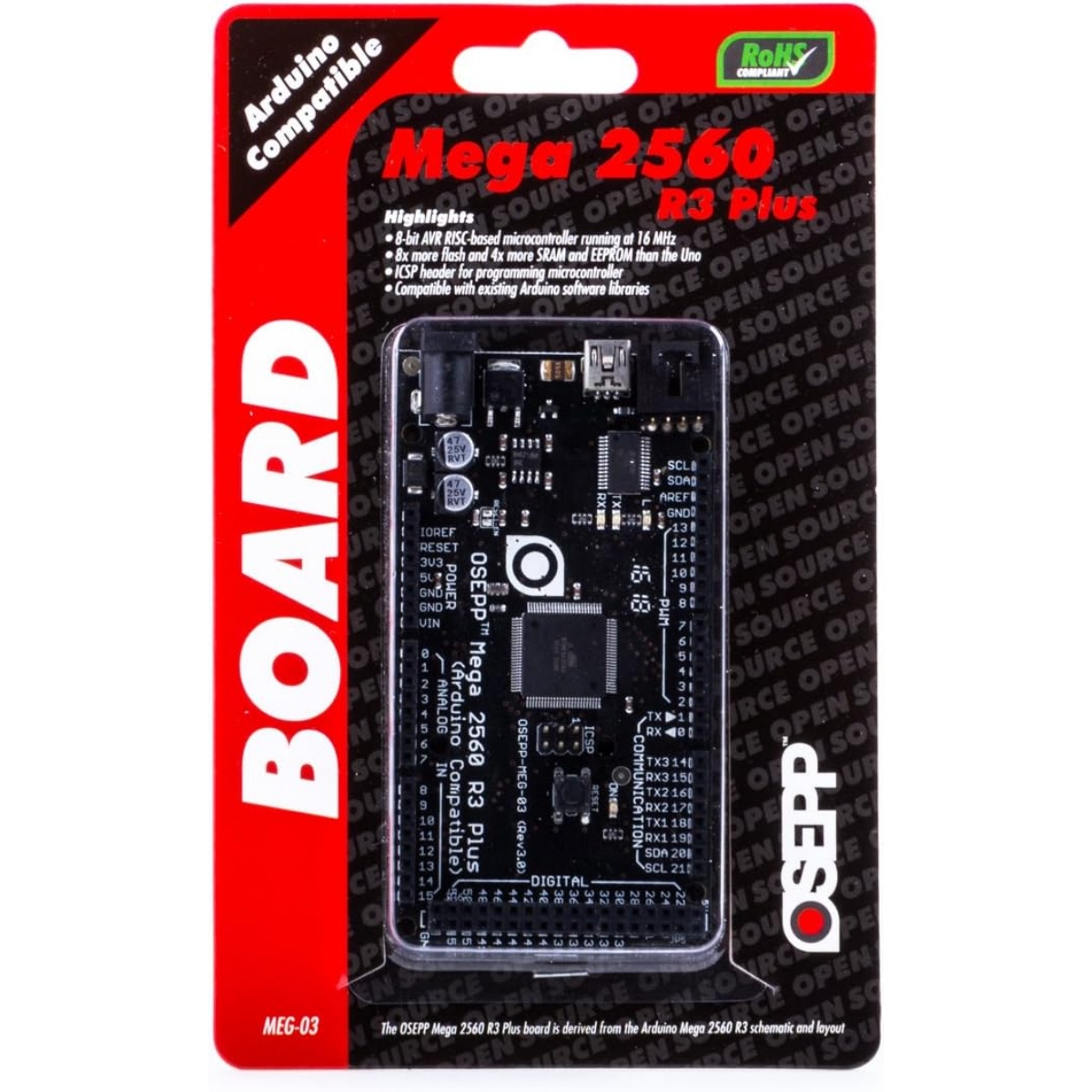

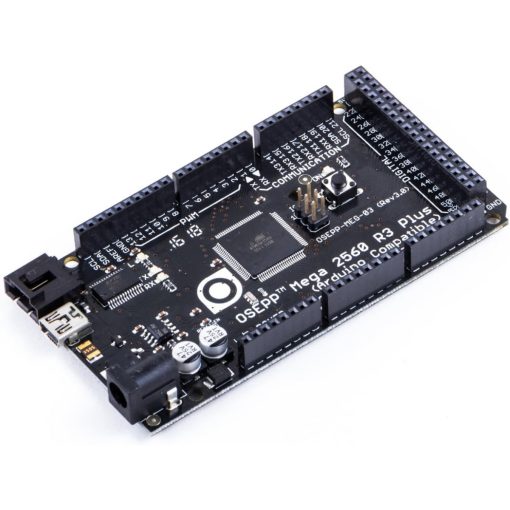

OSEPP MEG-03 Mega 2560 R3 Plus
The OSEPP MEG-03 Mega 2560 R3 Plus is a high-performance microcontroller board, designed to handle more complex projects that require additional I/O pins and greater memory. Based on the ATmega2560 microcontroller, this board offers a significant improvement over standard Arduino boards, providing 54 digital input/output pins, 16 analog inputs, and 4 UARTs for serial communication. The increased memory and expanded functionality make it an excellent choice for projects involving robotics, automation, and advanced sensor integration.
Features:
- ATmega2560 microcontroller for high-performance operation.
- 54 digital I/O pins, 16 analog inputs, and 4 UARTs for versatile project integration.
- USB interface for easy programming and communication.
- Large memory capacity, suitable for advanced applications.
- 8-bit AVR RISC-based microcontroller running at 16 MHz
- 8x more flash and 4x more SRAM and EEPROM than the Uno
- Connects to a computer via a standard USB cable
- Flexible power source (USB or DC power)
- ICSP header for programming microcontroller
- Compatible with existing Arduino software libraries
- Compatible with the Ethernet and Motor Controller Shields
Specifications:
| Microcontroller | ATmega2560 |
| Clock Speed | 16 MHz |
| Flash Memory | 256 KB |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Operating Voltage | 5 V |
| Input Voltage | 6-12 V |
| Digital I/O Pin Count | 54 (including 14 for PWM output) |
| Analog Input Pin Count | 16 |
| Other Connections | Mini-USB ICSP for ATmega2560 DC power connector 4-pin latchable Molex connector |
| Dimensions | 4.23 x 2.13 x 0.61 inches (107.5 x 54.0 x 15.5 mm) |
| Power Source | USB or external DC power supply |
Applications:
- Complex robotics projects involving multiple motors and sensors.
- Data acquisition systems for environmental monitoring with numerous analog inputs.
- Automation controllers for home or industrial IoT devices.
- Educational platforms teaching advanced microcontroller programming.
- Prototyping large-scale interactive installations with extensive I/O.
- Integration with shields for networking or motor control in DIY electronics.
Package Include:
1x OSEPP MEG-03 Mega 2560 R3 Plus.
